RACM16E-12SK/277

Recom AC/DC converters series RACM16E-K/277

AC/DC converters with a power output of 12 to 16W, with a low off-load power, and compatible with DC. These devices have a universal input, a closed frame, as well as they are protected against overload, overtemperature, and short circuit. They are suitable for medical technological application (2xMOPP), ITE, industry, as well as for the use in the normal household. Furthermore they comply with ANSI/AAMI ES 60601-1, EN 62368-1, EN 60335-1, EN 61558-1, EN 61558-2-16, EN 60601-1, EN55032 class B, EN 61204-3, and EN 60601-1-2. We offer the following types of this Recom series: RACM16E-3.3SK/277, RACM17E-05SK/277, RACM16E-12SK/277, RACM16E-15SK/277, RACM16E-24SK/277, and RACM16E-30SK/277

  • single output
  • output: 12 to 16W
  • input voltage: 85 to 305VAC (47 to 63Hz), 120 to 430V DC
  • operating temperature: -40 to +65 °C
  • isolation voltage (I/P-O/P): 4200V
  • contact termination: THT
  • dimension: 52,7x27,6x23mm
  • weight: 60g

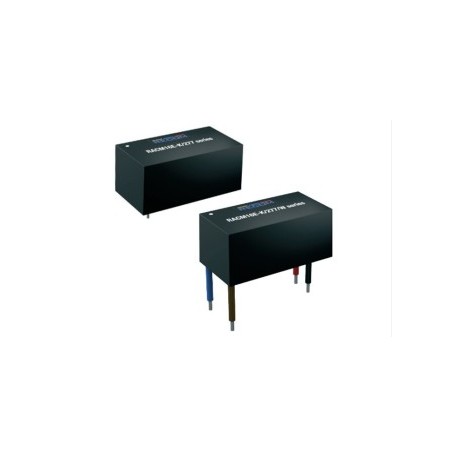

RACM16E-12SK/277, Recom AC/DC converters, 16W, for medical technology, RACM16E-K/277 series

RACM16E-12SK/277

246151 RACM16E-12SK/277 RACM16E-12SK/277 Recom AC/DC converters series RACM16E-K/277. AC/DC converters with a power output of 12 to 16W, with a low off-load power, and compatible with DC. These devices have a universal input, a closed frame, as well as they are protected against overload, overtemperature, and short circuit. They are suitable for medical technological application (2xMOPP), ITE, industry, as well as for the use in the normal household. Furthermore they comply with ANSI/AAMI ES 60601-1, EN 62368-1, EN 60335-1, EN 61558-1, EN 61558-2-16, EN 60601-1, EN55032 class B, EN 61204-3, and EN 60601-1-2. We offer the following types of this Recom series: RACM16E-3.3SK/277, RACM17E-05SK/277, RACM16E-12SK/277, RACM16E-15SK/277, RACM16E-24SK/277, and RACM16E-30SK/277 single output output: 12 to 16W input voltage: 85 to 305VAC (47 to 63Hz), 120 to 430V DC operating temperature: -40 to +65 °C isolation voltage (I/P-O/P): 4200V contact termination: THT dimension: 52,7x27,6x23mm weight: 60g

Specifications

manufacturer
Manufacturer's name RACM16E-12SK/277
Output voltage [V] 12
Efficiency [%] 84,5
Output current [A] 1,33
Output voltage tolerance: [%] 2
Output power [W] 16
Ripple [mVp-p] 150
Data Sheet

Unit price

11,09 €

Stock: 0
Next incoming goods:
CW 04/2025
29 units

Further delivery:
CW 10/2025
