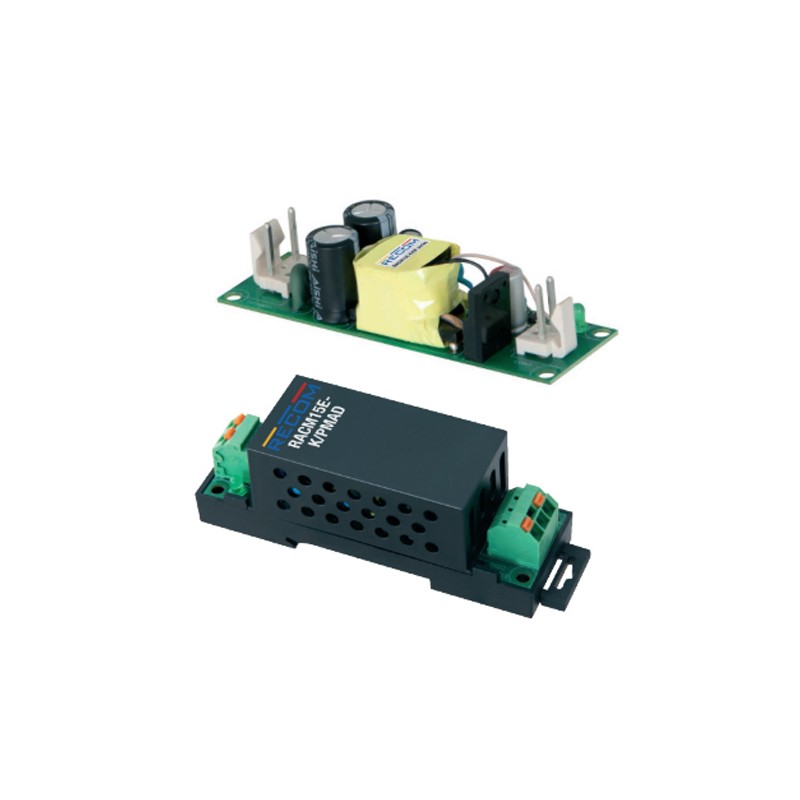

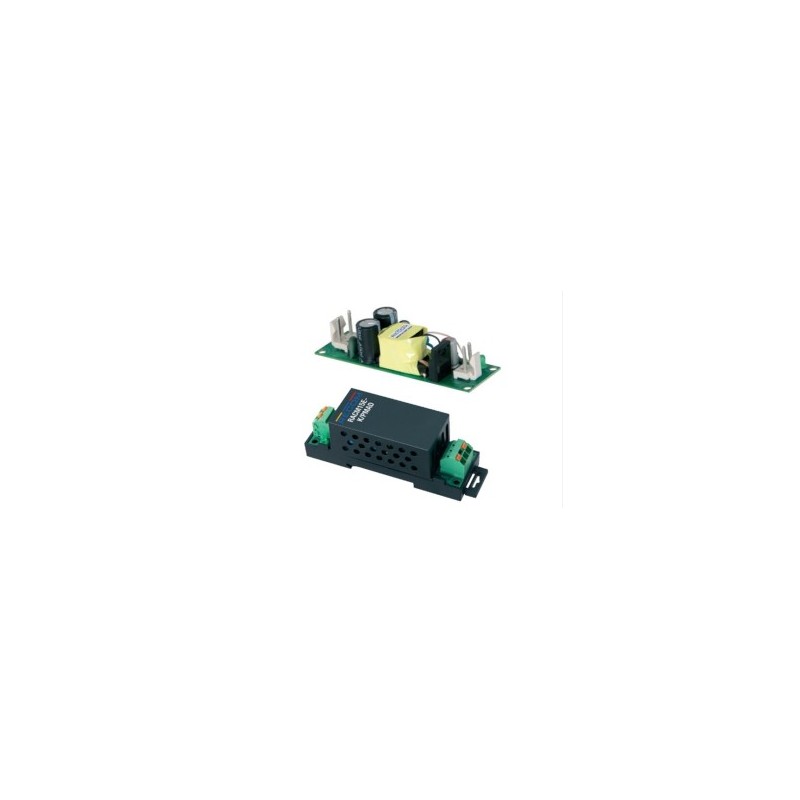

RACM15E-30SK/OF

Recom AC/DC converters of the RACM15E-K/OF series

AC/DC converters with a power output of 12 to 15W, a low off-load power, and compatible with DC. These devices have a universal input, a open frame, as well as they are protected against overload, overtemperature, and short circuit. They are suitable for medical technological application (2xMOPP), ITE, industry, as well as for the use in the normal household. Furthermore they comply with EN 61558-1, EN 61558-2, EN55032 class B, EN 61204-3, and EN 60601-1-2. We offer the following types of this Recom series: RACM15E-3.3SK/OF, RACM15E-05SK/OF, RACM15E-12SK/OF, RACM15E-15SK/OF, RACM15E-24SK/OF, and RACM15E-30SK/OF.

  • single output
  • output: 12 to 15W
  • input voltage: 80 to 275VAC (47 to 63Hz), 120 to 750V DC
  • operating temperature: -40 to +85 °C
  • isolation voltage (I/P-O/P): 4200V
  • contact termination: plug connection
  • dimension: 80x23x8x22mm
  • weight: 48g

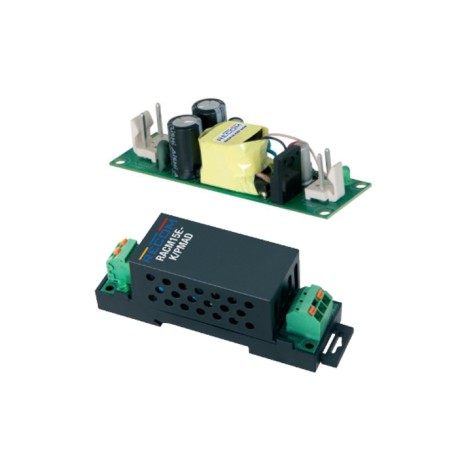

RACM15E-3.3SK/OF, Recom switching power supplies, 15W, for medical technology, open frame (PCB), RACM15E-K/OF series

RACM15E-30SK/OF

247190 RACM15E-30SK/OF RACM15E-30SK/OF Recom AC/DC converters of the RACM15E-K/OF series. AC/DC converters with a power output of 12 to 15W, a low off-load power, and compatible with DC. These devices have a universal input, a open frame, as well as they are protected against overload, overtemperature, and short circuit. They are suitable for medical technological application (2xMOPP), ITE, industry, as well as for the use in the normal household. Furthermore they comply with EN 61558-1, EN 61558-2, EN55032 class B, EN 61204-3, and EN 60601-1-2. We offer the following types of this Recom series: RACM15E-3.3SK/OF, RACM15E-05SK/OF, RACM15E-12SK/OF, RACM15E-15SK/OF, RACM15E-24SK/OF, and RACM15E-30SK/OF. single output output: 12 to 15W input voltage: 80 to 275VAC (47 to 63Hz), 120 to 750V DC operating temperature: -40 to +85 °C isolation voltage (I/P-O/P): 4200V contact termination: plug connection dimension: 80x23x8x22mm weight: 48g

Specifications

manufacturer
Manufacturer's name RACM15E-30SK/OF
Output voltage [V] 15
Efficiency [%] 86
Output current [A] 0,5
Output voltage tolerance: [%] ±2
Output power [W] 15
Ripple [mVp-p] 300
Data Sheet

Unit price

8,89 €

Stock: 0
Further delivery:
CW 03/2025

Minimum order quantity 18 units or
multiples of 18.
