RACM150-12S/F

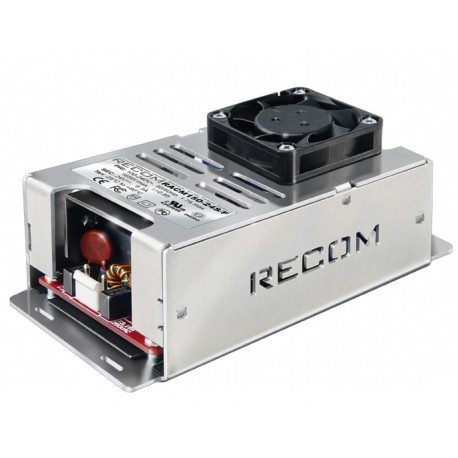

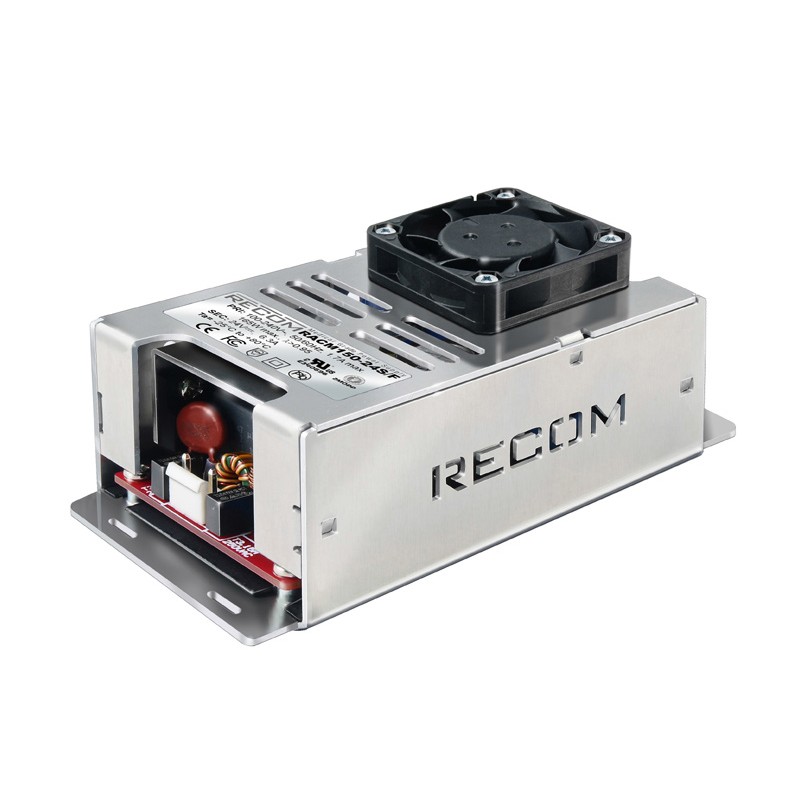

Recom power supply series RACM150

Switching power supplies in an enclosed metal housing with 150W, a low no-load power, a universal input and crimp connections. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for medical applications (2xMOPP) as well as for an operating altitude of up to 5000m and comply with EN60601-1 as well as EN55011. We offer the type RACM150-12S/F of this Recom series.

  • single output
  • output: 150W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <100µA
  • output voltage adjustment: ±10%
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -25 to +85°C
  • weight: 270g
Recom RACM150 series

RACM150-12S/F

105477 RACM150-12S/F RACM150-12S/F Recom power supply series&nbsp;RACM150. Switching power supplies in an enclosed metal housing with 150W, a low no-load&nbsp;power, a universal input and&nbsp;crimp&nbsp;connections.&nbsp;These devices&nbsp;have a built-in active PFC function and are&nbsp;protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for medical&nbsp;applications (2xMOPP) as well as for an operating altitude of up to 5000m and comply&nbsp;with&nbsp;EN60601-1 as well as EN55011. We offer the type&nbsp;RACM150-12S/F of this Recom series. single output output: 150W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 60A leakage current: &lt;100&micro;A output voltage adjustment:&nbsp;&plusmn;10% overload protection: 115 to 150% withstand voltage&nbsp;I/P-O/P: 4000V AC&nbsp; withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 1500V AC operating temperature: -25 to +85&deg;C weight: 270g

Specifications

manufacturer
Manufacturer's name RACM150-12S/F
Output voltage [V] 12
Efficiency [%] 91
Output current [A] 0...12,5
Output voltage tolerance: [%] ±1
Output power [W] 150
Ripple [mVp-p] 120
Data Sheet

Unit price

168,29 €

Stock: 10
Further delivery:
CW 12/2025
