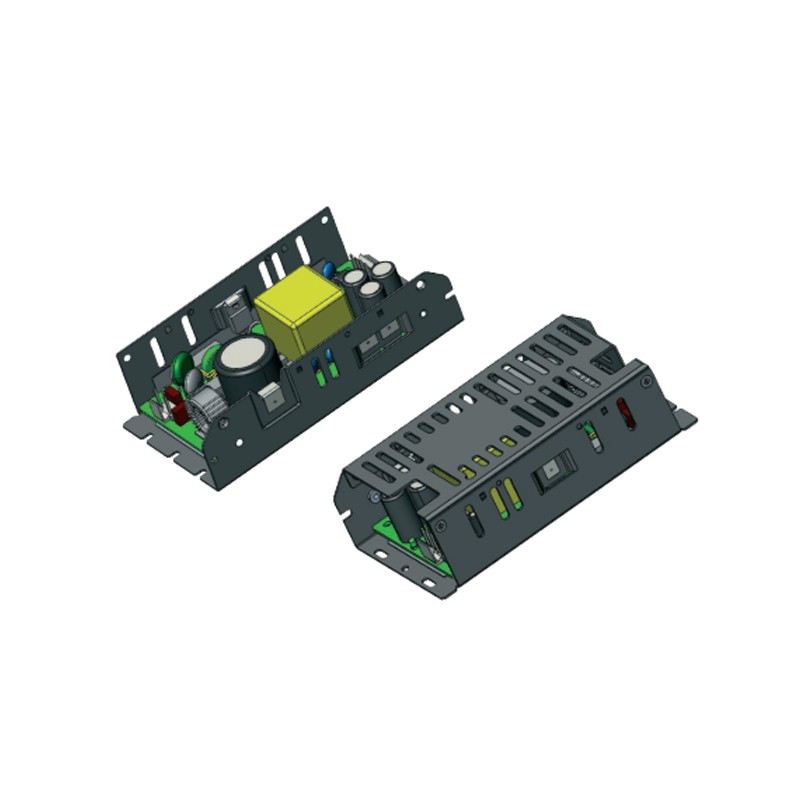

RACM140E-24SK/OF

Recom AC/DC converters series RACM140E-K

Voltage converters in a open frame type (RACM140E-_SK/OF) or a enclosed type (RACM140E-_SK/ENC), with 140W, an universal input, and a peak power of 210W for up to 10s. These devices are suitable for DC, they have a programmable output voltage, and they are protected against short circuit, overload, as well as overtemperature. They can be used in medical technology (2xMOPP), industry, ITE, and houshold, furthermore they conform with EN 60601-1-2, EN 61204-3, EN 55032 class B, EN 62368-1, EN 60601-1, EN 60335-1, EN 61558-2-16, and EN 61558-1. We offer the following types of this Recom series: RACM140E-12SK/OF, RACM140E-15SK/OF, RACM140E-24SK/OF, RACM140E-36SK/OF, RACM140E-48SK/OF, RACM140E-12SK/ENC, RACM140E-24SK/ENC, and RACM140E-48SK/ENC

  • single output
  • power: 140W
  • input voltage: 80 to 264V AC (47 to 63Hz), 120 to 370V DC
  • input inrush current: 60A
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +90°C
  • contact termination: plug connection
  • dimensions: 147x81,5x38mm (RACM140E-_SK/OF), 147x81,5x40 (RACM140E-_SK/ENC)
  • weight: 311g (RACM140E-_SK/OF), 348g (RACM140E-_SK/ENC)

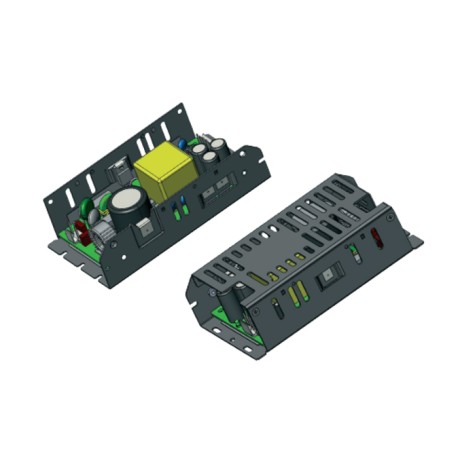

RACM140E-24SK/OF, Recom AC/DC converters, 140W, open frame and enclosed, for medical technology, RACM140E-K series

RACM140E-24SK/OF

246987 RACM140E-24SK/OF RACM140E-24SK/OF Recom AC/DC converters series RACM140E-K. Voltage converters in a open frame type (RACM140E-_SK/OF) or a enclosed type (RACM140E-_SK/ENC), with 140W, an universal input, and a peak power of 210W for up to 10s. These devices are suitable for DC, they have a programmable output voltage, and they are protected against short circuit, overload, as well as overtemperature. They can be used in medical technology (2xMOPP), industry, ITE, and houshold, furthermore they conform with EN 60601-1-2, EN 61204-3, EN 55032 class B, EN 62368-1, EN 60601-1, EN 60335-1, EN 61558-2-16, and EN 61558-1. We offer the following types of this Recom series: RACM140E-12SK/OF, RACM140E-15SK/OF, RACM140E-24SK/OF, RACM140E-36SK/OF, RACM140E-48SK/OF, RACM140E-12SK/ENC, RACM140E-24SK/ENC, and RACM140E-48SK/ENC single output power: 140W input voltage: 80 to 264V AC (47 to 63Hz), 120 to 370V DC input inrush current: 60A withstand voltage I/P-O/P: 4000V AC operating temperature: -40 to +90°C contact termination: plug connection dimensions: 147x81,5x38mm (RACM140E-_SK/OF), 147x81,5x40 (RACM140E-_SK/ENC) weight: 311g (RACM140E-_SK/OF), 348g (RACM140E-_SK/ENC)

Specifications

manufacturer
Manufacturer's name RACM140E-24SK/OF
Output voltage [V] 24
Efficiency [%] 88
Output current [A] 5,8
Output voltage tolerance: [%] ±2
Output power [W] 140
Ripple [mVp-p] 240
Data Sheet

Unit price

36,49 €

Stock: 5
Further delivery:
CW 16/2025
