RACM130E-15SK/OF

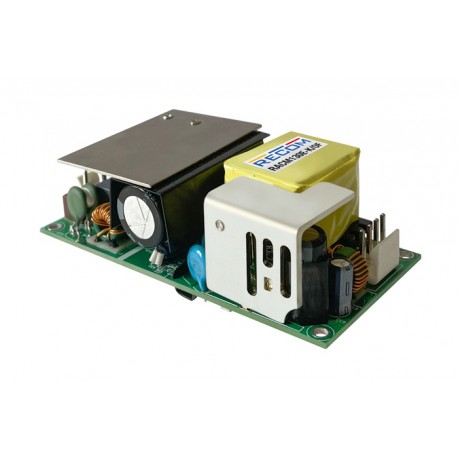

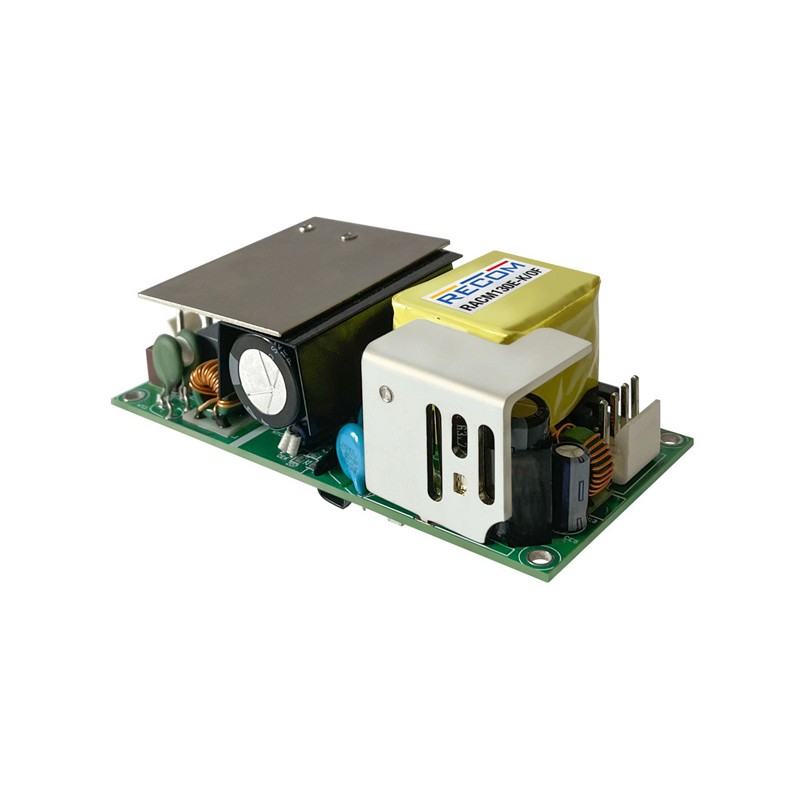

Recom AC/DC converter series RACM130E-K

Open frame type switching power supplies with 130W and a universal input. These devices have a built-in EMC filter and are protected against overvoltage, short circuit as well as overload. They are suitable for medical technology applications (2xMOPP) and comply with EN55032 class B as well as EN55035. We offer the following types of this Recom series: RACM130E-12SK/OF, RACM130E-15SK/OF, RACM130E-24SK/OF, RACM130E-36SK/OF and RACM130E-48SK/OF.

  • single output
  • output: 130W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 60A
  • overload protection: 120 to 180%
  • withstand voltage: 4000V AC
  • operating temperature: -40 to +90°C
  • dimensions: 101,6x50,8x32mm
  • weight: 200g

Metal housing types

RACM130E-15SK/OF, Recom AC/DC converters, 130W, for medical technology, RACM130E-K series

RACM130E-15SK/OF

242068 RACM130E-15SK/OF RACM130E-15SK/OF Recom AC/DC converter series RACM130E-K. Open frame type switching power supplies with 130W and a universal input. These devices have a built-in EMC filter and are protected against overvoltage, short circuit as well as overload. They are suitable for medical technology applications (2xMOPP) and comply with EN55032 class B as well as EN55035. We offer the following types of this Recom series: RACM130E-12SK/OF, RACM130E-15SK/OF, RACM130E-24SK/OF, RACM130E-36SK/OF and RACM130E-48SK/OF. single output output: 130W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 60A overload protection: 120 to 180% withstand voltage: 4000V AC operating temperature: -40 to +90°C dimensions: 101,6x50,8x32mm weight: 200g Metal housing types

Specifications

manufacturer
Manufacturer's name RACM130E-15SK/OF
Output voltage [V] 15
Efficiency [%] 88
Output current [A] 8,66
Output voltage tolerance: [%] ±2
Output power [W] 130
Ripple [mVp-p] 150
Data Sheet

Unit price

34,19 €

Stock: 8
Further delivery:
CW 09/2025
