RACM1200-24SAV/ENC

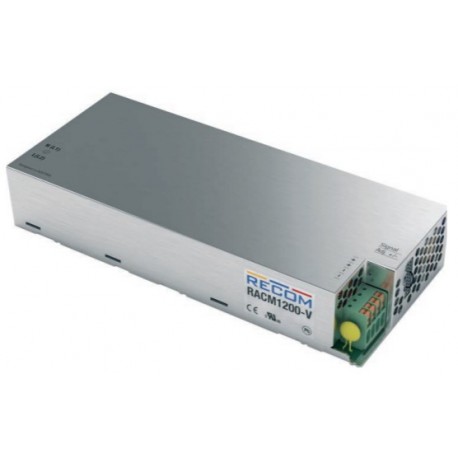

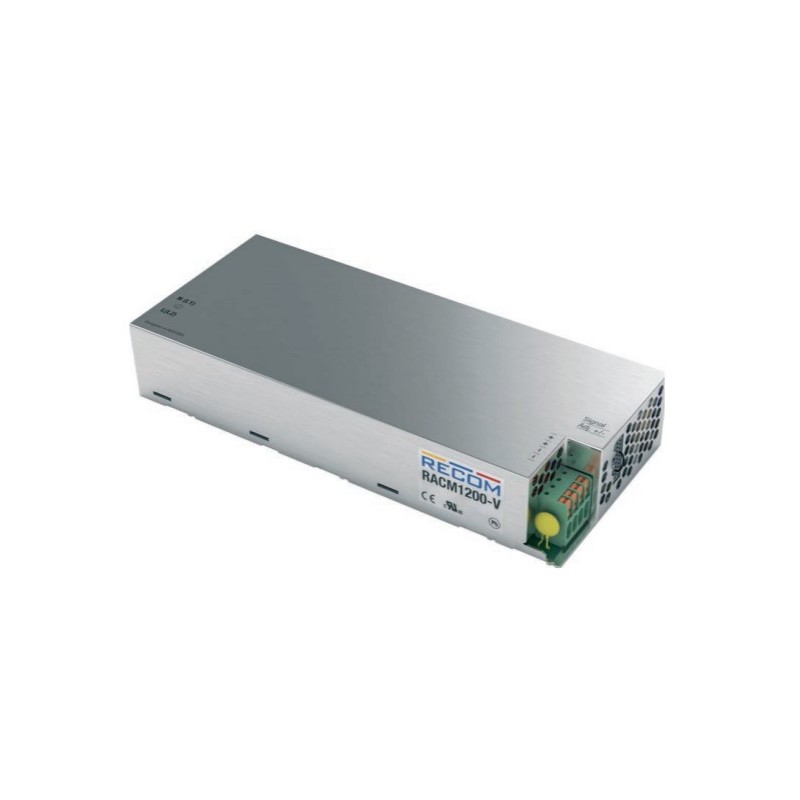

Recom AC/DC converter series RACM1200-V

AC/DC converters in a 9x3,8" housing with 1200W (peak power), a universal input, an adjustable output voltage and a fanless design. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, short circuit as well as overvoltage. They have a remote function and comply with IEC62368-1, EN62368-1, UL62368-1, IEC60601-1, EN60601-1, IEC61558-1, EN61558-1, IEC60601-1-2, EN60601-1-2, EN55011 class B as well as EN55032 class B. We offer the following types of this Recom series: RACM1200-24SAV/ENC and RACM1200-48SAV/ENC.

  • single output
  • output: 1200W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • input current: 14A
  • maximal input inrush current: 25A
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +70°C
  • dimensions: 228x96,2x40mm
  • weight: 1000g
RACM1200-24SAV/ENC, Recom AC/DC converters, 1200W, RACM1200-V series

RACM1200-24SAV/ENC

237766 RACM1200-24SAV/ENC RACM1200-24SAV/ENC Recom AC/DC converter series RACM1200-V. AC/DC converters in a 9x3,8" housing with 1200W (peak power), a universal input, an adjustable output voltage and a fanless design. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, short circuit as well as overvoltage. They have a remote function and comply with IEC62368-1, EN62368-1, UL62368-1, IEC60601-1, EN60601-1, IEC61558-1, EN61558-1, IEC60601-1-2, EN60601-1-2, EN55011 class B as well as EN55032 class B. We offer the following types of this Recom series: RACM1200-24SAV/ENC and RACM1200-48SAV/ENC. single output output: 1200W input voltage: 80 to 264V AC (47 to 63Hz) input current: 14A maximal input inrush current: 25A withstand voltage I/P-O/P: 4000V AC operating temperature: -40 to +70°C dimensions: 228x96,2x40mm weight: 1000g

Specifications

manufacturer
Manufacturer's name RACM1200-24SAV/ENC
Output voltage [V] 24
Efficiency [%] 95
Output current [A] 50
Data Sheet

Unit price

471,69 €

Stock: 6
Further delivery:
CW 08/2025
