RACD20-350-LP

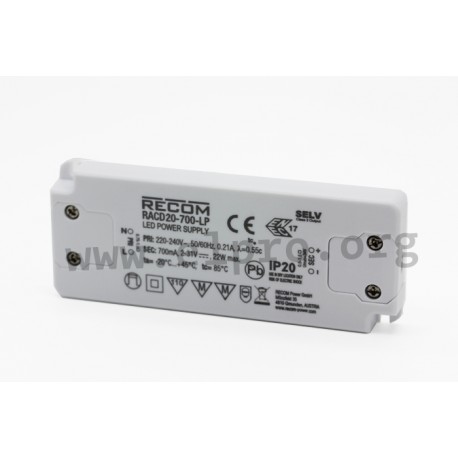

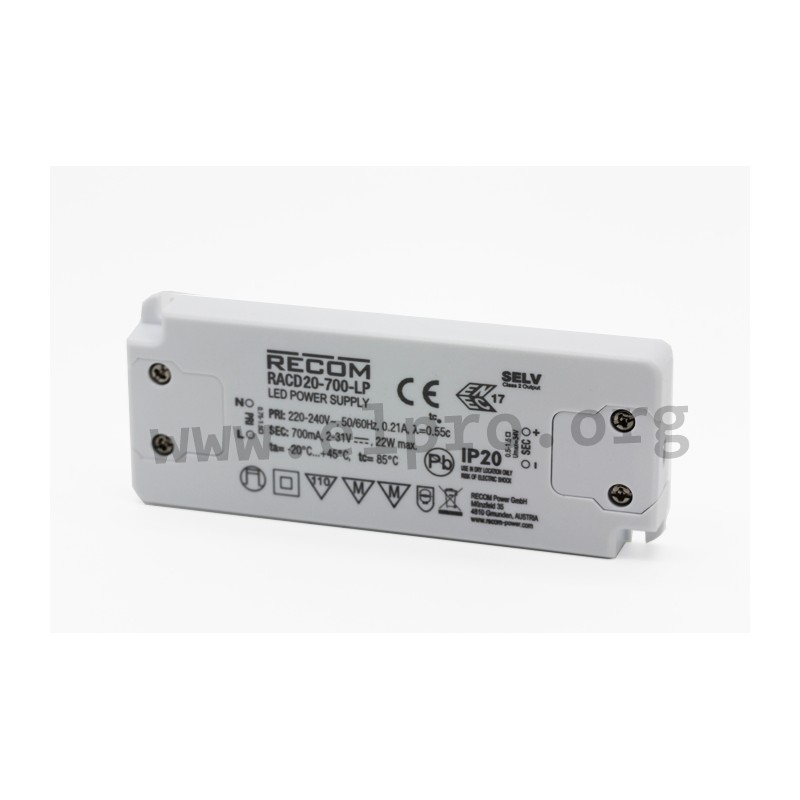

Recom LED driver series RACD20-LP

LED drivers in a plastic housing (IP20) with 20W, a constant current, a low profile (13mm) and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACD20-350-LP, RACD20-500-LP and RACD20-700-LP.

  • single output
  • output: 20 to 22W
  • input voltage: 198 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 8A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +45°C
  • dimensions: 128x50x13mm
  • weight: 75g
RACD20-_-LP series

RACD20-350-LP

109101 RACD20-350-LP RACD20-350-LP Recom LED driver series RACD20-LP. LED drivers in a plastic housing (IP20) with 20W, a constant current, a low profile (13mm) and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with&nbsp;EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series:&nbsp;RACD20-350-LP, RACD20-500-LP and RACD20-700-LP. single output output: 20 to 22W input voltage: 198 to 264V AC (47 to 63Hz) maximal input inrush current: 8A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +45&deg;C dimensions: 128x50x13mm weight: 75g

Specifications

manufacturer
Manufacturer's name RACD20-350-LP
Output voltage [V] 2...59
Ripple [mAp-p] 0,05
Efficiency [%] 86
Output power [W] 21
Output current [mA] 350
Data Sheet

Unit price

15,99 €

Stock: 47
Further delivery:
CW 18/2025
