RACD12-350-LP

Recom LED driver series RACD12-LP

LED drivers in a plastic housing (IP20) with 12W, a constant current, a low profile (13mm) and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1, EN61347-2-13, IEC-61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACD12-350-LP, RACD12-500-LP and RACD12-700-LP.

  • single output
  • output: 12 to 13W
  • input voltage: 198 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 8A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 128x50x13mm
  • weight: 70g

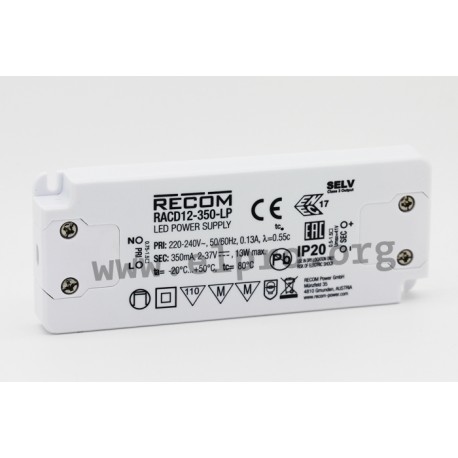

RACD12-350-LP, Recom, Recom LED switching power supplies, 12W, IP20, constant current, RACD12-LP series

RACD12-350-LP

109097 RACD12-350-LP RACD12-350-LP Recom LED driver series RACD12-LP. LED drivers in a plastic housing (IP20) with 12W, a constant current, a low profile (13mm) and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with&nbsp;EN55015, EN61347-1, EN61347-2-13, IEC-61347-1 as well as IEC61347-2-13. We offer the following types of this&nbsp;Recom series:&nbsp;RACD12-350-LP, RACD12-500-LP and RACD12-700-LP. single output output: 12 to 13W input voltage: 198 to 264V AC (47 to 63Hz) maximal input inrush current: 8A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature:&nbsp;-20 to +50&deg;C dimensions: 128x50x13mm weight: 70g

Specifications

manufacturer
Manufacturer's name RACD12-350-LP
Output voltage [V] 2...37
Ripple [mAp-p] 0,05
Efficiency [%] 86
Output power [W] 13
Output current [mA] 350
Data Sheet

Unit price

14,29 €

Stock: 131
Further delivery:
CW 13/2025
