RACD07-700

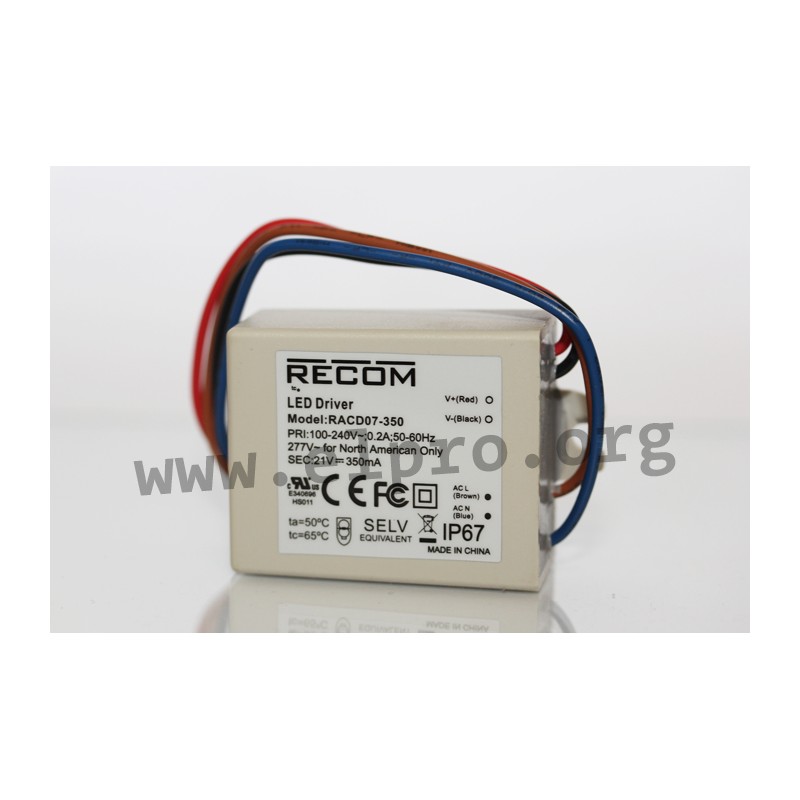

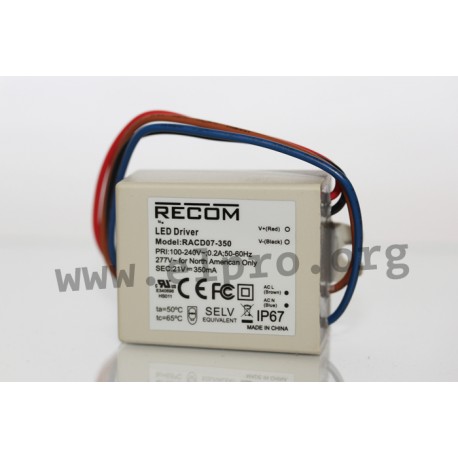

Recom LED driver series RACD07

LED drivers in a plastic housing (IP67) with 7W, a constant current, protection class II and a universal input. These devices are suitable for LED lighting applications and are protected against overload (through current limiting), overvoltage as well as short circuit. They are not dimmable and comply with UL8750, UL1310, EN55015, EN61347-1, EN61347-2-13, IEC61347-2-13 as well as IEC61347-1. We offer the following types of this Recom series: RACD07-350 and RACD07-700.

  • single output
  • output: 7W
  • input voltage: 90 to 295V AC (47 to 63Hz)
  • overload protection: 105 to 120%
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +40°C
  • dimensions: 57x40,8x24mm
  • weight: 74g

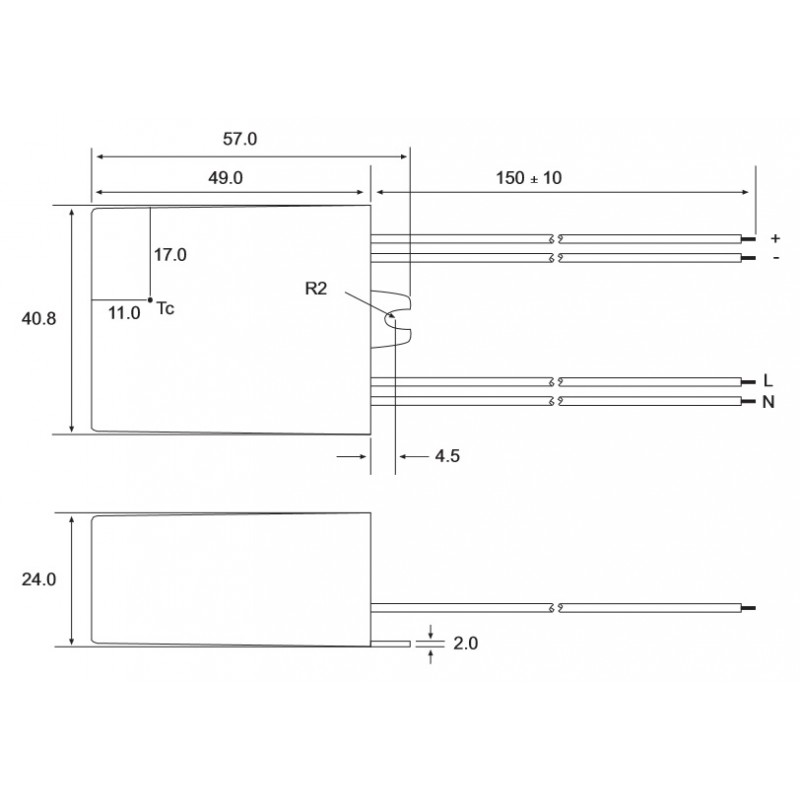

dimensions

RACD07-700

43737 RACD07-700 RACD07-700 Recom LED driver series RACD07. LED drivers in a plastic housing (IP67) with 7W, a constant current, protection class II and a universal input. These devices are suitable for LED lighting applications and are protected against overload (through current limiting), overvoltage as well as short circuit. They are not dimmable and comply with&nbsp;UL8750, UL1310, EN55015, EN61347-1, EN61347-2-13, IEC61347-2-13 as well as IEC61347-1. We offer the following types of this Recom series:&nbsp;RACD07-350 and RACD07-700. single output output: 7W input voltage: 90 to 295V AC (47 to 63Hz) overload protection: 105 to 120% no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +40&deg;C dimensions: 57x40,8x24mm weight: 74g

Specifications

manufacturer
Manufacturer's name RACD07-700
Output voltage [V] 11...3
Phase 2 phase
Output current range [mA] 700
Output current tolerance [%] 3
Efficiency [%] 70
Output power [W] 7
Ripple [mVp-p] 30
Data Sheet

Unit price

15,39 €

Stock: 33
Further delivery:
CW 10/2025
