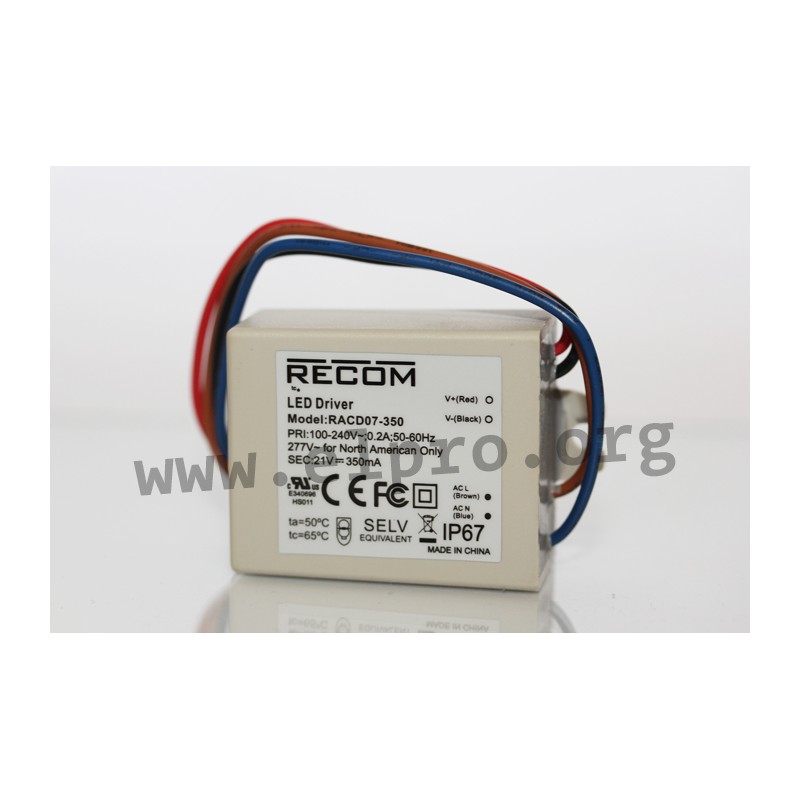

RACD07-350

Recom LED driver series RACD07

LED drivers in a plastic housing (IP67) with 7W, a constant current, protection class II and a universal input. These devices are suitable for LED lighting applications and are protected against overload (through current limiting), overvoltage as well as short circuit. They are not dimmable and comply with UL8750, UL1310, EN55015, EN61347-1, EN61347-2-13, IEC61347-2-13 as well as IEC61347-1. We offer the following types of this Recom series: RACD07-350 and RACD07-700.

  • single output
  • output: 7W
  • input voltage: 90 to 295V AC (47 to 63Hz)
  • overload protection: 105 to 120%
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +40°C

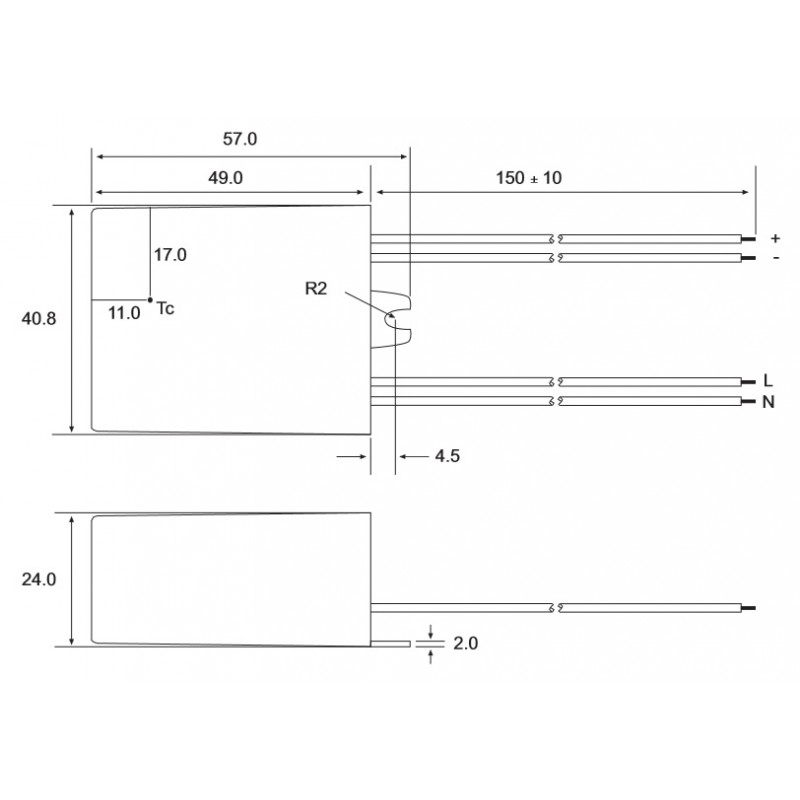

  • dimensions: 57x40,8x24mm
  • weight: 74g
series RACD07 by Recom

RACD07-350

43736 RACD07-350 RACD07-350 Recom LED driver series RACD07. LED drivers in a plastic housing (IP67) with 7W, a constant current, protection class II and a universal input. These devices are suitable for LED lighting applications and are protected against overload (through current limiting), overvoltage as well as short circuit. They are not dimmable and comply with UL8750, UL1310, EN55015, EN61347-1, EN61347-2-13, IEC61347-2-13 as well as IEC61347-1. We offer the following types of this Recom series: RACD07-350 and RACD07-700. single output output: 7W input voltage: 90 to 295V AC (47 to 63Hz) overload protection: 105 to 120% no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +40°C dimensions: 57x40,8x24mm weight: 74g

Specifications

manufacturer
Manufacturer's name RACD07-350
Output voltage [V] 21...10
Phase 2 phase
Output current range [mA] 350
Output current tolerance [%] 3
Efficiency [%] 70
Output power [W] 7
Ripple [mVp-p] 30
Data Sheet

Unit price

15,39 €

Stock: 41
Further delivery:
CW 10/2025
