RACD06-350-LP

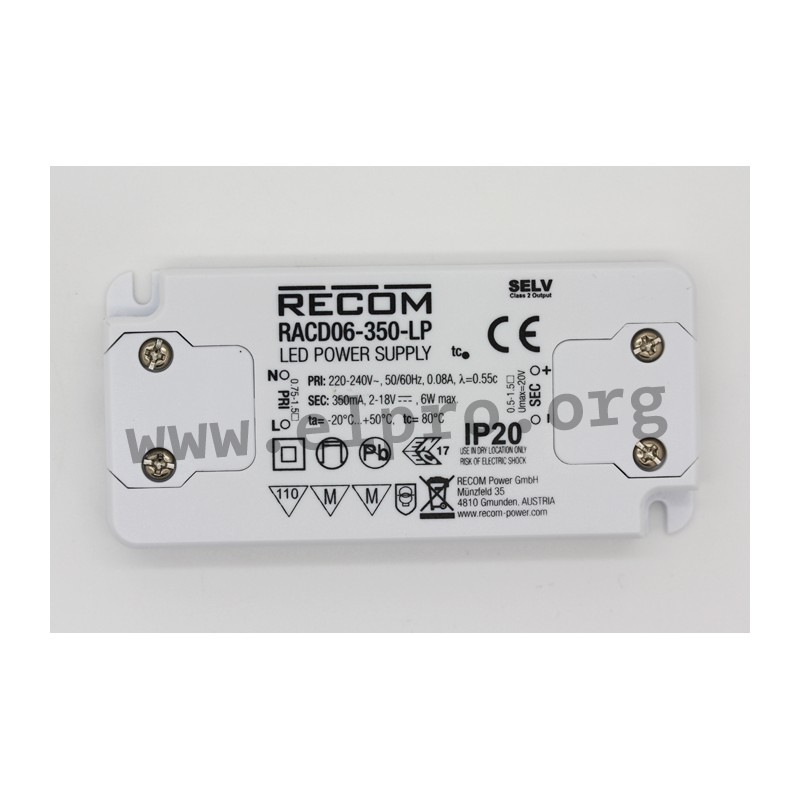

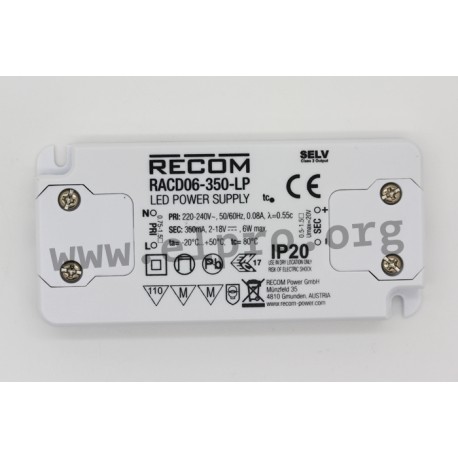

Recom LED driver series RACD06-LP

LED drivers in a plastic housing (IP20) with 6W, a constant current, a universal input and a low profile (11mm). These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACD06-350-LP, RACD06-500-LP and RACD06-700-LP.

  • single output
  • output: 6W
  • input voltage: 198 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 11A
  • no-load power: <0,4W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 98x46x11mm
  • weight: 45g
RACD06-350-LP

RACD06-350-LP

109093 RACD06-350-LP RACD06-350-LP Recom LED driver series RACD06-LP. LED drivers in a plastic housing (IP20) with 6W, a constant current, a universal input and a low profile (11mm). These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with&nbsp;EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series:&nbsp;RACD06-350-LP, RACD06-500-LP and RACD06-700-LP. single output output: 6W input voltage: 198 to 264V AC (47 to 63Hz) maximal input inrush current: 11A no-load power: &lt;0,4W withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +50&deg;C dimensions: 98x46x11mm weight: 45g

Specifications

manufacturer
Manufacturer's name RACD06-350-LP
Output voltage [V] 2...18
Ripple [mAp-p] 50
Efficiency [%] 77
Output power [W] 6
Output current [mA] 350
Data Sheet

Unit price

11,39 €

Stock: 43
Further delivery:
CW 13/2025
