> Power supplies>Power supplies>Switching power supplies for illumination, LED>Recom LED drivers, 4W, IP65, constant current, RACD04 series>RACD04-700

Manufacturers

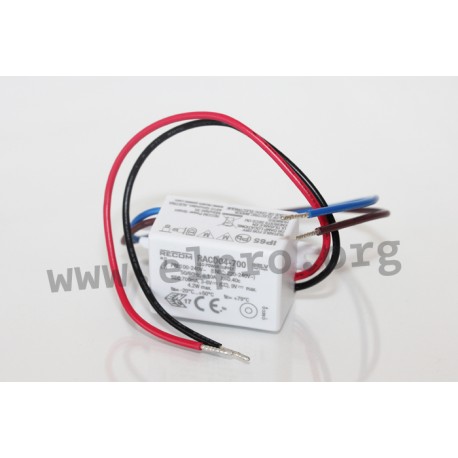

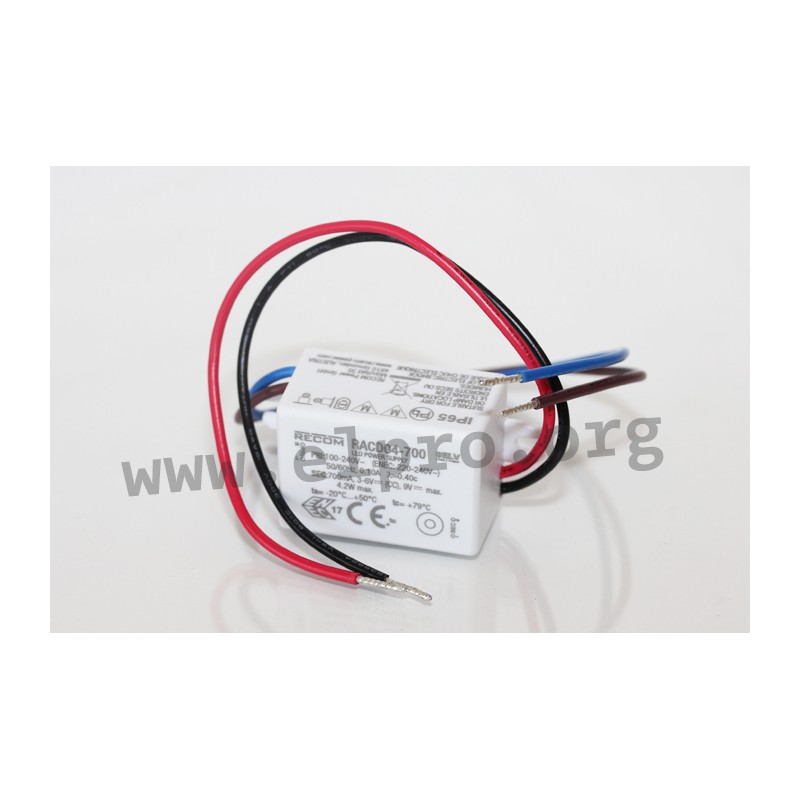

RACD04-700

Recom LED driver series RACD04

LED drivers in a plastic housing (IP65) with 4W, a constant current and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with EN55015, UL8750, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACD04-350, RACD04-500 and RACD04-700.

  • single output
  • output: 4 to 4,2W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 10A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 38x27x21mm
  • weight: 40g
RACD04-700

RACD04-700

109049 RACD04-700 RACD04-700 Recom LED driver series RACD04. LED drivers in a plastic housing (IP65) with 4W, a constant current and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with&nbsp;EN55015, UL8750, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13.&nbsp;We offer the following types of this Recom series:&nbsp;RACD04-350, RACD04-500 and RACD04-700. single output output: 4 to 4,2W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 10A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +50&deg;C dimensions: 38x27x21mm weight: 40g

Specifications

manufacturer
Manufacturer's name RACD04-700
Output voltage [V] 3...6
Ripple [mAp-p] 0,09
Efficiency [%] 72
Output power [W] 4,2
Output current [mA] 700
Data Sheet

Unit price

7,89 €

Stock: 32
Further delivery:
CW 10/2025
