RACD04-350

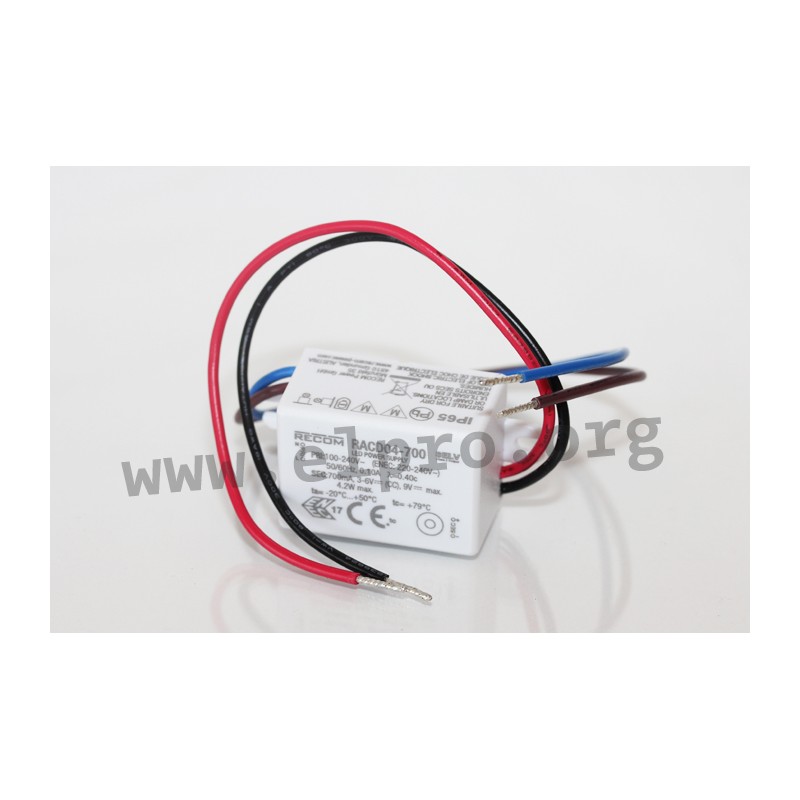

Recom LED driver series RACD04

LED drivers in a plastic housing (IP65) with 4W, a constant current and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with EN55015, UL8750, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACD04-350, RACD04-500 and RACD04-700.

  • single output
  • output: 4 to 4,2W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 10A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 38x27x21mm
  • weight: 40g

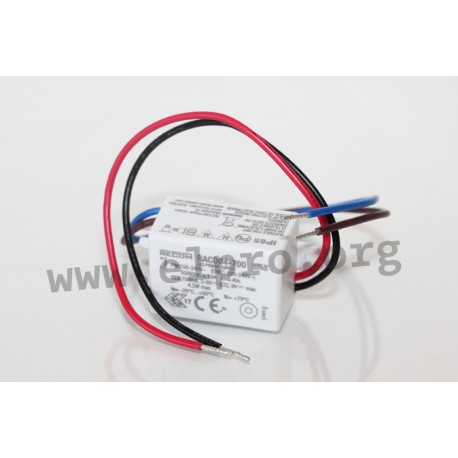

LED-switching power supplies series RACD04

RACD04-350

109047 RACD04-350 RACD04-350 Recom LED driver series RACD04. LED drivers in a plastic housing (IP65) with 4W, a constant current and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with&nbsp;EN55015, UL8750, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13.&nbsp;We offer the following types of this Recom series:&nbsp;RACD04-350, RACD04-500 and RACD04-700. single output output: 4 to 4,2W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 10A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +50&deg;C dimensions: 38x27x21mm weight: 40g

Specifications

manufacturer
Manufacturer's name RACD04-350
Output voltage [V] 3...12
Ripple [mAp-p] 0,08
Efficiency [%] 77
Output power [W] 4,2
Output current [mA] 350
Data Sheet

Unit price

7,89 €

Stock: 1093
Further delivery:
CW 05/2025
