RAC60-15S/OF

Recom power supply series RAC60

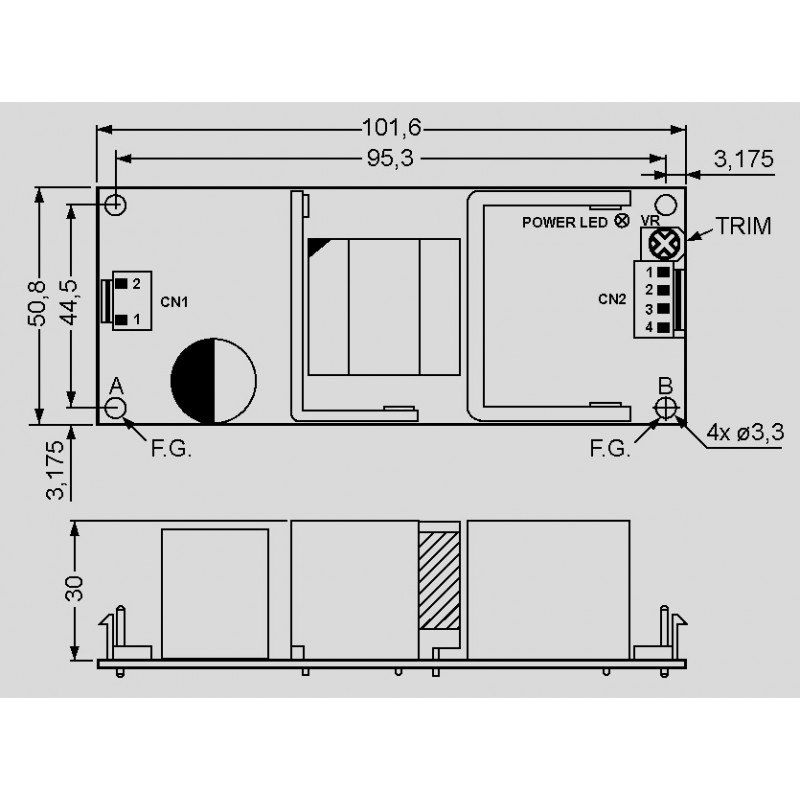

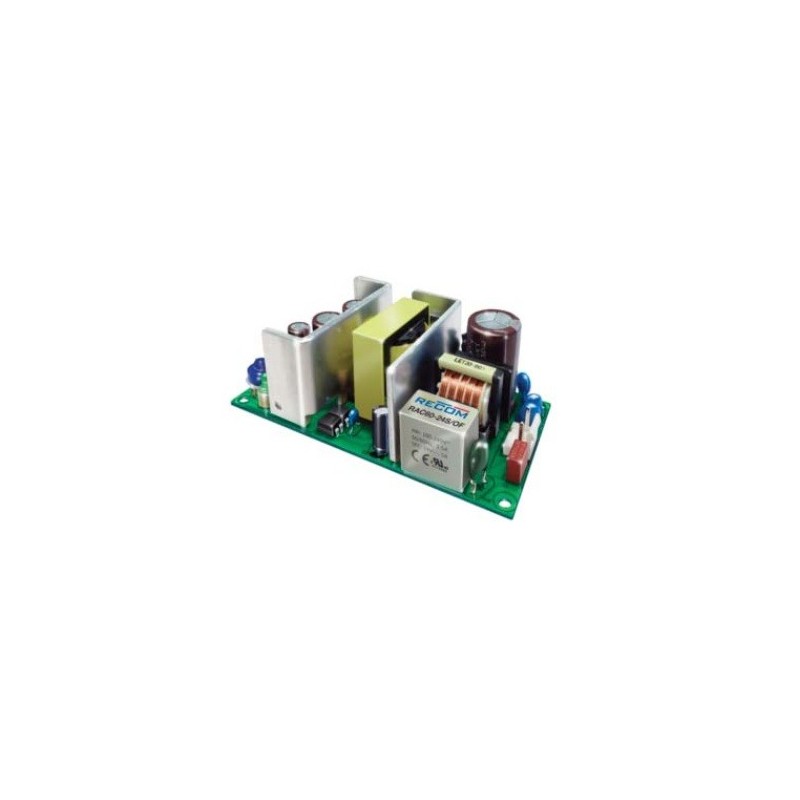

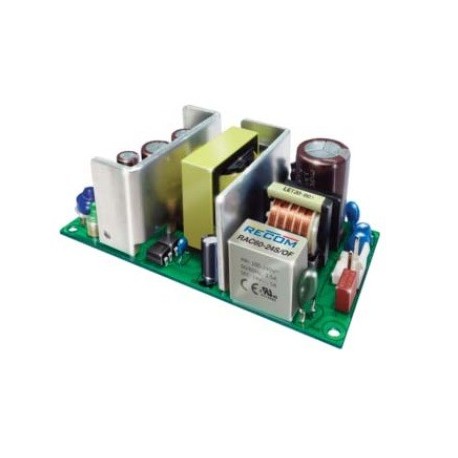

AC/DC converter modules in a compact 4"x2" housing (open frame) with 60W, a universal input, a low no-load power and a pin strip connection for nylon crimp terminals. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL/EN60950-1, EN55032 as well as EN55024. We offer the following types of this Recom series: RAC60-12S/OF and RAC60-15S/OF.

  • single output
  • output: 60W
  • input voltage: 90 to 265V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +50°C
  • weight: 145g
RAC60-15S/OF

RAC60-15S/OF

46309 RAC60-15S/OF RAC60-15S/OF Recom power supply series RAC60. AC/DC converter&nbsp;modules in a compact 4"x2" housing (open frame) with 60W, a universal input, a low no-load power and a pin strip connection for nylon crimp terminals. These devices are&nbsp;protected against overload (auto recovery), overvoltage as well as short circuit and&nbsp;comply with&nbsp;UL/EN60950-1, EN55032 as well as EN55024. We offer the&nbsp;following types of this Recom series:&nbsp;RAC60-12S/OF and RAC60-15S/OF. single output output: 60W input voltage: 90 to 265V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A leakage current: &lt;0,75mA overload protection: 115 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +50&deg;C weight: 145g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name RAC60-15S/OF
Output voltage [V] 15
Efficiency [%] 84
Output current range [A] 0...4
Output voltage tolerance: [%] 2
Output power [W] 60
Ripple [mVp-p] 150
Data Sheet

Unit price

26,09 €

Stock: 30
