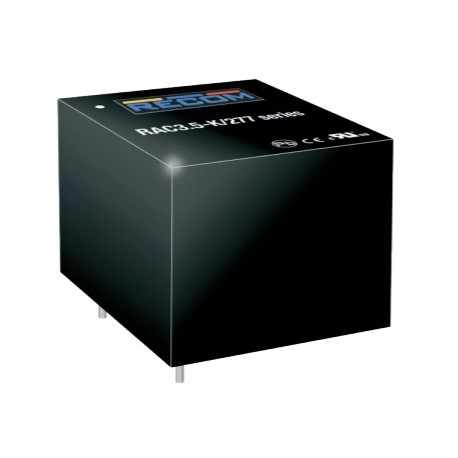

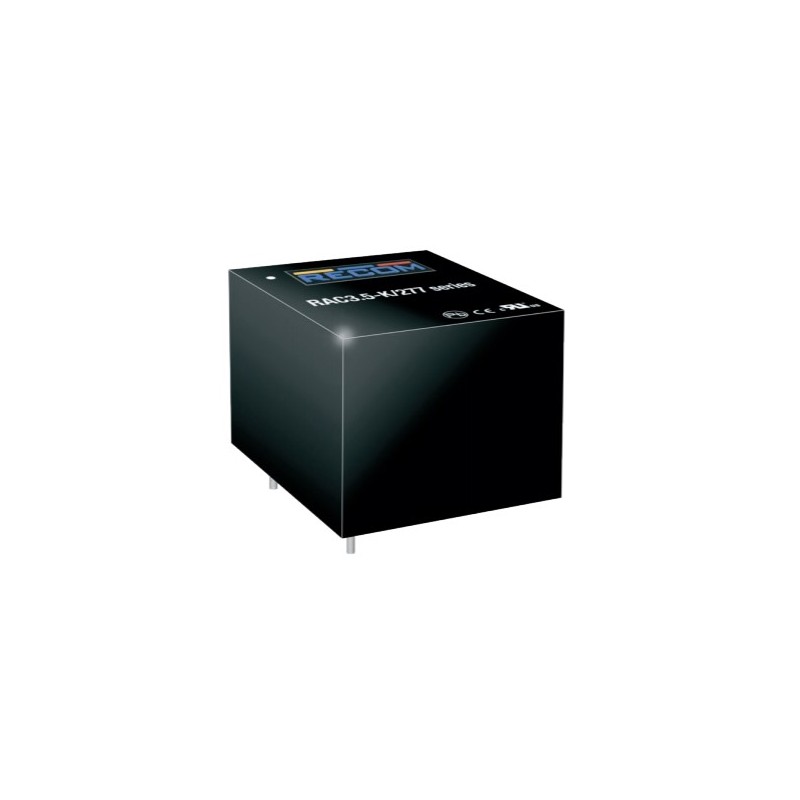

RAC3.5-05SK/277

Recom AC/DC converter series RAC3.5-K/277

AC/DC converter modules in a plastic case with 3,5W, a universal input and a low no-load power consumption. These devices are suitable for PCB mounting and are protected against short circuit. We offer the following types of this Recom series: RAC3.5-3.3SK/277, RAC3.5-05SK/277, RAC3.5-12SK/277, RAC3.5-15SK/277 and RAC3.5-24SK/277.

  • single output
  • output: 3,5W
  • input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC
  • maximal input inrush current: 30A
  • withstand voltage I/P-O/P: 3000V AC / 1min
  • operating temperature: -40 to +70°C
  • weight: 31,5g
RAC3.5-05SK/277, Recom converter modules, 3,5W, on board type, RAC3.5-K/277 series

RAC3.5-05SK/277

126874 RAC3.5-05SK/277 RAC3.5-05SK/277 Recom AC/DC converter series RAC3.5-K/277. AC/DC converter modules in a plastic case with 3,5W, a universal input and a low no-load power consumption. These devices are suitable for PCB mounting and are protected against short circuit. We offer the following types of this Recom series: RAC3.5-3.3SK/277, RAC3.5-05SK/277, RAC3.5-12SK/277, RAC3.5-15SK/277 and RAC3.5-24SK/277. single output output: 3,5W input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC maximal input inrush current: 30A withstand voltage I/P-O/P: 3000V AC / 1min operating temperature: -40 to +70°C weight: 31,5g

Specifications

manufacturer
Manufacturer's name RAC3.5-05SK/277
Output voltage [V] 5
Efficiency [%] 80
Output voltage tolerance: [%] 1
Output power [W] 3,5
Output current [mA] 700
Data Sheet

Unit price

10,49 €

Stock: 11
Further delivery:
CW 10/2025
