RAC30-24SA

AC/DC converter modules series RAC30A

These modules in enclosed case with single output are suitable for PCB mounting. Their isolation voltage is 3000V AC and they have a low output ripple and noise. Furthermore, they are protected against short circuit. The devices have a universal input voltage range and are quick and easy to install in the switch cabinet (with DIN-rail mounting-kit). We are offering the following type by Recom: RAC30-24SA.

• input voltage: 90 to 264V AC (47 to 440Hz) 120 to 370V DC
• input inrush current, max.: 20A
• withstand voltage (I/P-O/P): 3000V AC / 1Min.
• operating temperature: -25 to +70°C
• weight: 212g

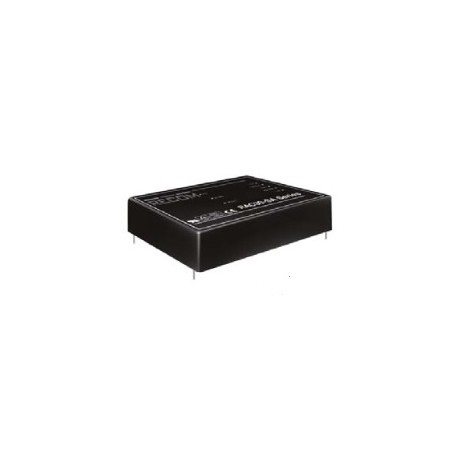

AC/DC-converter modules series RAC30-A

RAC30-24SA

109086 RAC30-24SA RAC30-24SA AC/DC converter modules series RAC30A. These modules in enclosed case with single output are suitable for PCB mounting. Their isolation voltage is 3000V AC and they have a low output ripple and noise. Furthermore, they are protected against short circuit. The devices have a universal input voltage range and are quick and easy to install in the switch cabinet (with DIN-rail mounting-kit). We are offering the following type by Recom: RAC30-24SA.• input voltage: 90 to 264V AC (47 to 440Hz) 120 to 370V DC• input inrush current, max.: 20A• withstand voltage (I/P-O/P): 3000V AC / 1Min.• operating temperature: -25 to +70°C• weight: 212g

Specifications

manufacturer
Manufacturer's name RAC30-24SA
Output voltage [V] 90...264
Efficiency [%] 82
Output voltage tolerance: [%] 2
Output power [W] 30
Ripple [mVp-p] 50
Output current [mA] 1250
Data Sheet

Unit price

96,09 €

Stock: 0
Next incoming goods:
CW 49/2024
4 units

Further delivery:
CW 07/2025
