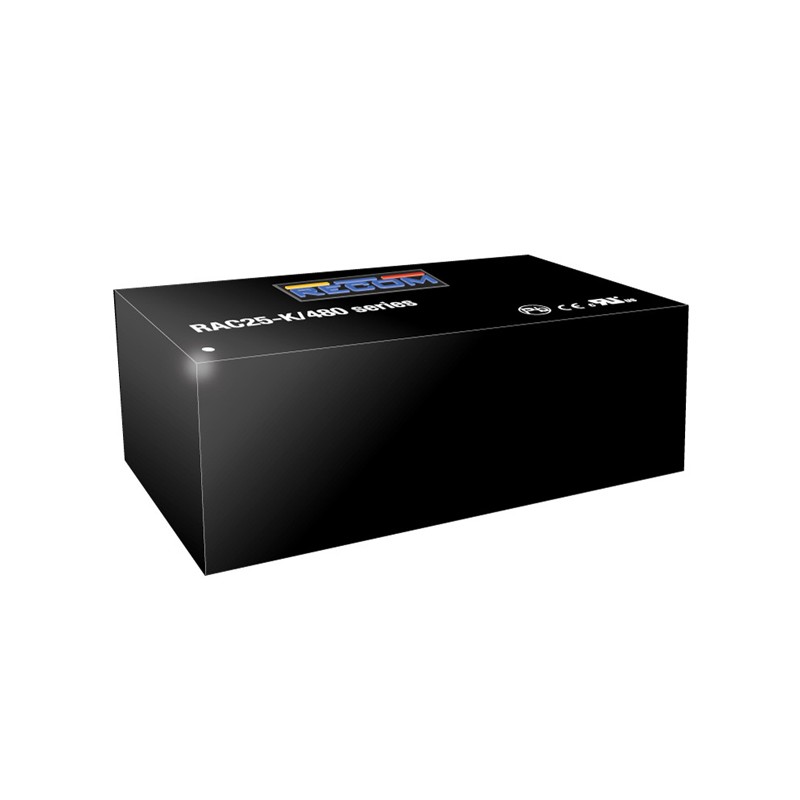

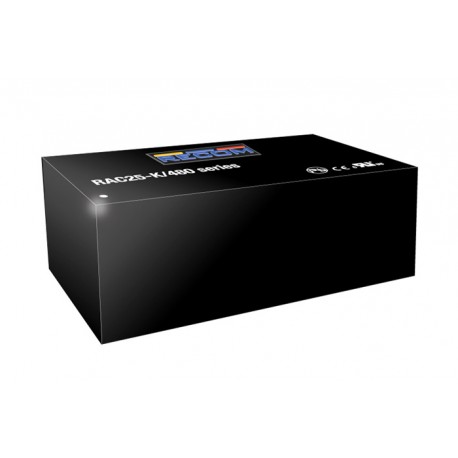

RAC25-05SK/480

Recom AC/DC converter series RAC25-K/480

Switching power supplies in an enclosed housing with 25W, a universal input and an LPS certification. These devices have a low no-load power (<0,3W) and are protected against overload, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m as well as for PCB mounting and comply with EN55032 class B. We offer the following types of this Recom series: RAC25-05SK/480, RAC25-12SK/480, RAC25-15SK/480 and RAC25-24SK/480.

  • single output
  • output: 25W
  • input voltage: 85 to 528V AC (47 to 63Hz), 120 to 750V DC
  • operating temperature: -40 to +90°C
  • dimensions: 83,23x46,43x30,4mm
  • weight: 185g
RAC25-05SK/480, Recom AC/DC converters, 25W, PCB, RAC25-K/480 series

RAC25-05SK/480

242050 RAC25-05SK/480 RAC25-05SK/480 Recom AC/DC converter series RAC25-K/480. Switching power supplies in an enclosed housing with 25W, a universal input and an LPS certification. These devices have a low no-load power (&lt;0,3W) and are protected against overload, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m as well as for PCB mounting and comply with EN55032 class B. We offer the following types of this Recom series: RAC25-05SK/480, RAC25-12SK/480, RAC25-15SK/480 and RAC25-24SK/480. single output output: 25W input voltage: 85 to 528V AC (47 to 63Hz), 120 to 750V DC operating temperature: -40 to +90°C dimensions: 83,23x46,43x30,4mm weight: 185g

Specifications

manufacturer
Manufacturer's name RAC25-05SK/480
Output voltage [V] 5
Efficiency [%] 82
Power [W] 25
Output current [A] 5
Output voltage tolerance: [%] ±3
Ripple [mVp-p] 100
Data Sheet

Unit price

29,39 €

Stock: 10
Further delivery:
CW 14/2025
