RAC20E-12SK/277

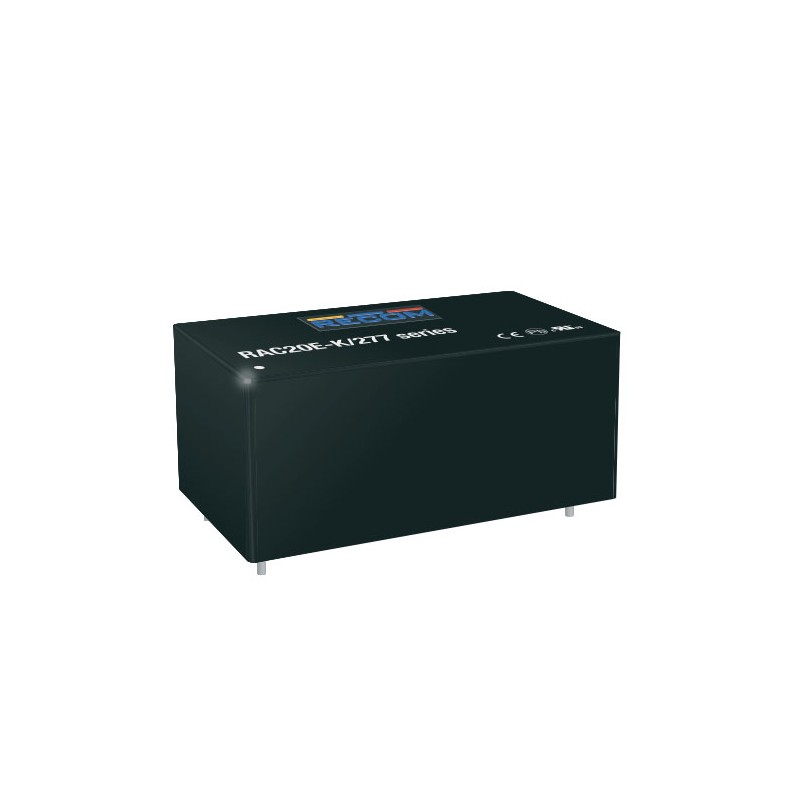

Recom AC/DC converter series RAC20E-K/277

AC/DC converters in an enclosed plastic housing with 20W, a universal input, protection class II and a low no-load power consumption (<200mW). They are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with EN62368-1, IEC62368-1, UL62368-1, EN61204-3 as well as EN55032 class B. We offer the following types of this Mean Well series: RAC20E-05SK/277, RAC20E-12SK/277 and RAC20E-24SK/277.

  • single output
  • output: 20W
  • input voltage: 85 to 305V AC (47 to 63Hz)
  • input current: 0,3A
  • maximal input inrush current: 40A
  • leakage current: 0,25mA
  • no-load power: <0,2W
  • withstand voltage I/P-O/P: 4000V AC
  • connection type: THT
  • operating temperature: -40 to +90°C
  • dimensions: 52,5x27,6x23mm
  • weight: 60g

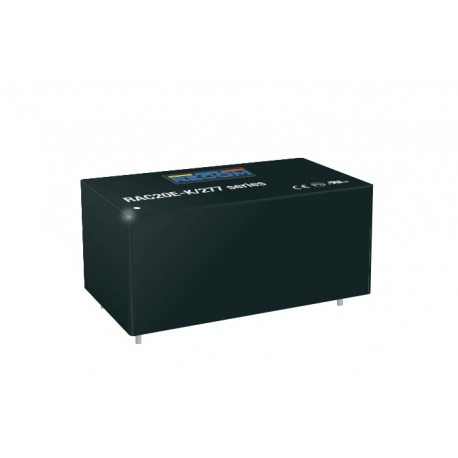

RAC20E-12SK/277, Recom AC/DC converters, 20W, PCB, RAC20E-K/277 series

RAC20E-12SK/277

241467 RAC20E-12SK/277 RAC20E-12SK/277 Recom AC/DC converter series RAC20E-K/277. AC/DC converters in an enclosed plastic housing with 20W, a universal input, protection class II and a low no-load power consumption (&lt;200mW). They are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with EN62368-1, IEC62368-1, UL62368-1, EN61204-3 as well as EN55032 class B. We offer the following types of this Mean Well series: RAC20E-05SK/277, RAC20E-12SK/277 and RAC20E-24SK/277. single output output: 20W input voltage: 85 to 305V AC (47 to 63Hz) input current: 0,3A maximal input inrush current: 40A leakage current: 0,25mA no-load power: &lt;0,2W withstand voltage I/P-O/P: 4000V AC connection type: THT operating temperature: -40 to +90°C dimensions: 52,5x27,6x23mm weight: 60g

Specifications

manufacturer
Manufacturer's name RAC20E-12SK/277
Output voltage [V] 12
Efficiency [%] 83
Output current [A] 1,67
Output voltage tolerance: [%] ±2
Output power [W] 20
Ripple [mVp-p] 120
Data Sheet

Unit price

12,99 €

Stock: 15
Next incoming goods:
CW 04/2025
45 units

Further delivery:
CW 08/2025
