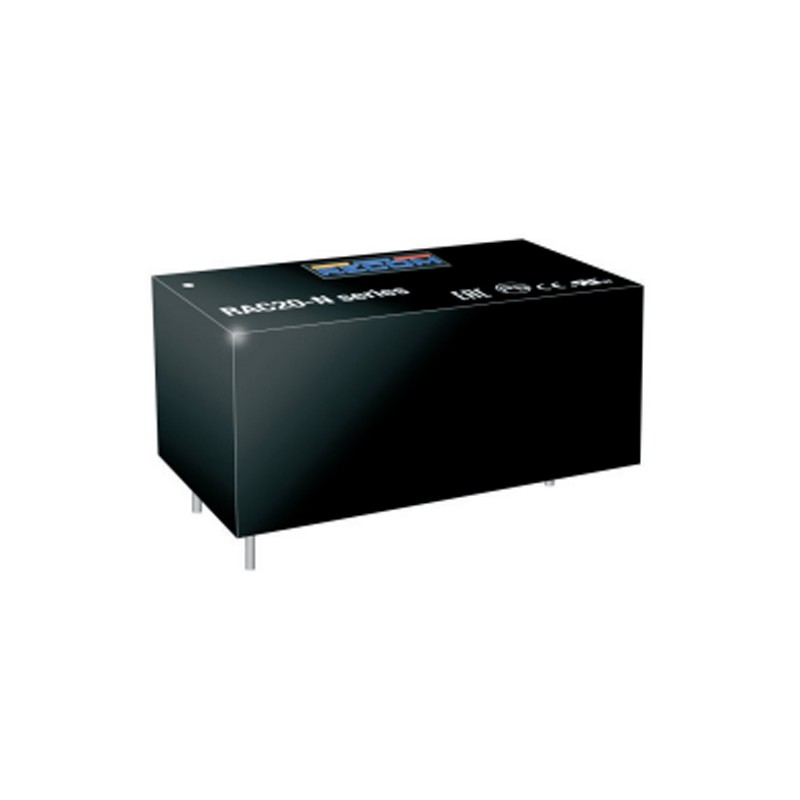

RAC20-12SN

Recom AC/DC converters series RAC20-N

AC/DC converter modules in a enclosed plastic case with 20W, a low off-load power, and a universal output. These devices are suitable for direct PCB mounting and are protected against short circuit, overvoltage as well as overload (auto recovery). Furthermore, they conform with EN60950, EN61000-3-2, EN61000-3-3, and others. We offer the RAC20-12SN type of this Recom series.

  • single output
  • current: 20W
  • input voltage range: 90 to 264V AC (47 to 440Hz), 120 to 370V DC
  • output voltage tolerance: ±2%
  • isolation voltage (I/P-O/P): 3000V AC / 1 min.
  • maximal inrush current: 40A
  • operating temperature: -40 to +85°C
  • dimensions: 52,5x27,5x23,5mm
  • weight: 62g

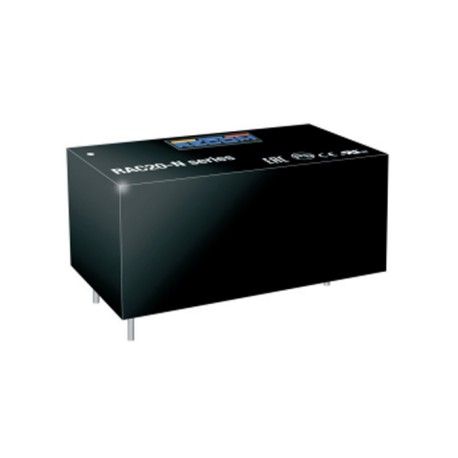

RAC20-12SN, Recom AC/DC converters, 20W, plastic case, PCB, RAC20-N series

RAC20-12SN

247200 RAC20-12SN RAC20-12SN Recom AC/DC converters series RAC20-N. AC/DC converter modules in a enclosed plastic case with 20W, a low off-load power, and a universal output. These devices are suitable for direct PCB mounting and are protected against short circuit, overvoltage as well as overload (auto recovery). Furthermore, they conform with EN60950, EN61000-3-2, EN61000-3-3, and others. We offer the RAC20-12SN type of this Recom series. single output current: 20W input voltage range: 90 to 264V AC (47 to 440Hz), 120 to 370V DC output voltage tolerance: ±2% isolation voltage (I/P-O/P): 3000V AC / 1 min.  maximal inrush current: 40A operating temperature: -40 to +85°C dimensions: 52,5x27,5x23,5mm weight: 62g

Specifications

manufacturer
Manufacturer's name RAC20-12SN
Output voltage [V] 12
Output current range [mA] 1660
Efficiency [%] 82
Ripple [mVp-p] 120
Data Sheet

Unit price

34,39 €

Stock: 0
Further delivery:
CW 07/2025

Minimum order quantity 8 units or
multiples of 8.
