RAC20-12SK/277

Recom AC/DC converter series RAC20-K/277

AC/DC converters in a plastic housing with 20W, a universal input, protection class II and a single (RAC20-_SK/277) or dual output (RAC20-_DK/277). These devices are suitable for PCB mounting, are protected against overload, short circuit as well as overvoltage and comply with EN62368-1, EN60335-1, EN61558-1, EN61558-2-16, EN61204-3, EN55032 class B as well as EN55014. We offer the following types of this Recom series: RAC20-05SK/277, RAC20-12SK/277, RAC20-15SK/277, RAC20-24SK/277, RAC20-12DK/277 and RAC20-15DK/277.

  • single (RAC20-_SK/277) or dual output (RAC20-_DK/277)
  • output: 20W
  • input voltage: 85 to 305V AC (47 to 63Hz)
  • input current: 0,4A
  • maximal input inrush current: 40A
  • leakage current: 0,25mA
  • maximal no-load power consumption: 0,04W
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -40 to +55°C
  • dimensions: 52,5x27,4x23mm
  • weight: 60g

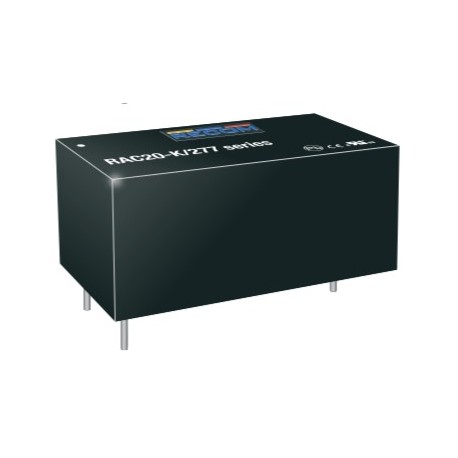

RAC20-12SK/277, Recom AC/DC converters, 20W, PCB, RAC20-K/277 series

RAC20-12SK/277

237762 RAC20-12SK/277 RAC20-12SK/277 Recom AC/DC converter series RAC20-K/277. AC/DC converters in a plastic housing with 20W, a universal input, protection class II and a single (RAC20-_SK/277) or dual output (RAC20-_DK/277). These devices are suitable for PCB mounting, are protected against overload, short circuit as well as overvoltage and comply with EN62368-1, EN60335-1, EN61558-1, EN61558-2-16, EN61204-3, EN55032 class B as well as EN55014. We offer the following types of this Recom series: RAC20-05SK/277, RAC20-12SK/277, RAC20-15SK/277, RAC20-24SK/277, RAC20-12DK/277 and RAC20-15DK/277. single (RAC20-_SK/277) or dual output (RAC20-_DK/277) output: 20W input voltage: 85 to 305V AC (47 to 63Hz) input current: 0,4A maximal input inrush current: 40A leakage current: 0,25mA maximal no-load power consumption: 0,04W withstand voltage I/P-O/P: 3000V AC operating temperature: -40 to +55°C dimensions: 52,5x27,4x23mm weight: 60g

Specifications

manufacturer
Manufacturer's name RAC20-12SK/277
Output voltage [V] 12
Efficiency [%] 86
Output current [A] 1,67
Output voltage tolerance: [%] ±2
Output power [W] 20
Ripple [mVp-p] 120
Data Sheet

Unit price

15,89 €

Stock: 5
Further delivery:
CW 04/2025
