RAC20-12SB

Recom AC/DC converter series RAC20-B

AC/DC converter modules in an enclosed plastic housing with 20W, a universal input and a low ripple and noise. These devices are suitable for PCB mounting as well as for low temperature operations and are protected against short circuit. They have a mechanical anti-vibration fixing and comply with EN60950-1, EN55032 as well as EN55024. We offer the following types of this Recom series: RAC20-12SB and RAC20-24SB.

  • single output
  • output: 20W
  • input voltage: 90 to 264V AC (47 to 440Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 3000V AC (1min)
  • operating temperature: -40 to +70°C
  • weight: 59g

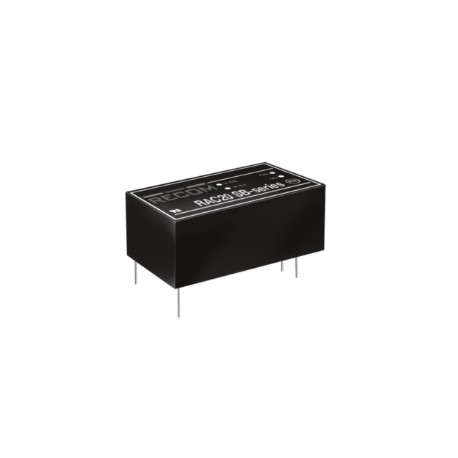

AC/DC-converter modules series RAC20-SBa

RAC20-12SB

109084 RAC20-12SB RAC20-12SB Recom AC/DC converter series RAC20-B. AC/DC converter modules in an enclosed plastic housing with 20W, a universal input and a low ripple and noise. These devices are suitable for PCB mounting as well as for low temperature operations and are protected against short circuit. They have a mechanical anti-vibration fixing and comply with EN60950-1, EN55032 as well as EN55024. We offer the following types of this Recom series: RAC20-12SB and RAC20-24SB. single output output: 20W input voltage: 90 to 264V AC (47 to 440Hz), 120 to 370V DC maximal input inrush current: 40A withstand voltage I/P-O/P: 3000V AC (1min) operating temperature: -40 to +70°C weight: 59g

Specifications

manufacturer
Manufacturer's name RAC20-12SB
Output voltage [V] 90...264
Efficiency [%] 82
Output voltage tolerance: [%] 2
Output power [W] 20
Ripple [mVp-p] 1% V out
Output current [mA] 1660
Data Sheet

Unit price

85,69 €

Stock: 16
Further delivery:
CW 11/2025
