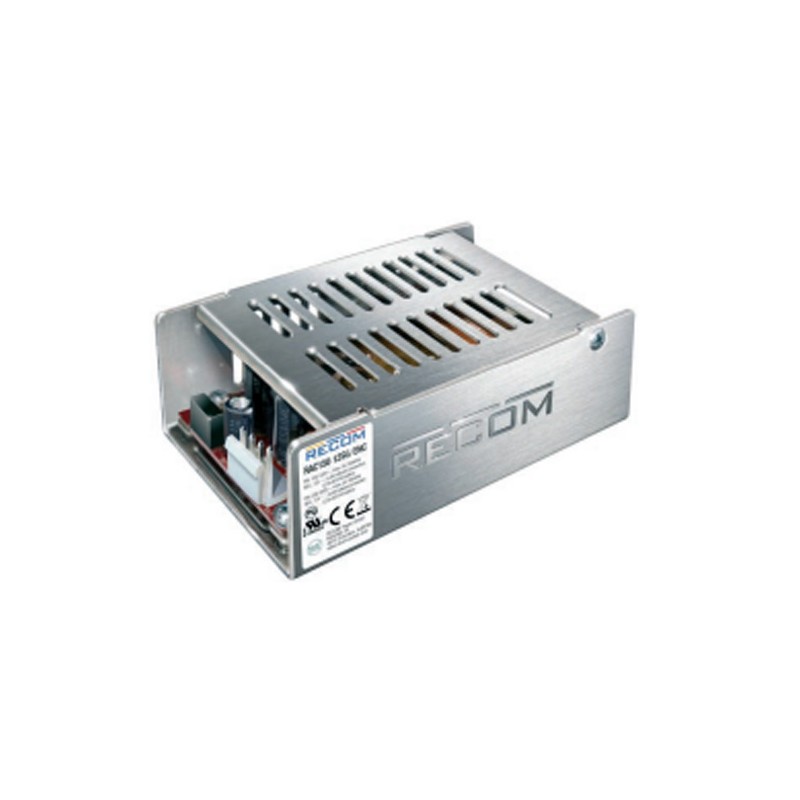

RAC150-12SG/ENC

Recom AC/DC converters series RAC150-G

These converter modules in a compact housing (4"x2") are equipped with a universal input and contact pins for nylon-crimp terminals. They have a cooling via free air convection up to125W, are protected against overload (hiccup, auto recovery), over voltage, and short circuit. These devices have a build in PFC circuit, as well as they conform with EN62368-1, EN61000-3-2, EN1000-3-3, and others. We offer the following types of this Recom series: RAC150-12SG/ENC and RAC150-24SG/ENC.

  • single output
  • output current: 150W
  • input voltage range: 90 to 264V AC (47 to 63Hz)
  • output voltage tolerance: ±2%
  • inrush current, max.: 60A
  • leakage current, max.: 0,25mA
  • overload protection: 105 to 150%
  • isolation voltage I/P-O/P: 3000V AC
  • isolation voltage I/P-FG: 1500V AC
  • isolation voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 105,0x62,0x35,0mmm
  • weight: 265g

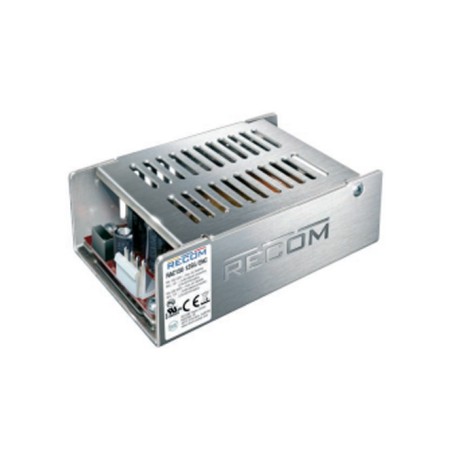

RAC150-12SG/ENC, Recom AC/DC converters, 150W, enclosed, RAC150-G series

RAC150-12SG/ENC

247219 RAC150-12SG/ENC RAC150-12SG/ENC Recom AC/DC converters series RAC150-G. These converter modules in a compact housing (4"x2") are equipped with a universal input and contact pins for nylon-crimp terminals. They have a cooling via free air convection up to125W, are protected against overload (hiccup, auto recovery), over voltage, and short circuit. These devices have a build in PFC circuit, as well as they conform with EN62368-1, EN61000-3-2, EN1000-3-3, and others. We offer the following types of this Recom series: RAC150-12SG/ENC and RAC150-24SG/ENC. single output output current: 150W input voltage range: 90 to 264V AC (47 to 63Hz) output voltage tolerance: ±2% inrush current, max.: 60A leakage current, max.: 0,25mA overload protection: 105 to 150% isolation voltage I/P-O/P: 3000V AC isolation voltage I/P-FG: 1500V AC isolation voltage O/P-FG: 500V AC operating temperature: -30 to +70°C dimensions: 105,0x62,0x35,0mmm weight: 265g

Specifications

manufacturer
Manufacturer's name RAC150-12SG/ENC
Output voltage [V] 12
Efficiency [%] 91
Output current [A] 12,5
Ripple [mVp-p] 150...300
Data Sheet

Unit price

71,89 €

Stock: 0
Further delivery:
CW 10/2025
