RAC15-24SK/480

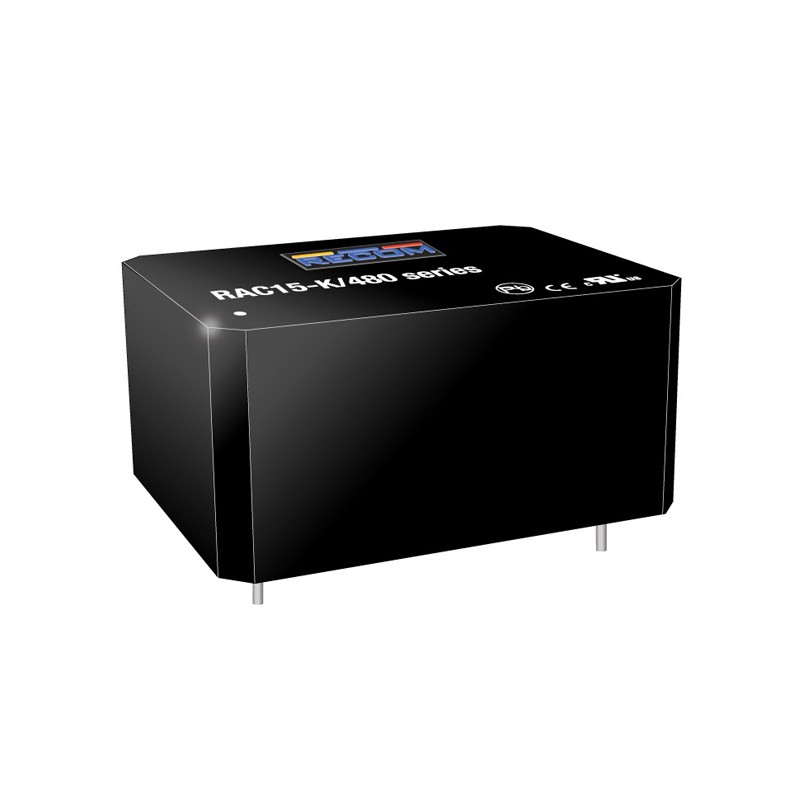

Recom AC/DC converter series RAC15-K/480

Switching power supplies in an enclosed housing with 15W, a low no-load power (<0,3W) and a universal input. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m, are LPS certified and comply with EN55032 class B. We offer the following types of this Recom series: RAC15-05SK/480, RAC15-12SK/480, RAC15-15SK/480 and RAC15-24SK/480.

  • single output
  • output: 15W
  • input voltage: 85 to 528V AC (47 to 63Hz), 120 to 750V DC
  • operating temperature: -40 to +90°C
  • dimensions: 52,5x40x25,5mm
  • weight: 92g

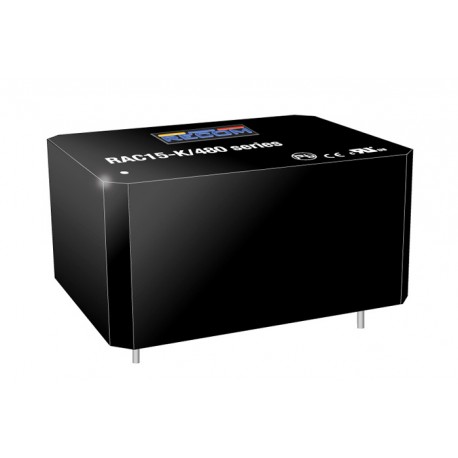

RAC15-24SK/480, Recom AC/DC converters, 15W, PCB, RAC15-K/480 series

RAC15-24SK/480

242049 RAC15-24SK/480 RAC15-24SK/480 Recom AC/DC converter series RAC15-K/480. Switching power&nbsp;supplies in an enclosed housing with 15W, a low no-load power (&lt;0,3W) and a universal input. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They are suitable for an operating&nbsp;altitude of up to 5000m, are LPS certified and comply with EN55032 class B. We offer the following types of this Recom series:&nbsp;RAC15-05SK/480, RAC15-12SK/480, RAC15-15SK/480 and RAC15-24SK/480. single output output: 15W input voltage: 85 to 528V AC (47 to 63Hz), 120 to 750V DC operating temperature: -40 to +90&deg;C dimensions: 52,5x40x25,5mm weight: 92g

Specifications

manufacturer
Manufacturer's name RAC15-24SK/480
Output voltage [V] 24
Efficiency [%] 87
Power [W] 15
Output current [A] 0,625
Output voltage tolerance: [%] ±3
Ripple [mVp-p] 240
Data Sheet

Unit price

25,19 €

Stock: 17
Further delivery:
CW 10/2025
