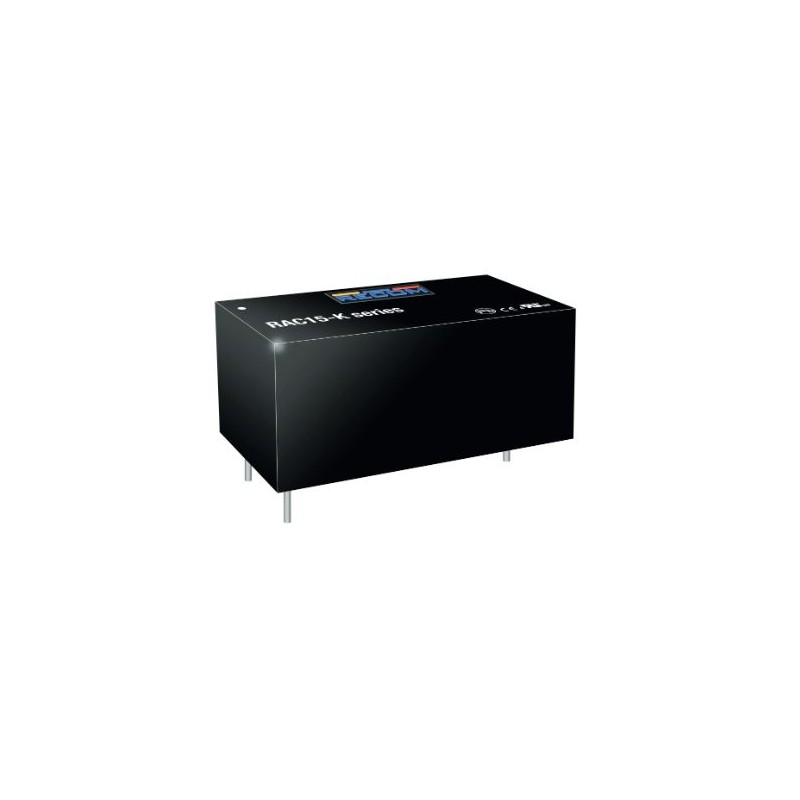

RAC15-15SK

Recom AC/DC converter series RAC15-K

AC/DC converter modules in an enclosed plastic housing with 15W, a universal input and a low no-load power. These devices are suitable for PCB mounting and are protected against short circuit. They have a very high efficiency and comply with UL/EN62368-1, EN60335, EN61558-1, EN61558-2-16, EN61204-3, EN55032/14 as well as EN55024. We offer the following types of this Recom series: RAC15-05SK, RAC15-12SK, RAC15-15SK and RAC15-24SK.

  • single output
  • output: 15W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • operating temperature: -40 to +55°C
  • weight: 60g

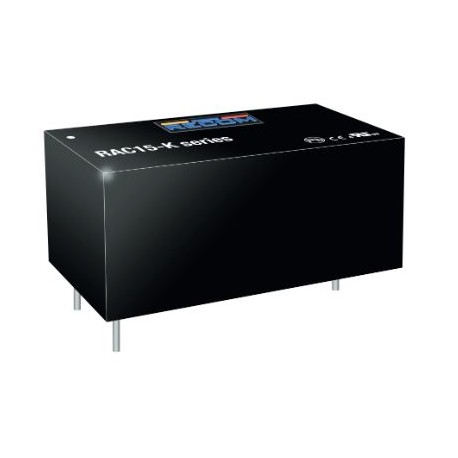

Recom RAC15-K series

RAC15-15SK

112646 RAC15-15SK RAC15-15SK Recom AC/DC converter series RAC15-K. AC/DC converter modules in an enclosed plastic housing with 15W, a universal input and a low no-load power. These devices are suitable for PCB mounting and are protected against short circuit. They have a very high efficiency and comply with UL/EN62368-1, EN60335, EN61558-1, EN61558-2-16, EN61204-3, EN55032/14 as well as EN55024. We offer the following types of this Recom series: RAC15-05SK, RAC15-12SK, RAC15-15SK and RAC15-24SK. single output output: 15W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A operating temperature: -40 to +55°C weight: 60g

Specifications

manufacturer
Manufacturer's name RAC15-15SK
Output voltage [V] 15
Efficiency [%] 86
Output voltage tolerance: [%] 2
Output power [W] 15
Ripple [mVp-p] 100
Output current [mA] 1000
Data Sheet

Unit price

13,99 €

Stock: 50
Further delivery:
CW 04/2025
