RAC10-05SK/277

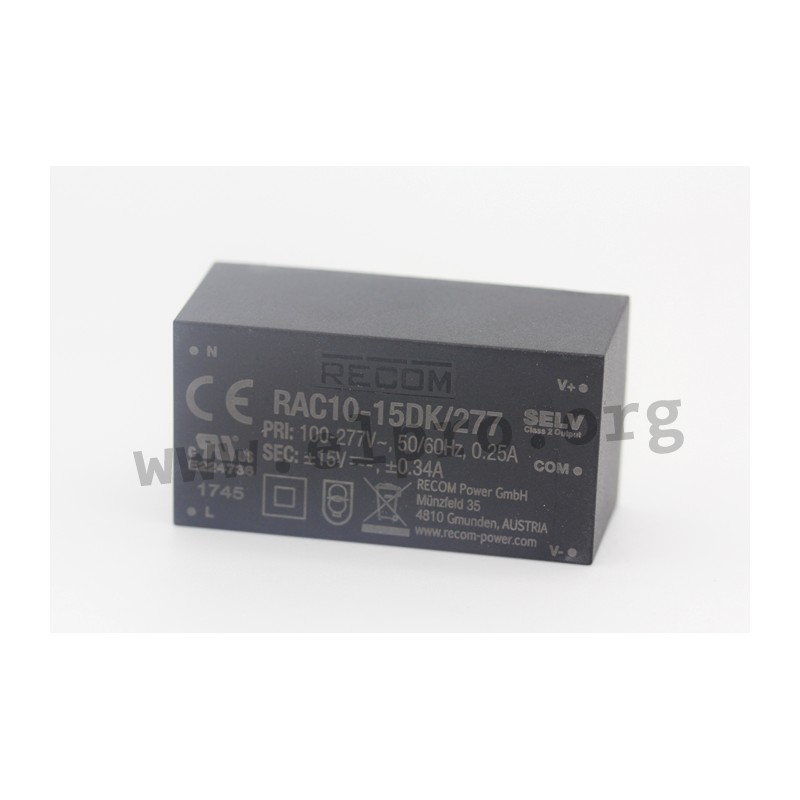

Recom AC/DC converter series RAC10-K/277

AC/DC converter modules in an enclosed plastic housing with 10W, a universal input and a low no-load power. These devices are suitable for PCB mounting and are protected against short circuit. They have a single (RAC10-_SK/277) or a dual output (RAC10-_DK/277) and comply with UL/EN62368-1, EN60950-1, EN60335-1, EN62233, EN62477-1 as well as EN61204-3. We offer the following types of this Recom series: RAC10-3.3SK/277, RAC10-05SK/277, RAC10-12SK/277, RAC10-15SK/277, RAC10-24SK/277, RAC10-12DK/277 and RAC10-15DK/277.

  • single or dual output
  • output: 10W
  • input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC
  • maximal input inrush current: 36A
  • withstand voltage I/P-O/P: 4000V AC (1min)
  • operating temperature: -40 to +80°C
  • weight: 65g

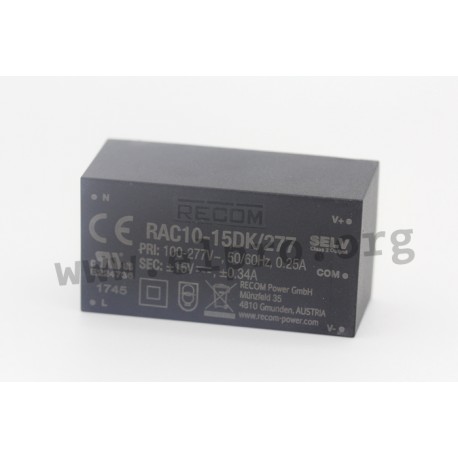

Recom RAC10-K/277 series

RAC10-05SK/277

110853 RAC10-05SK/277 RAC10-05SK/277 Recom AC/DC converter series RAC10-K/277. AC/DC converter modules in an enclosed plastic housing with 10W, a universal input and a low no-load power. These devices are suitable for PCB mounting and are protected against short circuit. They have a single (RAC10-_SK/277) or a dual output (RAC10-_DK/277) and comply with UL/EN62368-1, EN60950-1, EN60335-1, EN62233, EN62477-1 as well as EN61204-3. We offer the following types of this Recom series: RAC10-3.3SK/277, RAC10-05SK/277, RAC10-12SK/277, RAC10-15SK/277, RAC10-24SK/277, RAC10-12DK/277 and RAC10-15DK/277. single or dual output output: 10W input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC maximal input inrush current: 36A withstand voltage I/P-O/P: 4000V AC (1min) operating temperature: -40 to +80°C weight: 65g

Specifications

manufacturer
Manufacturer's name RAC10-05SK/277
Output voltage [V] 5
Efficiency [%] 82
Output voltage tolerance: [%] 1
Output power [W] 10
Ripple [mVp-p] 20
Output current [mA] 2000
Data Sheet

Unit price

13,09 €

Stock: 24
Further delivery:
CW 02/2025
