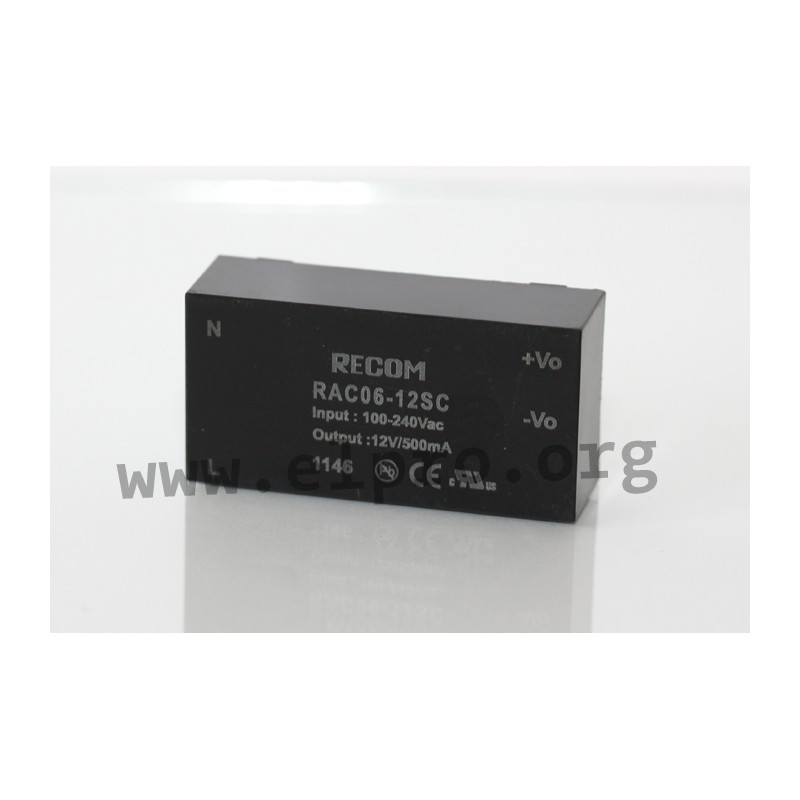

RAC06-12SC

Recom AC/DC converter series RAC06

AC/DC converter modules in an enclosed plastic housing with 6W, a universal input and a low no-load power. These devices are suitable for PCB mounting and are protected against short circuit. They have a single (RAC06-_SC) or a dual output (RAC06-_DC) and comply with UL/EN60950-1, EN55032 as well as EN55024. We offer the following types of this Recom series: RAC06-05SC, RAC06-09SC, RAC06-12SC, RAC06-24SC, RAC06-05DC and RAC06-12DC.

  • single and dual output
  • output: 6W
  • input voltage: 80 to 264V AC (47 to 440Hz), 115 to 370V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3000V AC (1min)
  • operating temperature: -25 to +55°C
  • weight: 35g
series RAC06 by Recom

RAC06-12SC

37097 RAC06-12SC RAC06-12SC Recom AC/DC converter series RAC06. AC/DC converter modules in an enclosed plastic housing with 6W, a universal input and a low no-load power. These devices are suitable for PCB mounting and are protected against short circuit. They have a single (RAC06-_SC) or a dual output (RAC06-_DC) and comply with UL/EN60950-1, EN55032 as well as EN55024. We offer the following types of this Recom series: RAC06-05SC, RAC06-09SC, RAC06-12SC, RAC06-24SC, RAC06-05DC and RAC06-12DC. single and dual output output: 6W input voltage: 80 to 264V AC (47 to 440Hz), 115 to 370V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3000V AC (1min) operating temperature: -25 to +55°C weight: 35g

Specifications

manufacturer
Manufacturer's name RAC06-12SC
Output voltage [V] 12
Phase 2 phase
Output current range [mA] 500
Efficiency [%] 78
Output voltage tolerance: [%] 2
Output power [W] 6
Ripple [mVp-p] 150
Data Sheet

Unit price

27,89 €

Stock: 10
Further delivery:
CW 22/2025
