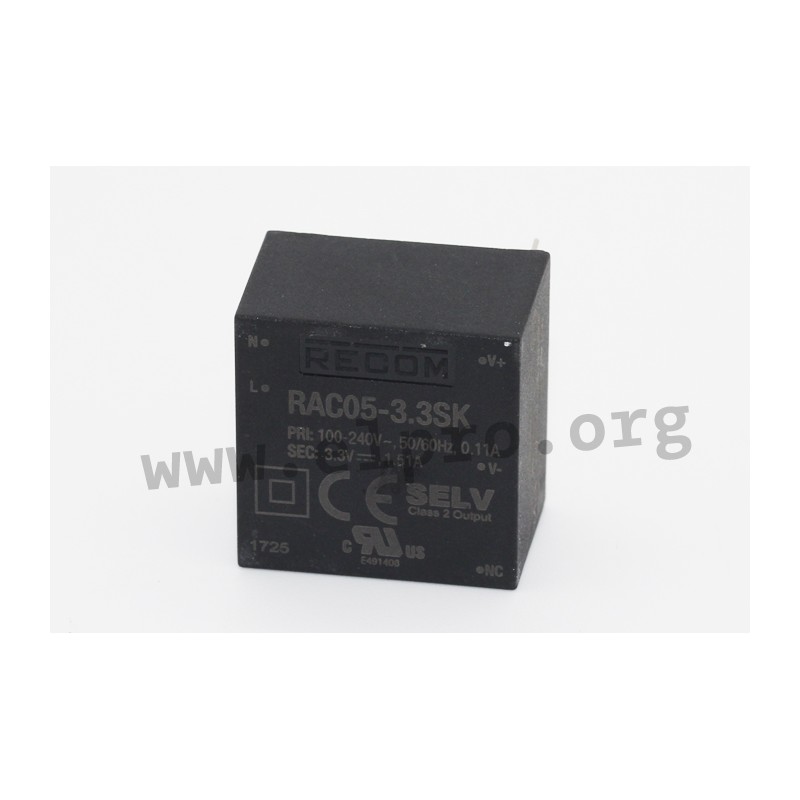

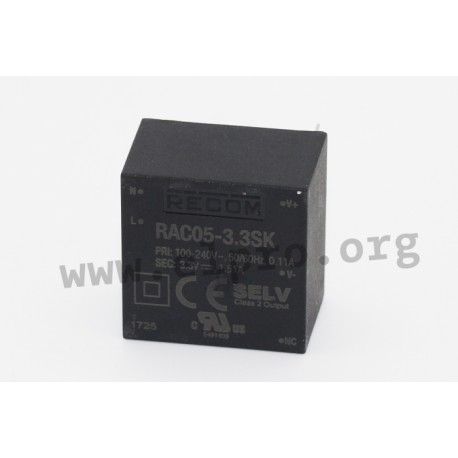

RAC05-3.3SK

Recom AC/DC converter series RAC05-SK

AC/DC converter modules in an enclosed 1"x1" plastic housing with 5W and a universal input. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with EN60950-1, EN62368-1 as well as EN61000-3-3. We offer the following types of this Recom series: RAC05-3.3SK, RAC05-05SK, RAC05-12SK, RAC05-15SK and RAC05-24SK.

  • single output
  • output: 5W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 30A
  • withstand voltage I/P-O/P: 3000V AC (1min)
  • operating temperature: -25 to +70°C
  • dimensions: 25,4x25,4x16,5mm
  • weight: 20g
RAC05-3.3SK

RAC05-3.3SK

110590 RAC05-3.3SK RAC05-3.3SK Recom AC/DC converter series RAC05-SK. AC/DC converter modules in an enclosed 1"x1" plastic housing with 5W and a universal input. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with EN60950-1, EN62368-1 as well as EN61000-3-3. We offer the following types of this Recom series: RAC05-3.3SK, RAC05-05SK, RAC05-12SK, RAC05-15SK and RAC05-24SK. single output output: 5W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 30A withstand voltage I/P-O/P: 3000V AC (1min) operating temperature: -25 to +70°C dimensions: 25,4x25,4x16,5mm weight: 20g

Specifications

manufacturer
Manufacturer's name RAC05-3.3SK
Efficiency [%] 76
Output voltage tolerance: [%] 1
Output power [W] 5
Output current [mA] 1515
Data Sheet

Unit price

11,69 €

Stock: 36
Further delivery:
CW 04/2025
