RAC05-15SK/C14

Recom AC/DC converter series RAC05-K/C14

AC/DC converter modules in an IEC mains filter case with 5W and a universal input. These devices are suitable for screw-on mounting and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are compliant with EN60950-1, EN62638-1 and EN61000-3-3. We offer the following types of this Recom series: RAC05-3.3SK/C14, RAC05-05SK/C14, RAC05-12SK/C14, RAC05-15SK/C14 and RAC05-24SK/C14.

  • single output
  • output: 5W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 30A
  • withstand voltage I/P-O/P: 3000V AC / 1min
  • operating temperature: -25 to +70°C
  • dimensions: 67x48x23mm

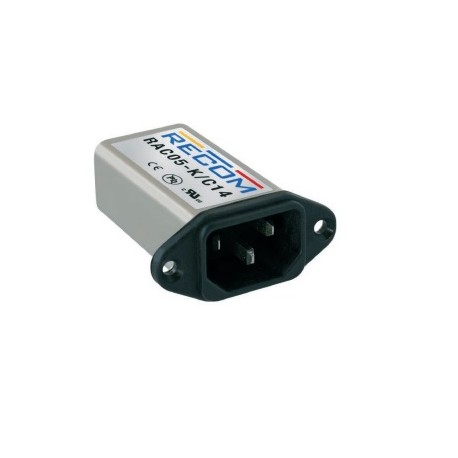

RAC05-15SK/C14, Recom converter modules, 5W, in an IEC mains filter case, RAC05-K/C14 series

RAC05-15SK/C14

126901 RAC05-15SK/C14 RAC05-15SK/C14 Recom AC/DC converter series RAC05-K/C14. AC/DC converter modules in an IEC mains filter case with 5W and a universal input. These devices are suitable for screw-on mounting and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are compliant with EN60950-1, EN62638-1 and EN61000-3-3. We offer the following types of this Recom series: RAC05-3.3SK/C14, RAC05-05SK/C14, RAC05-12SK/C14, RAC05-15SK/C14 and RAC05-24SK/C14. single output output: 5W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 30A withstand voltage I/P-O/P: 3000V AC / 1min operating temperature: -25 to +70°C dimensions: 67x48x23mm

Specifications

manufacturer
Manufacturer's name RAC05-15SK/C14
Output voltage [V] 15
Efficiency [%] 81
Output voltage tolerance: [%] 2
Ripple [mVp-p] 60
Output current [mA] 333
Data Sheet

Unit price

19,39 €

Stock: 5
Further delivery:
CW 14/2025
