RAC05-05SK/480

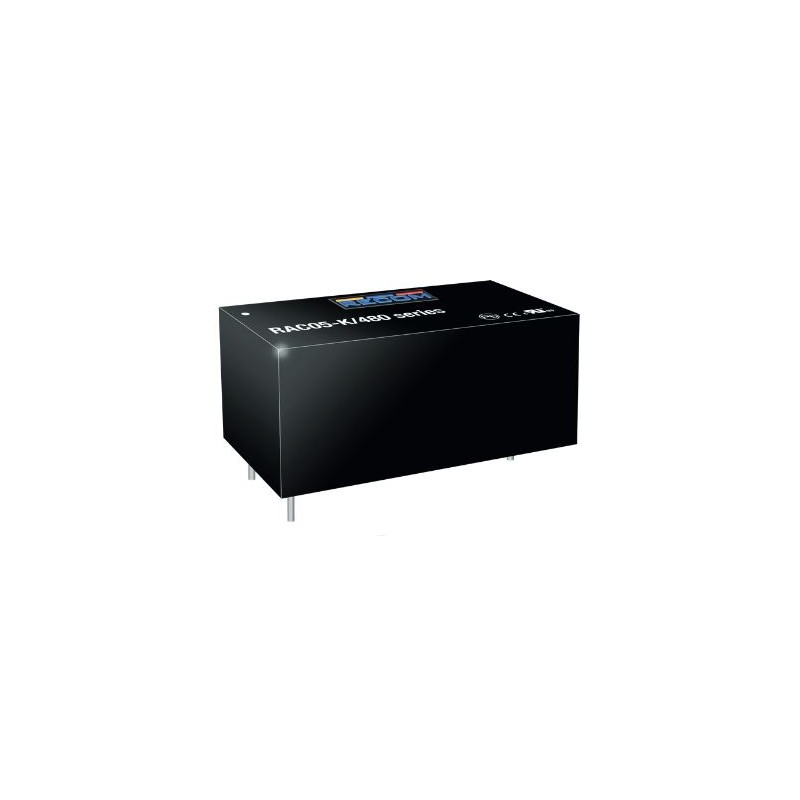

Recom AC/DC converter series RAC05-K/480

AC/DC converter modules in a plastic case (enclosed) with 5W and a universal input. These devices have an ultra-low standby power consumption and are protected against short circuit. We offer the types RAC05-05SK/480, RAC05-12SK/480 as well as RAC05-15SK/480 of this Recom series.

  • single output
  • output: 5W
  • input voltage: 85 to 528V AC (47 to 63Hz), 120 to 745V DC
  • maximal input inrush current: 20A
  • withstand voltage (I/P-O/P): 4000V AC / 1min.
  • operating temperature: -40 to +60°C
  • weight: 58g

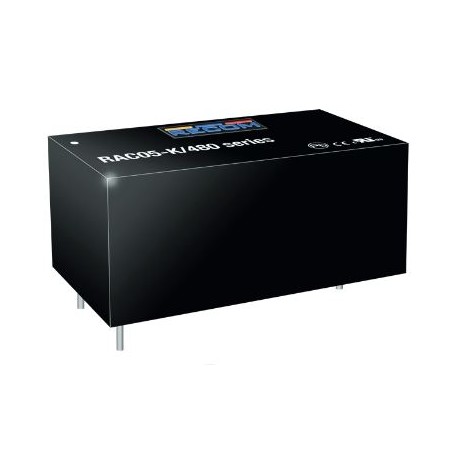

Recom RAC05-K/480 series

RAC05-05SK/480

112643 RAC05-05SK/480 RAC05-05SK/480 Recom AC/DC converter series RAC05-K/480. AC/DC converter modules in a plastic case (enclosed) with 5W and a universal input. These devices have an ultra-low standby power consumption and are protected against short circuit. We offer the types RAC05-05SK/480, RAC05-12SK/480 as well as RAC05-15SK/480 of this Recom series. single output output: 5W input voltage: 85 to 528V AC (47 to 63Hz), 120 to 745V DC maximal input inrush current: 20A withstand voltage (I/P-O/P): 4000V AC / 1min. operating temperature: -40 to +60°C weight: 58g

Specifications

manufacturer
Manufacturer's name RAC05-05SK/480
Output voltage [V] 5
Efficiency [%] 63
Output voltage tolerance: [%] 1
Output power [W] 5
Ripple [mVp-p] 50
Output current [mA] 1000
Data Sheet

Unit price

18,69 €

Stock: 17
Further delivery:
CW 04/2025
