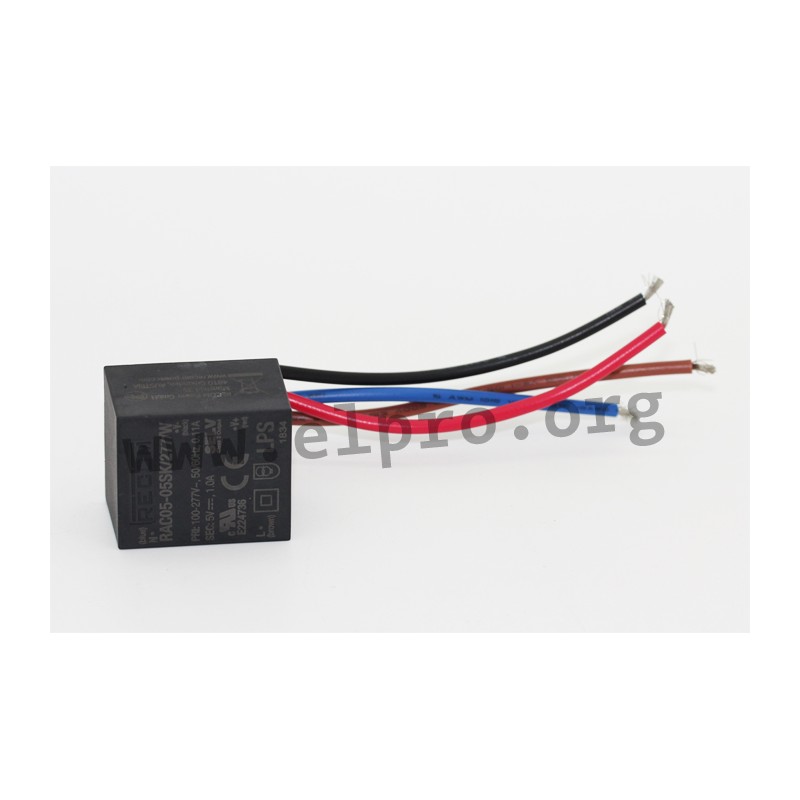

RAC05-05SK/277/W

Recom AC/DC converter series RAC05-K/277/W

AC/DC converter modules in a plastic housing with 5W, a stranded wire connection, a low no-load power and a universal input. These devices are suitable for PCB mounting, are protected against short circuit and comply with UL/EN62368-1, EN62233, EN61558-1, EN61558-2-16, EN55032 as well as EN55014-1(-2). We offer the following types of this Recom series: RAC05-05SK/277/W, RAC05-12SK/277/W and RAC05-24SK/277/W.

  • single output
  • output: 5W
  • input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC
  • maximal input inrush current: 30A
  • withstand voltage I/P-O/P: 3000V AC (1min)
  • operating temperature 5 to 12V: -40 to +75°C
  • operating temperature 24V: -40 to +80°C
  • weight: 37g

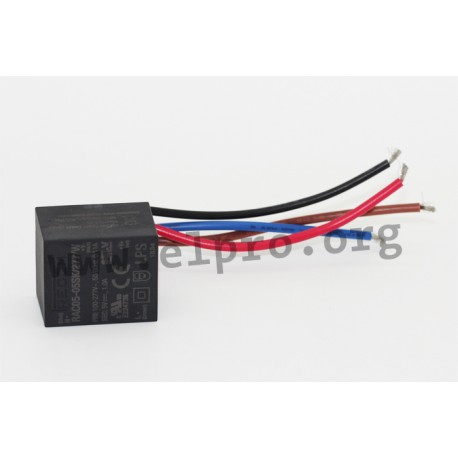

RAC05-05SK/277/W, output 5 watts, single output, stranded wire connection, RAC05-K/277/W series by Recom

RAC05-05SK/277/W

112640 RAC05-05SK/277/W RAC05-05SK/277/W Recom AC/DC converter series RAC05-K/277/W. AC/DC converter modules in a plastic housing with 5W, a stranded wire connection, a low no-load power and a universal input. These devices are suitable for PCB mounting, are protected against short circuit and comply with UL/EN62368-1, EN62233, EN61558-1, EN61558-2-16, EN55032 as well as EN55014-1(-2). We offer the following types of this Recom series: RAC05-05SK/277/W, RAC05-12SK/277/W and RAC05-24SK/277/W. single output output: 5W input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC maximal input inrush current: 30A withstand voltage I/P-O/P: 3000V AC (1min) operating temperature 5 to 12V: -40 to +75°C operating temperature 24V: -40 to +80°C weight: 37g

Specifications

manufacturer
Manufacturer's name RAC05-05SK/277/W
Output voltage [V] 5
Efficiency [%] 80
Output voltage tolerance: [%] 1
Output power [W] 5
Output current [mA] 1000
Data Sheet

Unit price

13,19 €

Stock: 11
Further delivery:
CW 04/2025
