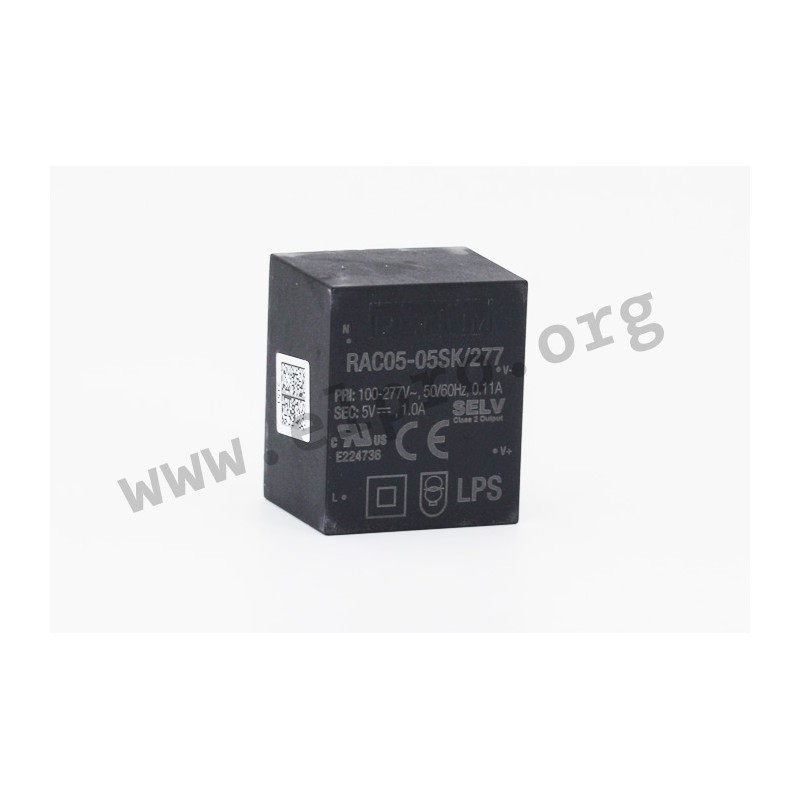

RAC05-05SK/277

Recom AC/DC converter series RAC05-K/277

AC/DC converter modules in a plastic case (enclosed) with 5W, a universal input and a low no-load power consumption. These devices are suitable for PCB mounting and are protected against short circuit. We offer the following types of this Recom series: RAC05-3.3SK/277, RAC05-05SK/277, RAC05-12SK/277, RAC05-15SK/277 and RAC05-24SK/277.

  • single output
  • output: 5W
  • input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC
  • maximal input inrush current: 30A
  • withstand voltage I/P-O/P: 3000V AC / 1min
  • operating temperature 3,3V: -40 to +70°C
  • operating temperature 5 to 12V: -40 to +75°C
  • operating temperature 15 to 24V: -40 to +80°C
  • weight: 31,5g

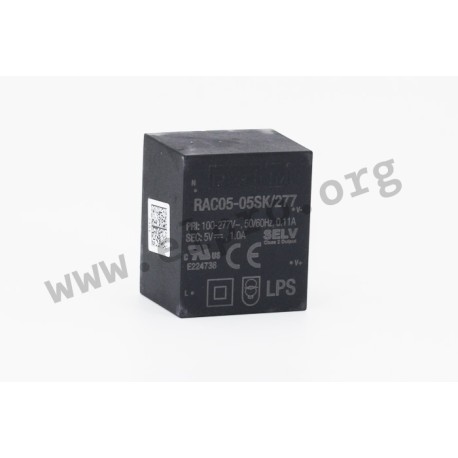

RAC05-05SK/277, Recom AC/DC converters, 5W, PCB, RAC05-K/277 series

RAC05-05SK/277

126903 RAC05-05SK/277 RAC05-05SK/277 Recom AC/DC converter series RAC05-K/277. AC/DC converter modules in a plastic case (enclosed) with 5W, a universal input and a low no-load power consumption. These devices are suitable for PCB mounting and are protected against short circuit. We offer the following types of this Recom series: RAC05-3.3SK/277, RAC05-05SK/277, RAC05-12SK/277, RAC05-15SK/277 and RAC05-24SK/277. single output output: 5W input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC maximal input inrush current: 30A withstand voltage I/P-O/P: 3000V AC / 1min operating temperature 3,3V: -40 to +70°C operating temperature 5 to 12V: -40 to +75°C operating temperature 15 to 24V: -40 to +80°C weight: 31,5g

Specifications

manufacturer
Manufacturer's name RAC05-05SK/277
Output voltage [V] 5
Efficiency [%] 80
Output voltage tolerance: [%] 1
Output power [W] 5
Output current [mA] 1000
Data Sheet

Unit price

12,29 €

Stock: 46
Further delivery:
CW 04/2025
