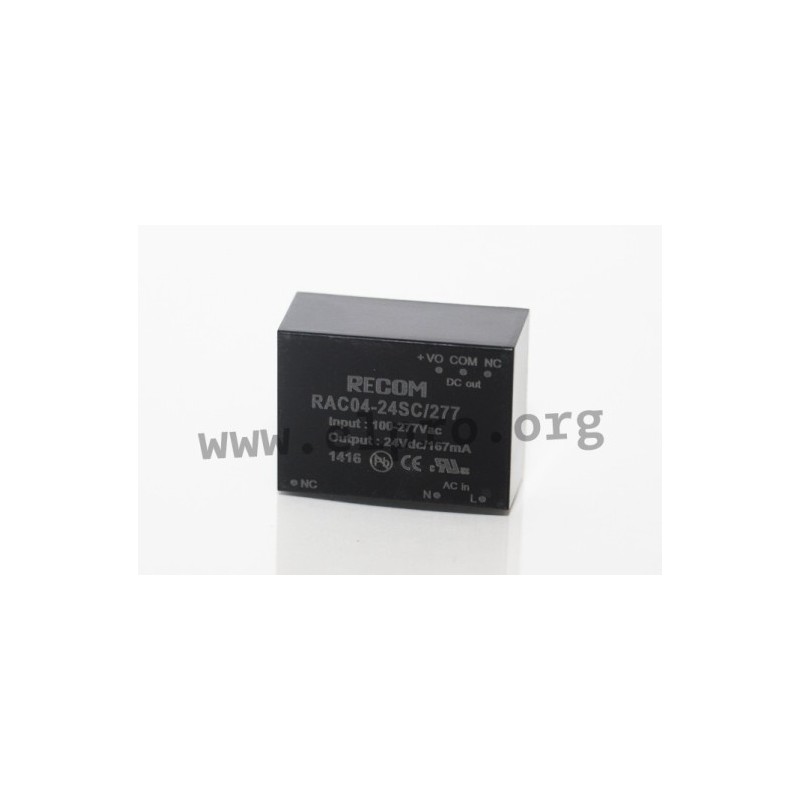

RAC04-24SC/277

Recom AC/DC converter series RAC04

AC/DC converter modules with 4W, a universal input and a low no-load power (<50mW). These devices are suitable for PCB mounting, are protected against overload as well as short circuit and comply with EN60950-1, EN55032 as well as EN55024. We offer the following types of this Recom series: RAC04-5SC/277, RAC04-12SC/277, RAC04-24SC/277, and RAC04-12DC/277-E.

  • single output, dual output (RAC04-12DC/277-E)
  • output: 4W
  • input voltage: 80 to 305V AC (47 to 440Hz), 113 to 430V DC
  • maximal input inrush current: 30A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +65°C
  • dimensions: 36,7x27,2x17,1mm
  • weight: 41g

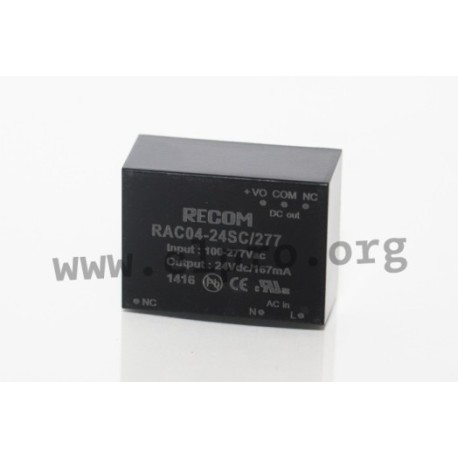

RAC04-24SC/277, Recom AC/DC converters, 4W, PCB, RAC04 series

RAC04-24SC/277

43595 RAC04-24SC/277 RAC04-24SC/277 Recom AC/DC converter series RAC04. AC/DC converter modules with 4W, a universal input and a low no-load power (&lt;50mW). These devices are suitable for PCB mounting, are protected against overload as well as short circuit and comply with EN60950-1, EN55032 as well as EN55024. We offer the following types of this Recom series: RAC04-5SC/277, RAC04-12SC/277, RAC04-24SC/277, and RAC04-12DC/277-E. single output, dual output (RAC04-12DC/277-E) output: 4W input voltage: 80 to 305V AC (47 to 440Hz), 113 to 430V DC maximal input inrush current: 30A withstand voltage I/P-O/P: 3750V AC operating temperature: -25 to +65°C dimensions: 36,7x27,2x17,1mm weight: 41g

Specifications

manufacturer
Manufacturer's name RAC04-24SC/277
Output voltage [V] 24
Phase 2 phase
Output current range [mA] 167
Efficiency [%] 79
Output voltage tolerance: [%] 2
Output power [W] 4
Ripple [mVp-p] 200
Data Sheet

Unit price

24,99 €

Stock: 11
Further delivery:
CW 22/2025
