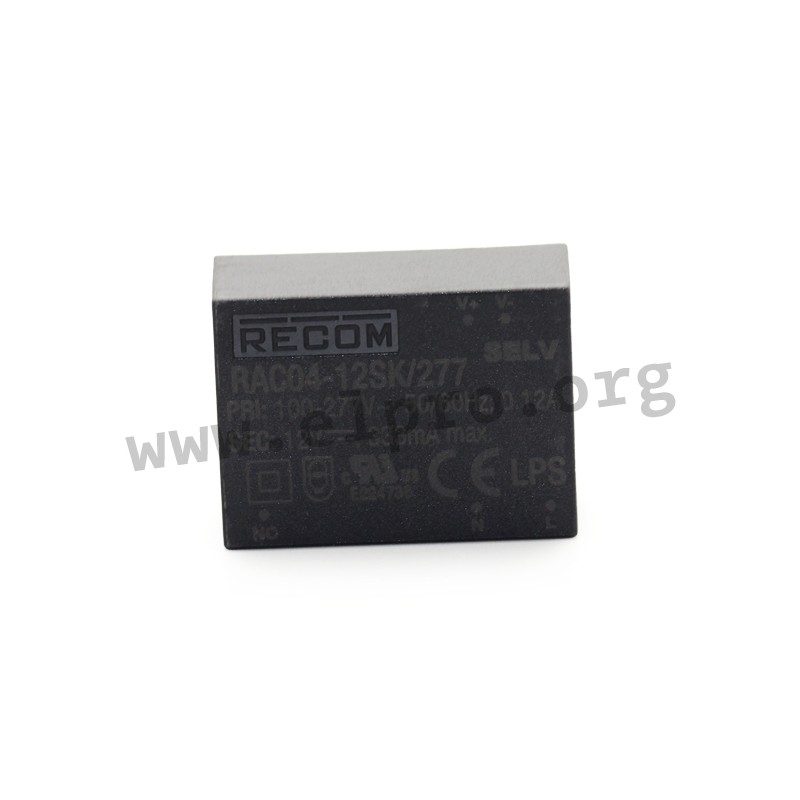

RAC04-24SK/277

Recom AC/DC converter series RAC04-K/277 and RAC04-C

AC/DC converter modules in a plastic case (enclosed) with 4W and a universal input. These devices are suitable for PCB mounting and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are compliant with EN55014-1, EN61000-3-3 and EN62368-1 (RAC04-_SK/277) resp. EN55032 (RAC04-_SC). We offer the following types of this Recom series: RAC04-3.3SK/277, RAC04-05SK/277, RAC04-12SC, RAC04-12SK/277, RAC04-15SK/277, RAC04-24SC and RAC04-24SK/277.

  • single output
  • output: 4W
  • input voltage RAC04-_SK/277: 80 to 305V AC (47 to 63Hz), 110 to 390V DC
  • input voltage RAC04-_SC: 80 to 264V AC (47 to 63Hz), 115 to 370V DC
  • maximal input inrush current RAC04-_SK/277: 20A
  • maximal input inrush current RAC04-_SC: 60A
  • withstand voltage (I/P-O/P) RAC04-_SK/277: 4000V AC / 1min
  • withstand voltage (I/P-O/P) RAC04-_SC: 3000V AC / 1min
  • operating temperature RAC04-_SK/277: -40 to +90°C
  • operating temperature RAC04-_SC: -25 to +85°C
  • dimensions RAC04-_SK/277: 36,7x27,2x17,4mm
  • dimensions RAC04-_SC: 37,8x23,9x16,4mm
  • weight: 30g

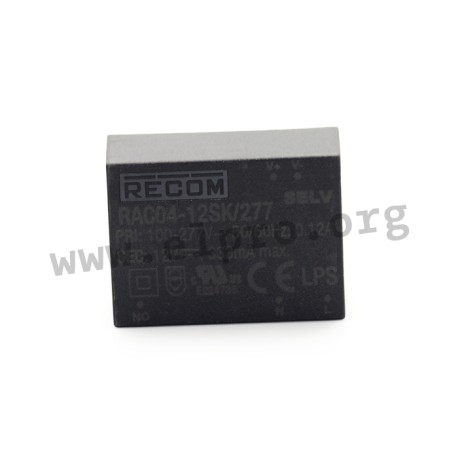

RAC04-24SK/277, Recom AC/DC converters, 4W, PCB, RAC04-K/277 and RAC04-C series

RAC04-24SK/277

126894 RAC04-24SK/277 RAC04-24SK/277 Recom AC/DC converter series RAC04-K/277 and RAC04-C. AC/DC converter modules in a plastic case (enclosed) with 4W and a universal input. These devices are suitable for PCB mounting and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are compliant with EN55014-1, EN61000-3-3 and EN62368-1 (RAC04-_SK/277) resp. EN55032 (RAC04-_SC). We offer the following types of this Recom series: RAC04-3.3SK/277, RAC04-05SK/277, RAC04-12SC, RAC04-12SK/277, RAC04-15SK/277, RAC04-24SC and RAC04-24SK/277. single output output: 4W input voltage RAC04-_SK/277: 80 to 305V AC (47 to 63Hz), 110 to 390V DC input voltage RAC04-_SC: 80 to 264V AC (47 to 63Hz), 115 to 370V DC maximal input inrush current RAC04-_SK/277: 20A maximal input inrush current RAC04-_SC: 60A withstand voltage (I/P-O/P) RAC04-_SK/277: 4000V AC / 1min withstand voltage (I/P-O/P) RAC04-_SC: 3000V AC / 1min operating temperature RAC04-_SK/277: -40 to +90°C operating temperature RAC04-_SC: -25 to +85°C dimensions RAC04-_SK/277: 36,7x27,2x17,4mm dimensions RAC04-_SC: 37,8x23,9x16,4mm weight: 30g

Specifications

manufacturer
Manufacturer's name RAC04-24SK/277
Output voltage [V] 24
Efficiency [%] 80
Output voltage tolerance: [%] 1
Output power [W] 4
Ripple [mVp-p] 240
Output current [mA] 167
Data Sheet

Unit price

10,59 €

Stock: 151
Further delivery:
CW 14/2025
