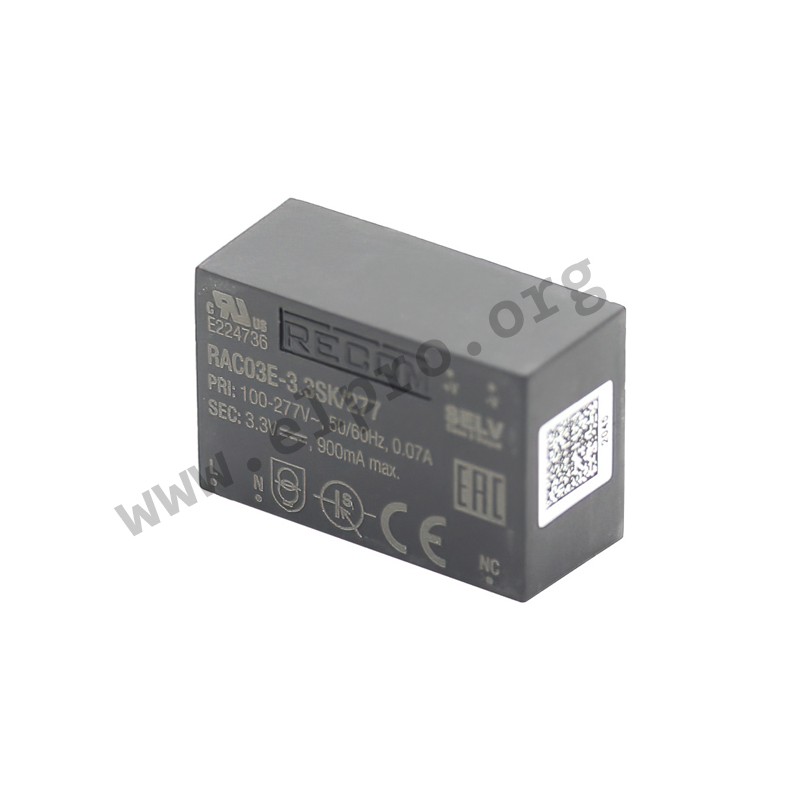

RAC03E-3.3SK/277

Recom AC/DC converter series RAC03E-K/277

AC/DC converters in a plastic housing (enclosed) with 3W, a universal input, a low no-load power consumption and protection class II. These devices have an LPS certification and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with UL62368-1, IEC62368-1, EN62368-1, EN60335-1, IEC61558-1, EN61558-1, IEC61558-2-16, EN61558-2-16, EN60335-1 as well as EN55032 class B. We offer the following types of this Recom series: RAC03E-3.3SK/277, RAC03E-05SK/277, RAC03E-12SK/277, RAC03E-15SK/277 and RAC03E-24SK/277.

  • single output
  • output: 3W
  • input voltage: 85 to 305V AC (47 to 63Hz)
  • input current: 0,05A
  • maximal input inrush current: 20A
  • leakage current: 0,25mA
  • maximal no-load power consumption: 0,075W
  • withstand voltage I/P-O/P: 4000V AC
  • connection type: THT
  • operating temperature: -40 to +85°C
  • dimensions: 37x24x15,4mm
  • weight: 22,8g

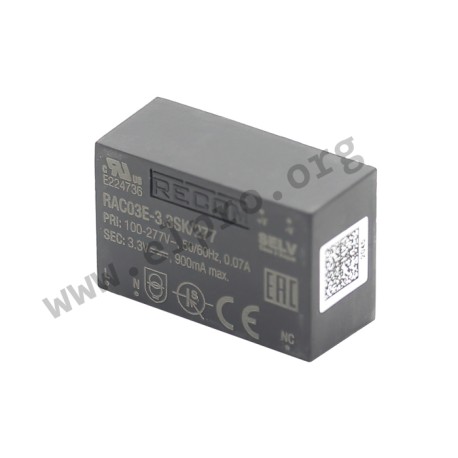

RAC03E-3.3SK/277, Recom AC/DC converters, 3W, PCB, RAC03E-K/277 series

RAC03E-3.3SK/277

236132 RAC03E-3.3SK/277 RAC03E-3.3SK/277 Recom AC/DC converter series RAC03E-K/277. AC/DC converters in a plastic housing (enclosed) with 3W, a universal input, a low no-load power consumption and protection class II. These devices have an LPS certification and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with UL62368-1, IEC62368-1, EN62368-1, EN60335-1, IEC61558-1, EN61558-1, IEC61558-2-16, EN61558-2-16, EN60335-1 as well as EN55032 class B. We offer the following types of this Recom series: RAC03E-3.3SK/277, RAC03E-05SK/277, RAC03E-12SK/277, RAC03E-15SK/277 and RAC03E-24SK/277. single output output: 3W input voltage: 85 to 305V AC (47 to 63Hz) input current: 0,05A maximal input inrush current: 20A leakage current: 0,25mA maximal no-load power consumption: 0,075W withstand voltage I/P-O/P: 4000V AC connection type: THT operating temperature: -40 to +85°C dimensions: 37x24x15,4mm weight: 22,8g

Specifications

manufacturer
Manufacturer's name RAC03E-3.3SK/277
Output voltage [V] 3,3
Efficiency [%] 68
Output current [A] 0,9
Output voltage tolerance: [%] ±1
Output power [W] 3
Ripple [mVp-p] 120
Data Sheet

Unit price

7,39 €

Stock: 9
Further delivery:
CW 10/2025
