RAC03-3.3SER/277

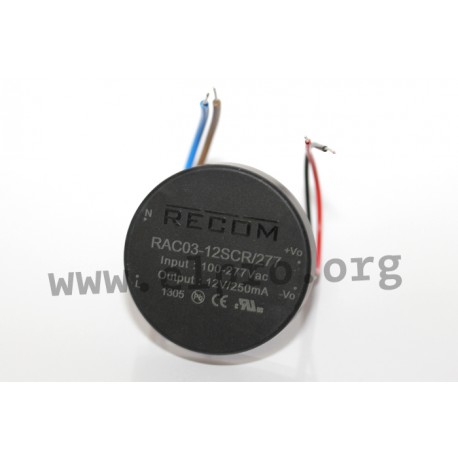

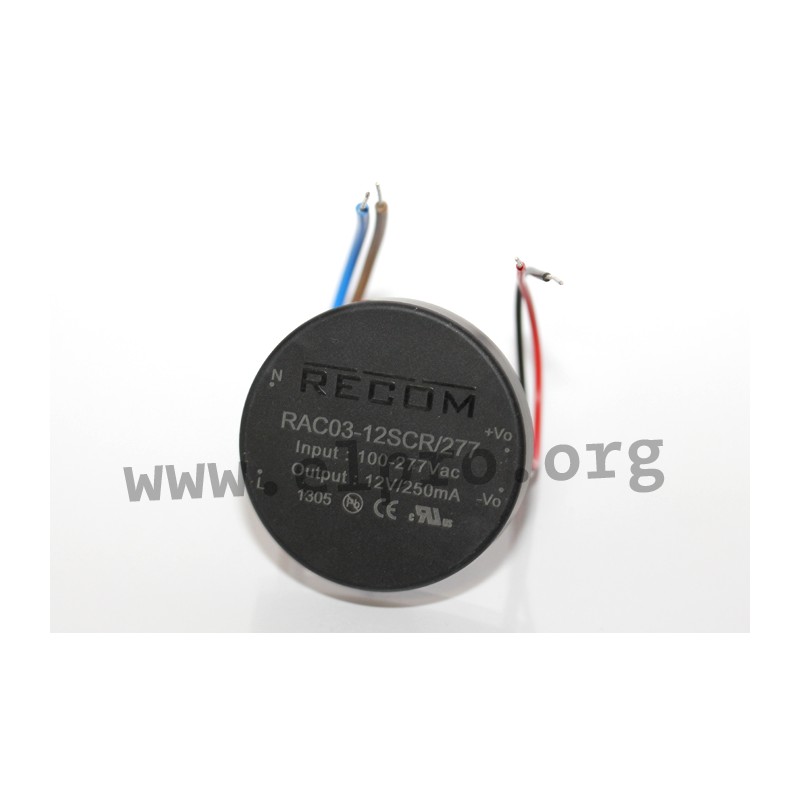

Recom AC/DC converter series RAC03-SER/277

AC/DC converter modules in a round plastic housing with 3W, a low no-load power (<40mW) and a universal input. These devices are suitable for mounting boxes and are protected against overload, overtemperature as well as short circuit. They are suitable for PCB mounting and comply with UL60950-1, EN60335-1, EN55032, EN55024 as well as EN55014. We offer the following types of this Recom series: RAC03-3.3SER/277, RAC03-05SER/277, RAC03-12SER/277 and RAC03-24SER/277.

  • single output
  • output: 3W
  • input voltage: 85 to 305V AC (47 to 440Hz), 120 to 430V DC
  • maximal input inrush current: 30A
  • withstand voltage I/P-O/P: 3000V AC (1min)
  • operating temperature: -40 to +85°C
RAC03_

RAC03-3.3SER/277

105869 RAC03-3.3SER/277 RAC03-3.3SER/277 Recom AC/DC converter series RAC03-SER/277. AC/DC&nbsp;converter modules in a round plastic housing with 3W, a low no-load power (&lt;40mW) and a universal input. These devices are suitable for&nbsp;mounting boxes and are protected against overload, overtemperature as well as short circuit. They are&nbsp;suitable for PCB mounting and&nbsp;comply with&nbsp;UL60950-1, EN60335-1, EN55032, EN55024 as well as EN55014. We&nbsp;offer the following types of this Recom&nbsp;series:&nbsp;RAC03-3.3SER/277, RAC03-05SER/277, RAC03-12SER/277 and RAC03-24SER/277. single output output: 3W input voltage: 85 to 305V AC (47 to 440Hz), 120 to 430V DC maximal input inrush current: 30A withstand voltage&nbsp;I/P-O/P: 3000V AC (1min) operating temperature: -40 to +85&deg;C

Specifications

manufacturer
Manufacturer's name RAC03-3.3SER/277
Output current range [mA] 900
Efficiency [%] 68
Output voltage tolerance: [%] ±4
Output power [W] 3
Ripple [mVp-p] 250
Data Sheet

Unit price

28,69 €

Stock: 0
Next incoming goods:
CW 05/2025
183 units

Further delivery:
CW 45/2025
