RAC03-12SE/277

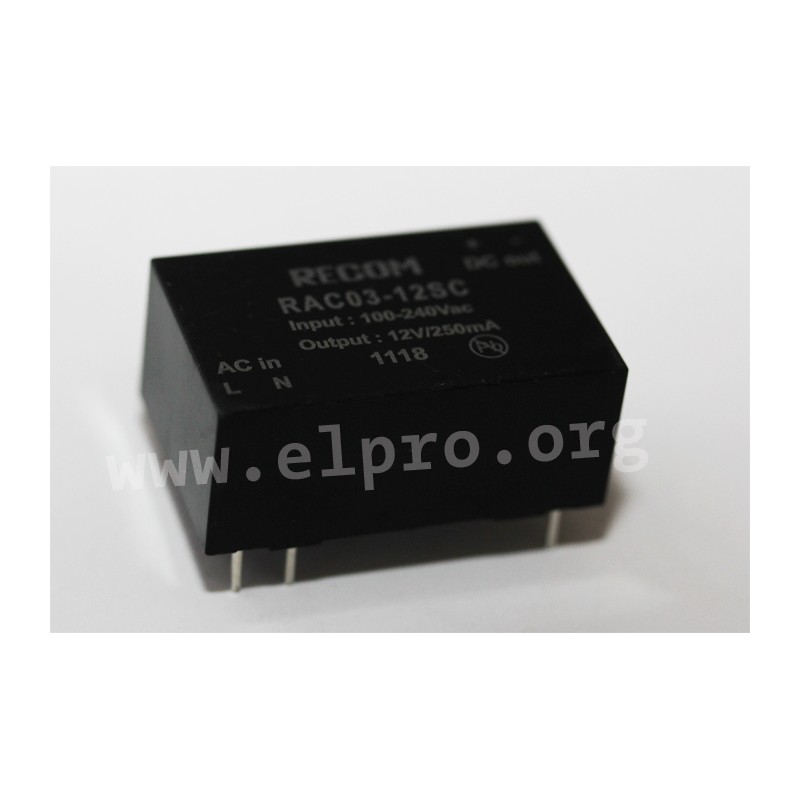

Recom AC/DC converter series RAC03-SC

AC/DC converters in an enclosed plastic housing with 3W, a universal input and a low no-load power. These devices are suitable for PCB mounting, are protected against overload, overtemperature as well as short circuit and comply with EN60950-1, EN60335-1, EN55032/14 as well as EN55024. We offer the following types of this Recom series: RAC03-05SC, RAC03-09SC, RAC03-12SC, RAC03-24SC, RAC03-05SC/277 and RAC03-12SC/277.

  • single output
  • output: 3W
  • input voltage RAC03-_SC: 80 to 264V AC (47 to 63Hz), 115 to 370V DC
  • input voltage RAC03-_SC/277: 85 to 305V AC (47 to 440Hz), 120 to 430V DC
  • maximal input inrush current RAC03-_SC: 60A
  • maximal input inrush current RAC03-_SC/277: 30A
  • withstand voltage I/P-O/P: 3000V AC (1min)
  • operating temperature: -25 to +85°C
  • weight RAC03-_SC: 30g
  • weight RAC03-_SC/277: 28g

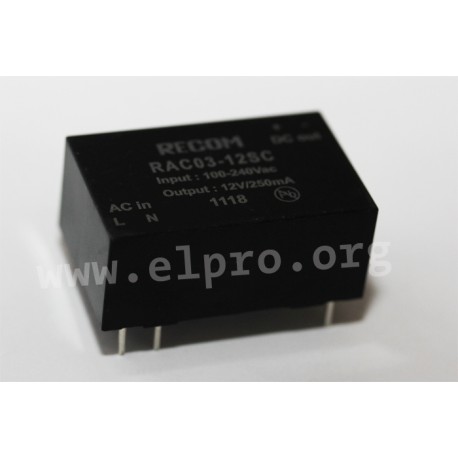

RAC03

RAC03-12SE/277

105873 RAC03-12SE/277 RAC03-12SE/277 Recom AC/DC converter series RAC03-SC. AC/DC converters in an enclosed plastic housing with 3W, a universal input and a low no-load power. These devices are suitable for PCB mounting, are protected against overload, overtemperature as well as short circuit and comply with EN60950-1, EN60335-1, EN55032/14 as well as EN55024. We offer the following types of this Recom series: RAC03-05SC, RAC03-09SC, RAC03-12SC, RAC03-24SC, RAC03-05SC/277 and RAC03-12SC/277. single output output: 3W input voltage RAC03-_SC: 80 to 264V AC (47 to 63Hz), 115 to 370V DC input voltage RAC03-_SC/277: 85 to 305V AC (47 to 440Hz), 120 to 430V DC maximal input inrush current RAC03-_SC: 60A maximal input inrush current RAC03-_SC/277: 30A withstand voltage I/P-O/P: 3000V AC (1min) operating temperature: -25 to +85°C weight RAC03-_SC: 30g weight RAC03-_SC/277: 28g

Specifications

manufacturer
Manufacturer's name RAC03-12SE/277
Output voltage [V] 12
Output current range [mA] 250
Efficiency [%] 78
Output voltage tolerance: [%] 6
Output power [W] 3
Ripple [mVp-p] 200
Data Sheet

Unit price

19,29 €

Stock: 35
Further delivery:
CW 45/2025
