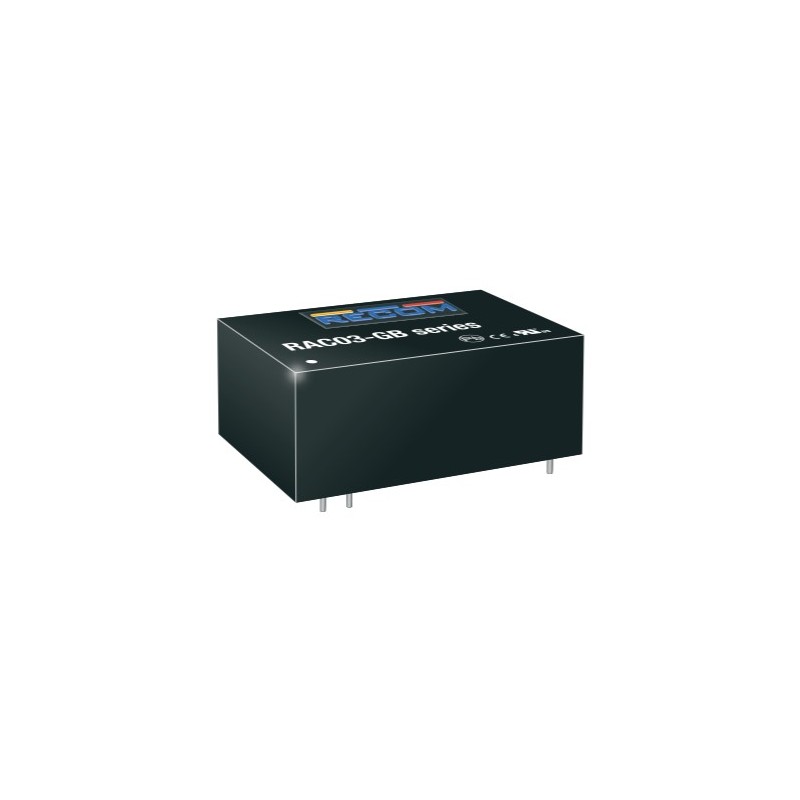

RAC03-05SGB

Recom AC/DC converter series RAC03-GB

AC/DC converter modules in a plastic case with a universal input and a low no-load power consumption. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They comply with EN60950-1 as well as EN55032 class A. We offer the following types of this Recom series: RAC03-05SGB and RAC03-12SGB.

  • single output
  • output: 3W
  • input voltage: 85 to 305V AC (45 to 65Hz), 120 to 430V DC
  • output voltage tolerance: ±2,5%
  • withstand voltage I/P-O/P: 3000V AC / 1min
  • operating temperature: -40 to +85°C
  • dimensions: 37x24x15mm
  • weight: 20g

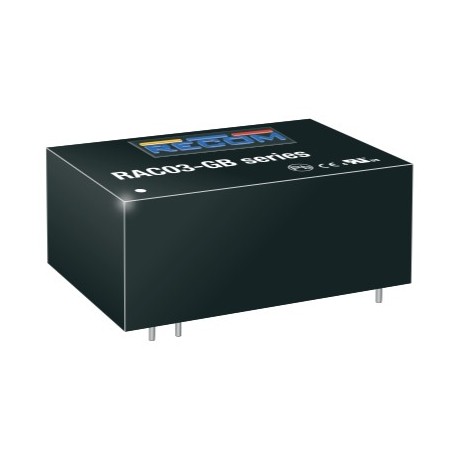

RAC03-05SGB, Recom converter modules, 3W, on board type, RAC03-GB series

RAC03-05SGB

126871 RAC03-05SGB RAC03-05SGB Recom AC/DC converter series RAC03-GB. AC/DC converter modules in a plastic case with a universal input and a low no-load power consumption. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They comply with EN60950-1 as well as EN55032 class A. We offer the following types of this Recom series: RAC03-05SGB and RAC03-12SGB. single output output: 3W input voltage: 85 to 305V AC (45 to 65Hz), 120 to 430V DC output voltage tolerance: ±2,5% withstand voltage I/P-O/P: 3000V AC / 1min operating temperature: -40 to +85°C dimensions: 37x24x15mm weight: 20g

Specifications

manufacturer
Manufacturer's name RAC03-05SGB
Output voltage [V] 5
Efficiency [%] 72
Ripple [mVp-p] 100
Output current [mA] 600
Data Sheet

Unit price

10,79 €

Stock: 37
Further delivery:
CW 14/2025
