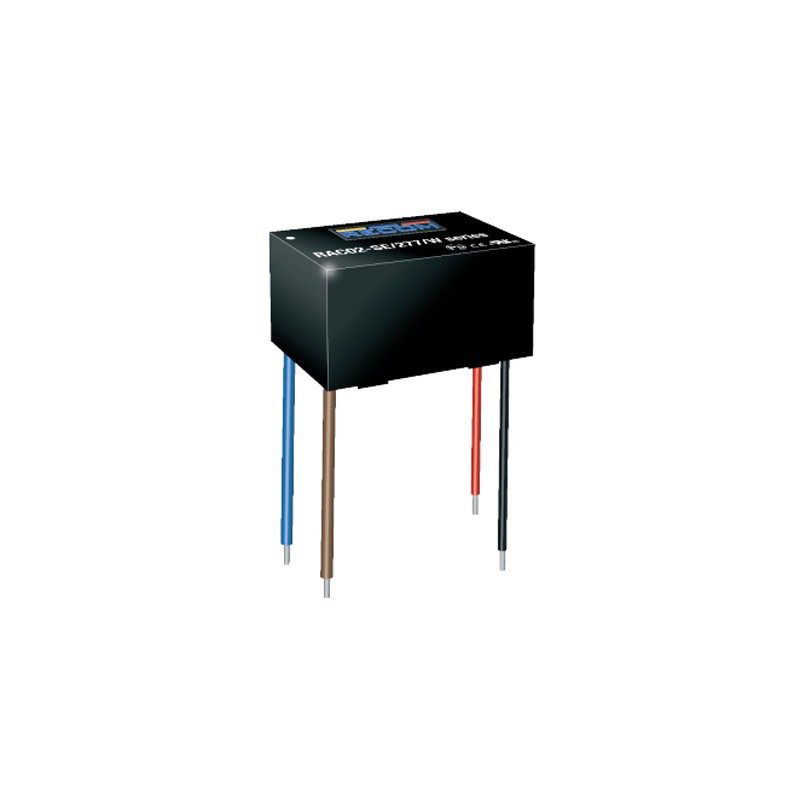

RAC02-24SE/277/W

Recom AC/DC converters series RAC02-SE/277/W

AC/DC converters in a plastic case, with 2W, and protected against overload, over voltage as well as short circuit. They conform with the safety norms EN60950-1, EN60335-1, and with the EMV norms EN55032 class B. We offer the following types of this Recom series: RAC02-05SE/277/W and RAC02-24SE/277/W.

  • single output
  • current: 2W
  • input voltage: 85 to 246V AC (47 to 63Hz)
  • output voltage tolerance: ±6,0%
  • ripple quality: 250mVpp
  • isolation voltage I/P-O/P: 3000V AC/ 1 min.
  • operating temperature: -40 to +75°C
  • dimensions: 33,7x22,2x17,75mm
  • weight: 25g

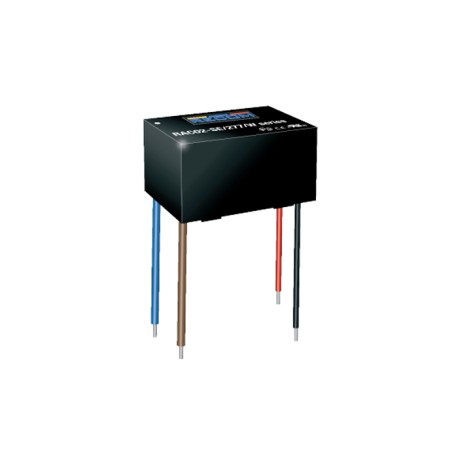

RAC02-24SE/277/W, Recom AC/DC converters, 2W, plastic case, RAC02-SE/277/W series

RAC02-24SE/277/W

247188 RAC02-24SE/277/W RAC02-24SE/277/W Recom AC/DC converters series RAC02-SE/277/W. AC/DC converters in a plastic case, with 2W, and protected against overload, over voltage as well as short circuit. They conform with the safety norms EN60950-1, EN60335-1, and with the EMV norms EN55032 class B. We offer the following types of this Recom series: RAC02-05SE/277/W and RAC02-24SE/277/W. single output current: 2W input voltage: 85 to 246V AC (47 to 63Hz) output voltage tolerance: ±6,0% ripple quality: 250mVpp isolation voltage I/P-O/P: 3000V AC/ 1 min. operating temperature: -40 to +75°C dimensions: 33,7x22,2x17,75mm weight: 25g

Specifications

manufacturer
Manufacturer's name RAC02-24SE/277/W
Output voltage [V] 24
Efficiency [%] 76
Output current [A] 0,083
Data Sheet

Unit price

18,99 €

Stock: 0
Further delivery:
CW 47/2025
