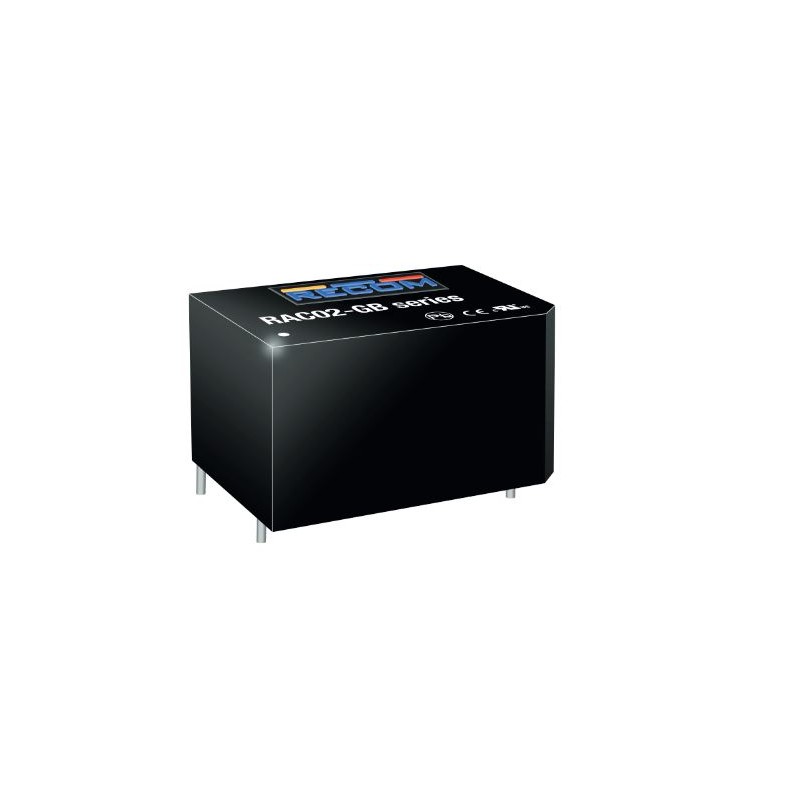

RAC02-12SGB

Recom AC/DC converter series RAC02-GB

AC/DC converter modules in an enclosed plastic housing with 2W, a universal input and a low no-load power. These devices are suitable for PCB mounting, are protected against overcurrent as well as short circuit and comply with EN60950, EN62368 as well as EN55032 class A. We offer the following types of this Recom series: RAC02-3.3SGB, RAC02-05SGB, RAC02-12SGB, RAC02-15SGB and RAC02-24SGB.

  • single output
  • output: 2W
  • input voltage: 85 to 264V AC (47 to 63Hz)
  • output voltage tolerance: ±6%
  • withstand voltage I/P-O/P: 3000V DC
  • operating temperature: -25 to +70°C
  • dimensions: 33,7x22,2x19mm
  • weight: 12g

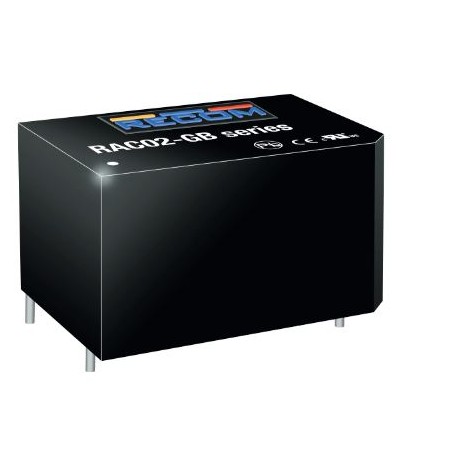

RAC02-12SGB, Recom AC/DC converters, 2W, PCB, RAC02-GB series

RAC02-12SGB

126861 RAC02-12SGB RAC02-12SGB Recom AC/DC converter series RAC02-GB. AC/DC converter modules in an enclosed plastic housing with 2W, a universal input and a low no-load power. These devices are suitable for PCB mounting, are protected against overcurrent as well as short circuit and comply with EN60950, EN62368 as well as EN55032 class A. We offer the following types of this Recom series: RAC02-3.3SGB, RAC02-05SGB, RAC02-12SGB, RAC02-15SGB and RAC02-24SGB. single output output: 2W input voltage: 85 to 264V AC (47 to 63Hz) output voltage tolerance: ±6% withstand voltage I/P-O/P: 3000V DC operating temperature: -25 to +70°C dimensions: 33,7x22,2x19mm weight: 12g

Specifications

manufacturer
Manufacturer's name RAC02-12SGB
Output voltage [V] 12
Efficiency [%] 68
Output voltage tolerance: [%] 6
Output power [W] 2
Ripple [mV] 200
Output current [mA] 167
Data Sheet

Unit price

8,99 €

Stock: 37
Further delivery:
CW 14/2025
