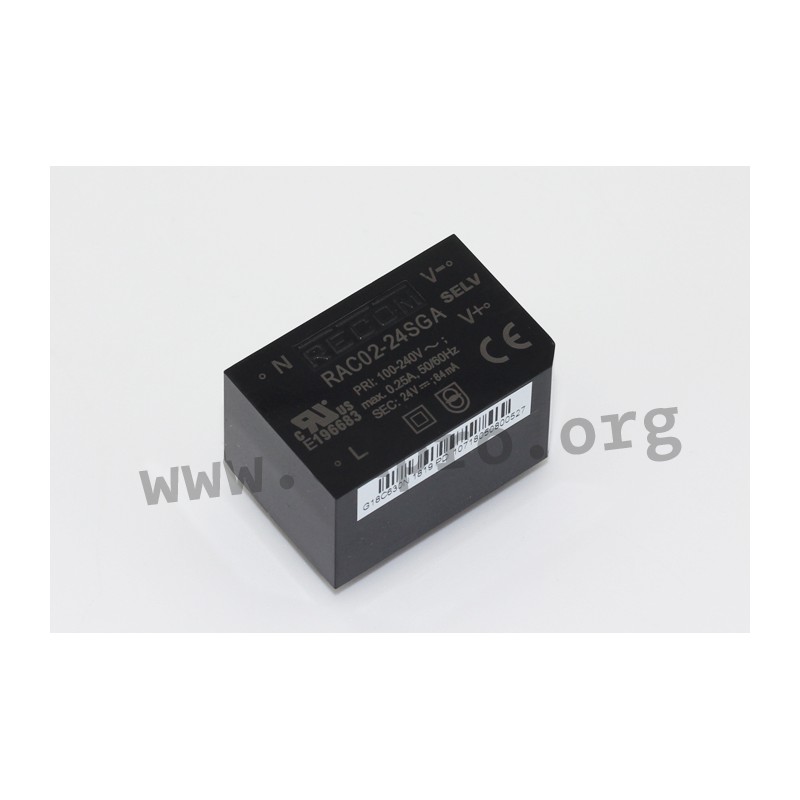

RAC02-24SGA

Recom AC/DC converter series RAC02-GA

AC/DC converter modules in an enclosed plastic housing with 2W, a low no-load power and a universal input. These devices are suitable for direct PCB mounting, are protected against overcurrent as well as short circuit and comply with EN62368-1, EN61000-3-3 as well as EN55032 class A. We offer the following types of this Recom series: RAC02-3.3SGA, RAC02-05SGA, RAC02-12SGA, RAC02-15SGA and RAC02-24SGA.

  • single output
  • output: 2W
  • input voltage: 85 to 264V AC (47 to 63Hz)
  • output voltage tolerance: ±6%
  • withstand voltage I/P-O/P: 3000V AC (1min)
  • operating temperature: -25 to +80°C
  • dimensions: 33,7x22,2x19mm
  • weight: 12g

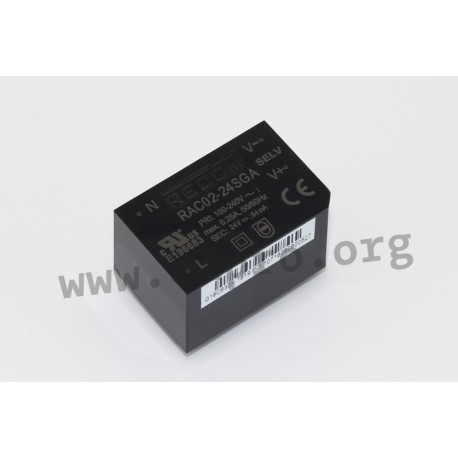

RAC02-24SGA, Recom, output 2 watts, single output, On-Board-Type, RAC02-GA series by Recom

RAC02-24SGA

112636 RAC02-24SGA RAC02-24SGA Recom AC/DC converter series RAC02-GA. AC/DC converter modules in an enclosed plastic housing with 2W, a low no-load power and a universal input. These devices are suitable for direct PCB mounting, are protected against overcurrent as well as short circuit and comply with EN62368-1, EN61000-3-3 as well as EN55032 class A. We offer the following types of this Recom series: RAC02-3.3SGA, RAC02-05SGA, RAC02-12SGA, RAC02-15SGA and RAC02-24SGA. single output output: 2W input voltage: 85 to 264V AC (47 to 63Hz) output voltage tolerance: ±6% withstand voltage I/P-O/P: 3000V AC (1min) operating temperature: -25 to +80°C dimensions: 33,7x22,2x19mm weight: 12g

Specifications

manufacturer
Manufacturer's name RAC02-24SGA
Output voltage [V] 24
Efficiency [%] 63
Output voltage tolerance: [%] 6
Output power [W] 2
Ripple [mV] 240
Output current [mA] 83
Data Sheet

Unit price

8,99 €

Stock: 18
Further delivery:
CW 10/2025
