RAC01-09SC

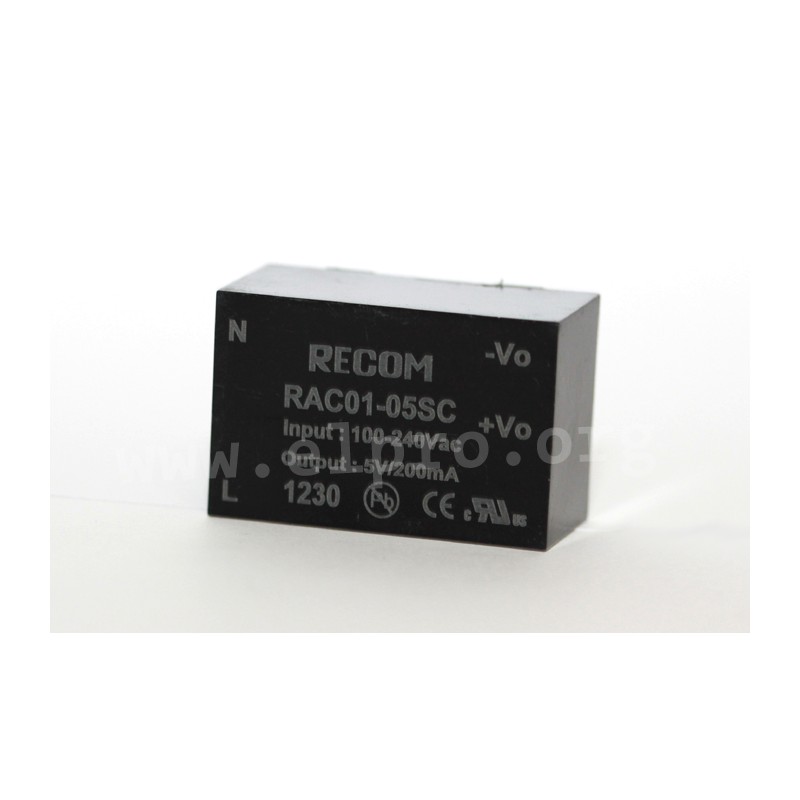

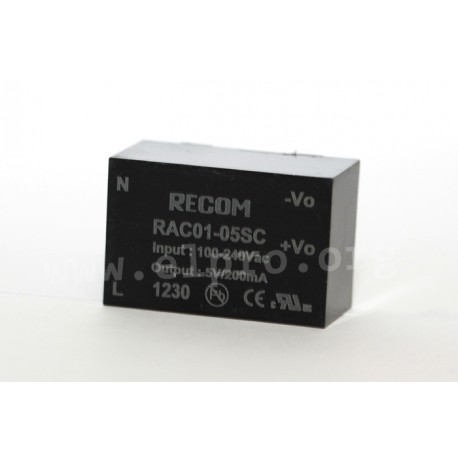

Recom AC/DC converter series RAC01

AC/DC converter modules in an enclosed plastic housing with 1W, a universal input and a low no-load power consumption. These devices are suitable for PCB mounting and are protected against overload, overtemperature as well as short circuit. We offer the following types of this Recom series: RAC01-3.3SC, RAC01-05SC, RAC01-09SC, RAC01-12SC and RAC01-24SC.

  • single output
  • output: 1W
  • input voltage: 80 to 264V AC (47 to 63Hz), 115 to 370V DC
  • maximal input inrush current: 30/60A (<0,5ms)
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -25 to +80°C
  • weight: 25g

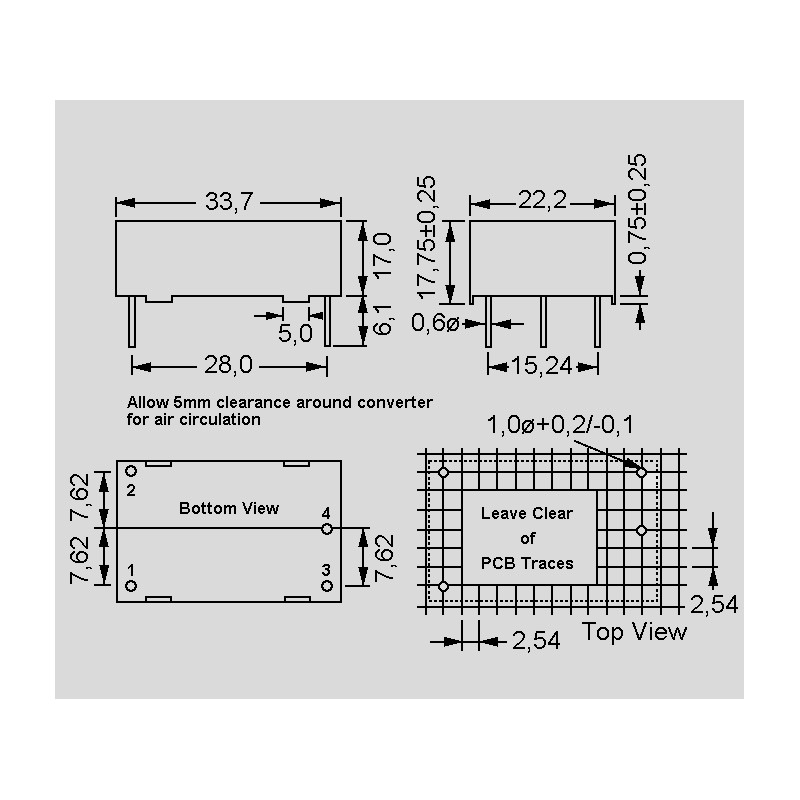

dimensions

RAC01-09SC

37084 RAC01-09SC RAC01-09SC Recom AC/DC converter series RAC01. AC/DC converter modules in an enclosed plastic housing with 1W, a universal input and a low no-load power consumption. These devices are suitable for&nbsp;PCB mounting and are&nbsp;protected against overload, overtemperature as well as short&nbsp;circuit. We offer the following types of this Recom series:&nbsp;RAC01-3.3SC, RAC01-05SC, RAC01-09SC, RAC01-12SC and RAC01-24SC. single output output: 1W input voltage: 80 to 264V AC (47 to 63Hz), 115 to 370V DC maximal input inrush current: 30/60A (&lt;0,5ms) withstand voltage I/P-O/P: 3000V AC operating temperature: -25 to +80&deg;C weight: 25g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name RAC01-09SC
Output voltage [V] 9
Phase 2 phase
Output current range [mA] 111
Efficiency [%] 70
Output voltage tolerance: [%] 5
Output power [W] 1
Ripple [mVp-p] 100
Data Sheet

Unit price

12,99 €

Stock: 17
