RAC01-3.3SGB

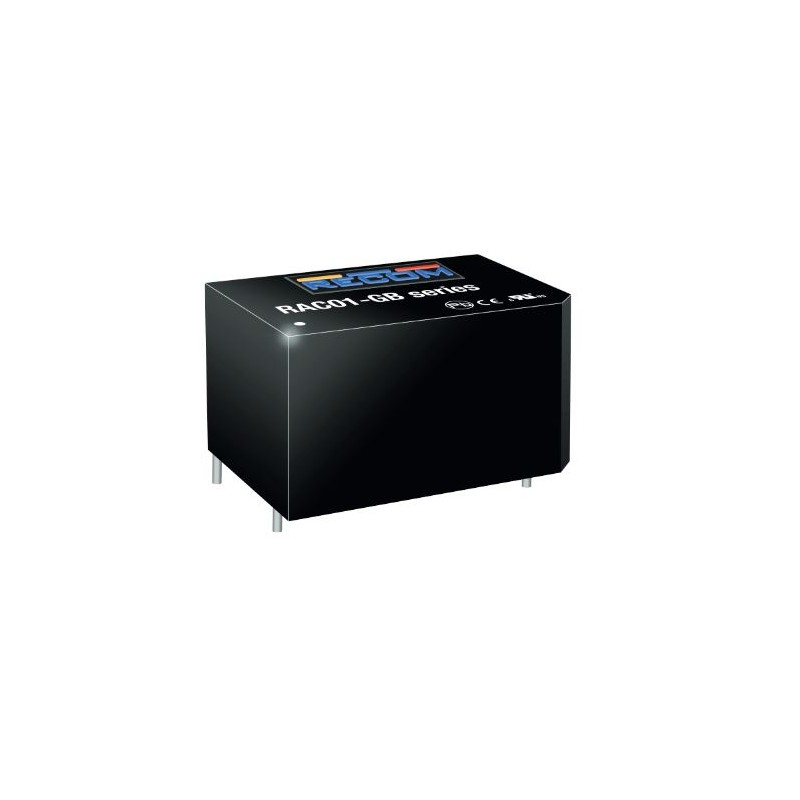

Recom AC/DC converter series RAC01-GB

AC/DC converter modules in an enclosed plastic housing with 1W, a universal input and a low no-load power (<250mW). These devices are suitable for PCB mounting, are protected against overload, overcurrent as well as short circuit (continuous) and comply with UL60950-1, EN62368-1 as well as EN61000-3-3. We offer the following types of this Recom series: RAC01-3.3SGB, RAC01-05SGB and RAC01-24SGB.

  • single output
  • output: 1W
  • input voltage: 85 to 264V AC (47 to 63Hz)
  • output voltage tolerance: ±6%
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -25 to +70°C
  • dimensions: 33,7x22,2x19mm
  • weight: 12g

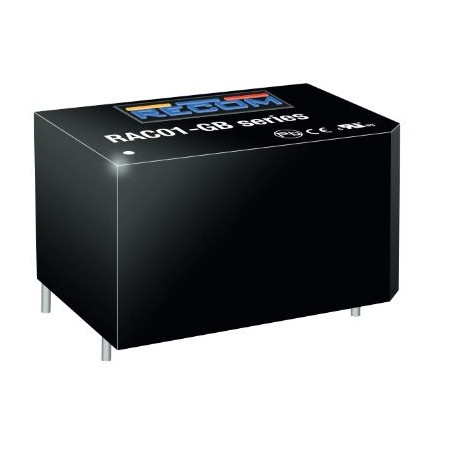

Recom RAC01-GB series

RAC01-3.3SGB

112632 RAC01-3.3SGB RAC01-3.3SGB Recom AC/DC converter series RAC01-GB. AC/DC converter modules in an enclosed plastic housing with 1W, a universal input and a low no-load power (&lt;250mW). These devices are suitable for PCB mounting, are protected against overload, overcurrent as well as short&nbsp;circuit (continuous) and comply with&nbsp;UL60950-1, EN62368-1 as well as EN61000-3-3. We offer the following types of this Recom series:&nbsp;RAC01-3.3SGB, RAC01-05SGB and RAC01-24SGB. single output output: 1W input voltage: 85 to 264V AC (47 to 63Hz) output voltage tolerance:&nbsp;&plusmn;6% withstand voltage I/P-O/P: 3000V AC operating temperature: -25 to +70&deg;C dimensions: 33,7x22,2x19mm weight: 12g

Specifications

manufacturer
Manufacturer's name RAC01-3.3SGB
Output voltage [V] 3,3
Efficiency [%] 63
Output voltage tolerance: [%] 6
Output power [W] 1
Ripple [mV] 100
Output current [mA] 303
Data Sheet

Unit price

8,09 €

Stock: 100
Further delivery:
CW 10/2025
