RAC01-05SGA

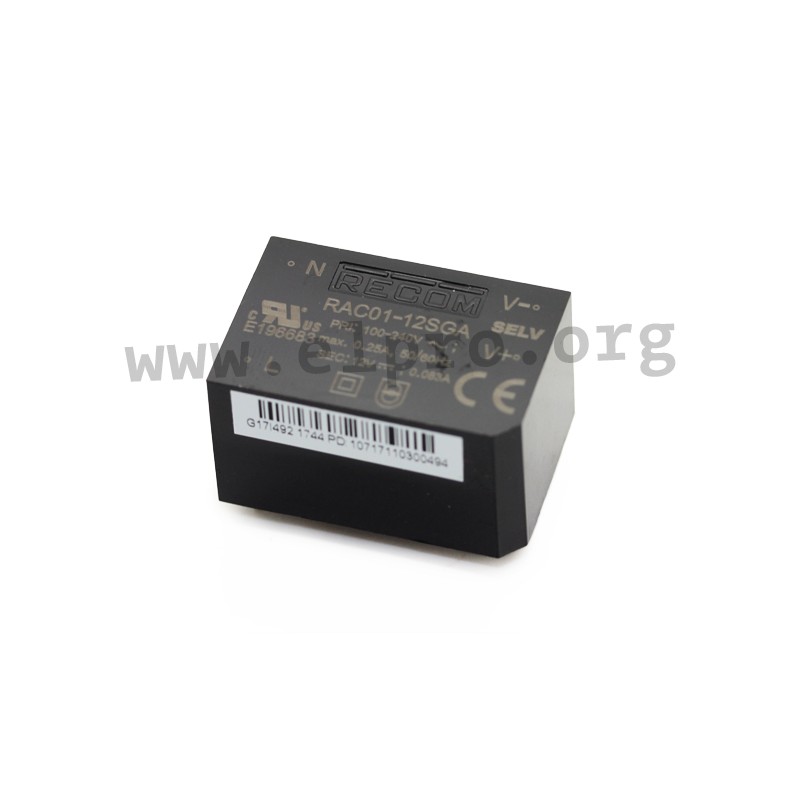

Recom AC/DC converter series RAC01-GA

AC/DC converter modules in an enclosed plastic case (enclosed) with a universal input and a low no-load power consumption. These devices are suitable for PCB mounting, are protected against short circuit and comply with EN60950-1, EN60335-1 as well as EN55032 class A. We offer the following types of this Recom series: RAC01-05SGA and RAC01-12SGA.

  • single output
  • output: 1W
  • input voltage: 85 to 264V AC (47 to 63Hz)
  • voltage accuracy: ±6%
  • withstand voltage I/P-O/P: 3000V AC / 1min
  • operating temperature: -25 to +70°C
  • dimensions: 33,7x22,2x19,0mm
  • weight: 12g

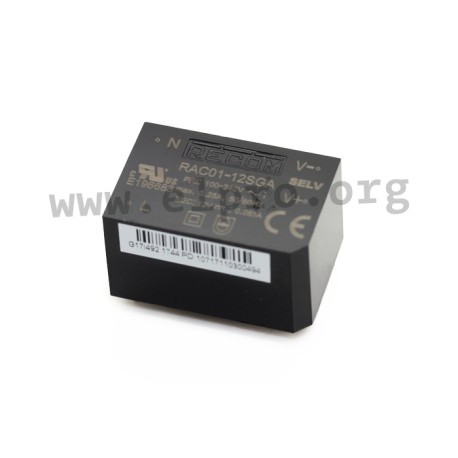

RAC01-05SGA, Recom AC/DC converters, 1W, PCB, RAC01-GA series

RAC01-05SGA

126855 RAC01-05SGA RAC01-05SGA Recom AC/DC converter series RAC01-GA. AC/DC converter modules in an enclosed plastic case (enclosed) with a universal input and a low no-load power consumption. These devices are suitable for PCB mounting, are protected against short circuit and comply with EN60950-1, EN60335-1 as well as EN55032 class A. We offer the following types of this Recom series: RAC01-05SGA and RAC01-12SGA. single output output: 1W input voltage: 85 to 264V AC (47 to 63Hz) voltage accuracy: ±6% withstand voltage I/P-O/P: 3000V AC / 1min operating temperature: -25 to +70°C dimensions: 33,7x22,2x19,0mm weight: 12g

Specifications

manufacturer
Manufacturer's name RAC01-05SGA
Ripple & noise [mVrms] 100
Output voltage [V] 5
Efficiency [%] 63
Output current [mA] 200
Data Sheet

Unit price

8,09 €

Stock: 18
Further delivery:
CW 10/2025
