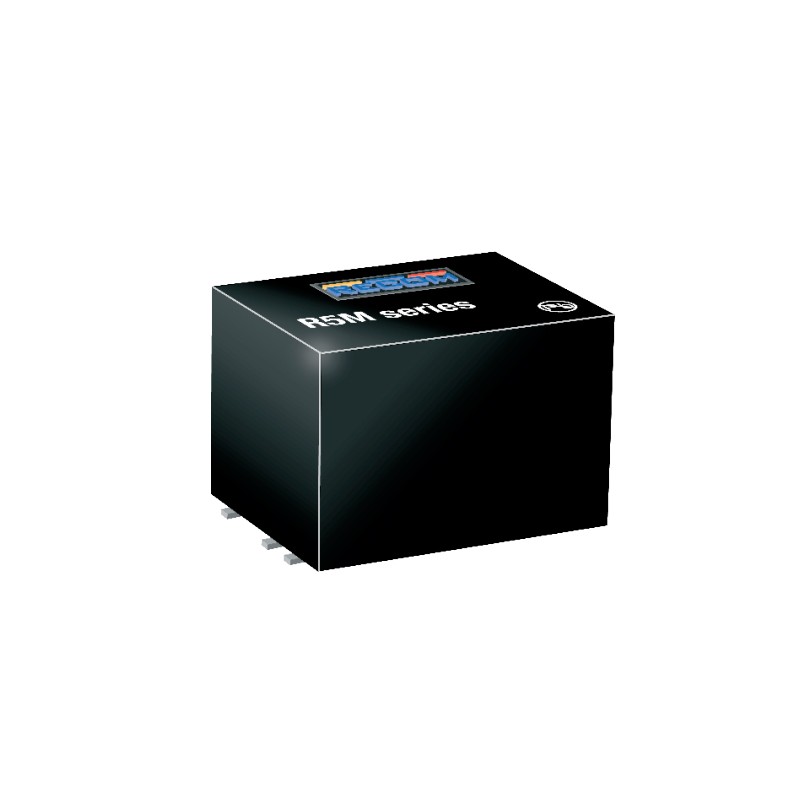

R5M-2412S/SMD

Recom DC/DC converter series R5M

DC/DC voltage converters in an SMD housing with 5W and a regulated output. These devices are suitable for direct PCB mounting and are protected against short circuit (continuous). They have an input voltage ratio of 4:1, require no minimum load and comply with EN55032 class A as well as class B. We offer the following types of this Recom series: R5M-2405S/SMD, R5M-2412D/SMD, R5M-2412S/SMD, R5M-2415D/SMD, R5M-2415S/SMD and R5M-243.3S/SMD.

  • single (R5M-_S/SMD) and dual output (R5M-_D/SMD)
  • output: 5W
  • output tolerance: ±1%
  • maximal ripple and noise: 50mVpp
  • withstand voltage I/P-O/P: 1600V DC
  • operating temperature: -40 to +105°C
  • dimensions: 14,2x9,1x10,2mm
  • weight: 2,7g

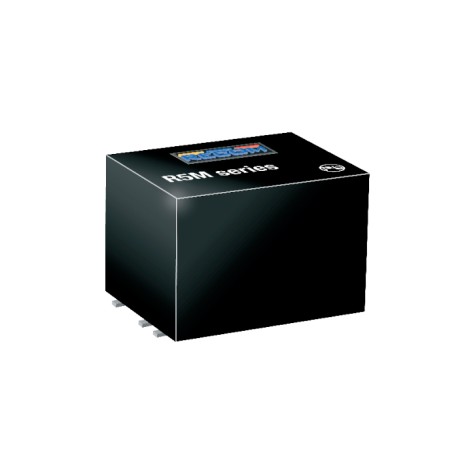

R5M-2412S/SMD, Recom DC/DC converters, 5W, SMD, R5M series

R5M-2412S/SMD

242834 R5M-2412S/SMD R5M-2412S/SMD Recom DC/DC converter series R5M. DC/DC voltage converters in an SMD housing with 5W and a regulated output. These devices are suitable for direct PCB mounting and are protected against short circuit (continuous). They have an input voltage ratio of 4:1, require no minimum load and comply with EN55032 class A as well as class B. We offer the following types of this Recom series: R5M-2405S/SMD, R5M-2412D/SMD, R5M-2412S/SMD, R5M-2415D/SMD, R5M-2415S/SMD and R5M-243.3S/SMD. single (R5M-_S/SMD) and dual output (R5M-_D/SMD) output: 5W output tolerance: ±1% maximal ripple and noise: 50mVpp withstand voltage I/P-O/P: 1600V DC operating temperature: -40 to +105°C dimensions: 14,2x9,1x10,2mm weight: 2,7g

Specifications

manufacturer
Manufacturer's name R5M-2412S/SMD
Input voltage [V] 9...36
Output voltage [V] 12
Output current [mA] 420
Efficiency [%] 85
Data Sheet

Unit price

26,59 €

Stock: 19
Further delivery:
CW 05/2025
