R3M-2412S/SMD

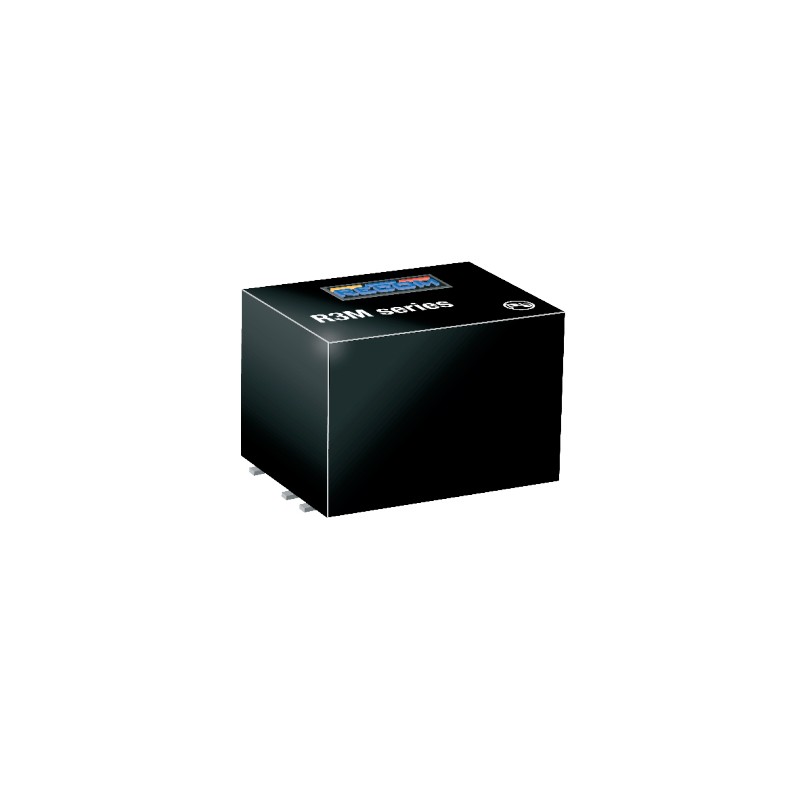

Recom DC/DC converter series R3M

DC/DC converters in an SMD housing with 3W, an input voltage ratio of 4:1 and a regulated output. These devices are suitable for direct PCB mounting (SMD) and are protected against short circuit (continuous). They have an efficiency of up to 84% and comply with EN55032 class A/B. We offer the following types of this Recom series: R3M-1205S/SMD, R3M-2405S/SMD, R3M-2412D/SMD, R3M-2412S/SMD, R3M-2415D/SMD and R3M-2415S/SMD.

  • single (R3M-_S/SMD) and dual output (R3M-_D/SMD)
  • output: 3W
  • maximal ripple and noise: 50mVpp
  • withstand voltage I/P-O/P: 1600V DC
  • operating temperature: -40 to +105°C
  • dimensions: 14,2x9,1x10,2mm
  • weight: 2,7g

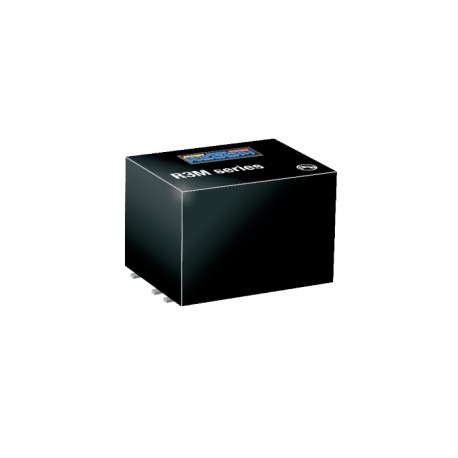

R3M-2412S/SMD, Recom DC/DC converters, 3W, SMD, R3M series

R3M-2412S/SMD

242826 R3M-2412S/SMD R3M-2412S/SMD Recom DC/DC converter series R3M. DC/DC converters in an SMD housing with 3W, an input voltage ratio of 4:1 and a regulated output. These devices are suitable for direct PCB mounting (SMD) and are protected against short circuit (continuous). They have an efficiency of up to 84% and comply with EN55032 class A/B. We offer the following types of this Recom series: R3M-1205S/SMD, R3M-2405S/SMD, R3M-2412D/SMD, R3M-2412S/SMD, R3M-2415D/SMD and R3M-2415S/SMD. single (R3M-_S/SMD) and dual output (R3M-_D/SMD) output: 3W maximal ripple and noise: 50mVpp withstand voltage I/P-O/P: 1600V DC operating temperature: -40 to +105°C dimensions: 14,2x9,1x10,2mm weight: 2,7g

Specifications

manufacturer
Manufacturer's name R3M-2412S/SMD
Input voltage [V] 9...36
Output voltage [V] 12
Output current [mA] 250
Efficiency [%] 83
Output voltage tolerance: [%] ±1
Data Sheet

Unit price

23,19 €

Stock: 20
Further delivery:
CW 11/2025
