R2SX-0505-TRAY

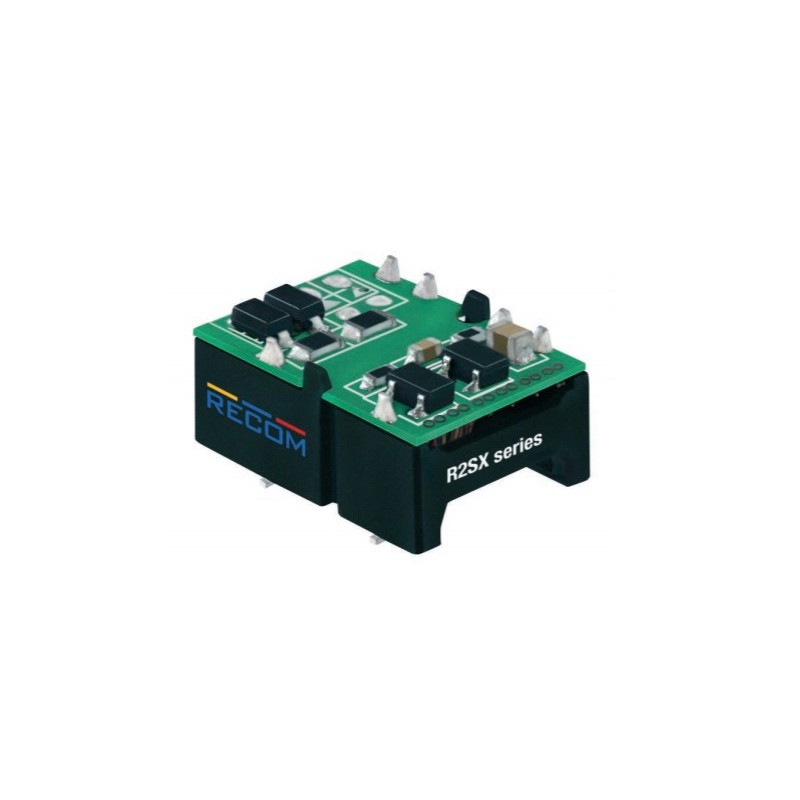

Recom DC/DC converter series R2SX

Isolated DC/DC converters in an SMD housing for direct PCB mounting. These devices have an open-frame design and do not require a minimum load. They also comply with EN62368 and EN55032 Class B. We offer the following types of this Recom series: R2SX-053.3-TRAY, R2SX-0505-TRAY, R2SX-0505/H-TRAY, R2SX-2405-TRAY, R2SX-2405/H-TRAY, R2SX-2415-TRAY and R2SX-2424-TRAY.

  • single output
  • output: 2W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 150mVpp
  • withstand voltage (I/P-O/P) R2SX-_: 1000V DC
  • withstand voltage (I/P-O/P) R2SY-_/H: 3000V DC
  • operating temperature: -40 to +75°C
  • dimensions: 15,24x11,1x8mm
  • weight: 1,6g

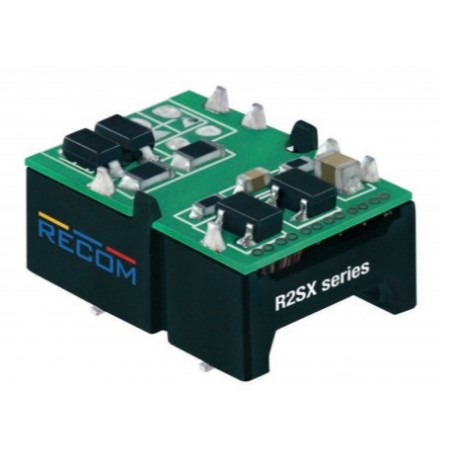

R2SX-0505-TRAY, Recom, 2 watts, SMD housing, R2SX series

R2SX-0505-TRAY

118076 R2SX-0505-TRAY R2SX-0505-TRAY Recom DC/DC converter series R2SX. Isolated DC/DC converters in an SMD housing for direct PCB mounting. These devices have an open-frame design and do not require a minimum load. They also comply with EN62368 and EN55032 Class B. We offer the following types of this Recom series: R2SX-053.3-TRAY, R2SX-0505-TRAY, R2SX-0505/H-TRAY, R2SX-2405-TRAY, R2SX-2405/H-TRAY, R2SX-2415-TRAY and R2SX-2424-TRAY. single outputoutput: 2Woutput voltage tolerance: ±5%maximal ripple and noise: 150mVppwithstand voltage (I/P-O/P) R2SX-_: 1000V DCwithstand voltage (I/P-O/P) R2SY-_/H: 3000V DCoperating temperature: -40 to +75°Cdimensions: 15,24x11,1x8mmweight: 1,6g

Specifications

manufacturer
Manufacturer's name R2SX-0505-TRAY
Input voltage [V] 5
Output voltage [V] 5
Output current [mA] 400
Efficiency [%] 81
Data Sheet

Unit price

6,19 €

Stock: 29
Further delivery:
CW 07/2025
