R2S-2424

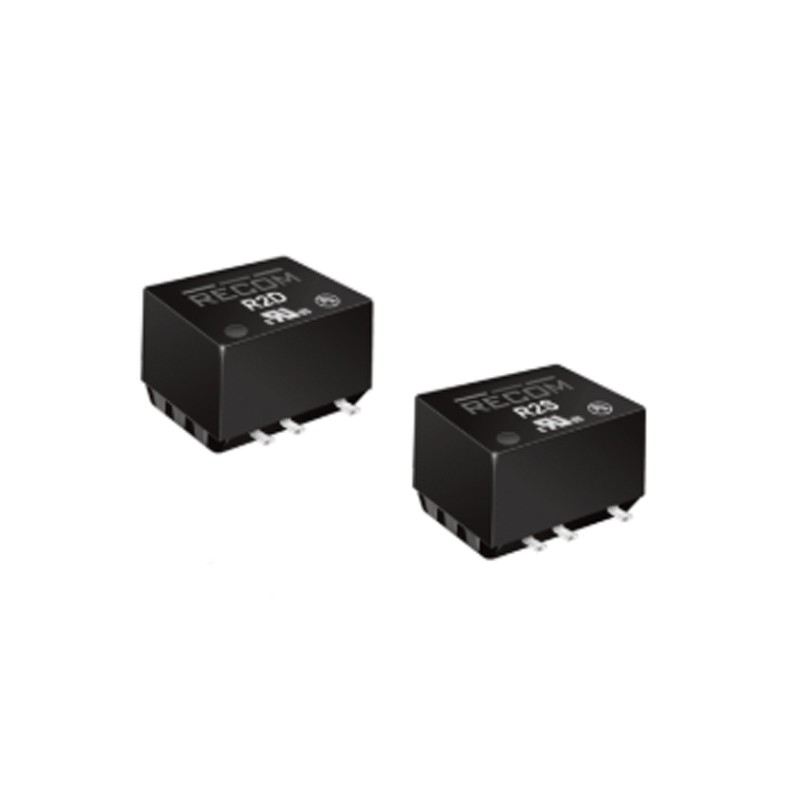

Recom DC/DC converters series R2S

These DC/DC converters with a current of 2W come in a SMD housing and are suitable for direct PCB mounting. These devices conform with the safety norms UL60950-1, EN 60950-1, and EN-60601-1 (only for /H version), as well as the type R2S-_P has a protection against short circuit. We offer the following types of this Recom series: R2S-2424 and R2S-2424/HP.

  • current: 2W
  • single output
  • maximal output voltage tolerance: ±5%
  • maximal ripple quality: 150 mVpp
  • isolation voltage: 1000V DC, 3000V DC (R2S_/H)
  • operating temperature: -40 to +100°C
  • dimensions: 12,75x10,7x8,7 mm
  • weight: 1,4g

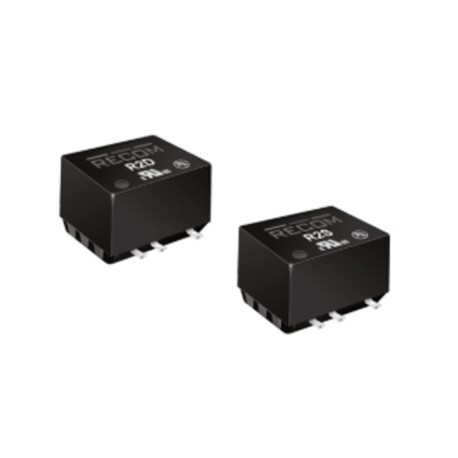

R2S-2424, Recom DC/DC converters, 2W, SMD housing, R2S series

R2S-2424

247024 R2S-2424 R2S-2424 Recom DC/DC converters series R2S. These DC/DC converters with a current of 2W come in a SMD housing and are suitable for direct PCB mounting. These devices conform with the safety norms UL60950-1, EN 60950-1, and EN-60601-1 (only for /H version), as well as the type R2S-_P has a protection against short circuit. We offer the following types of this Recom series: R2S-2424 and R2S-2424/HP. current: 2W single output maximal output voltage tolerance: ±5% maximal ripple quality: 150 mVpp isolation voltage: 1000V DC, 3000V DC (R2S_/H) operating temperature: -40 to +100°C dimensions: 12,75x10,7x8,7 mm weight: 1,4g

Specifications

manufacturer
Manufacturer's name R2S-2424
Output voltage [V] 24
Input voltage range [V] 24
Output current range [mA] 83
Efficiency [%] 76...85
Data Sheet

Unit price

13,29 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 39 units or
multiples of 39.
