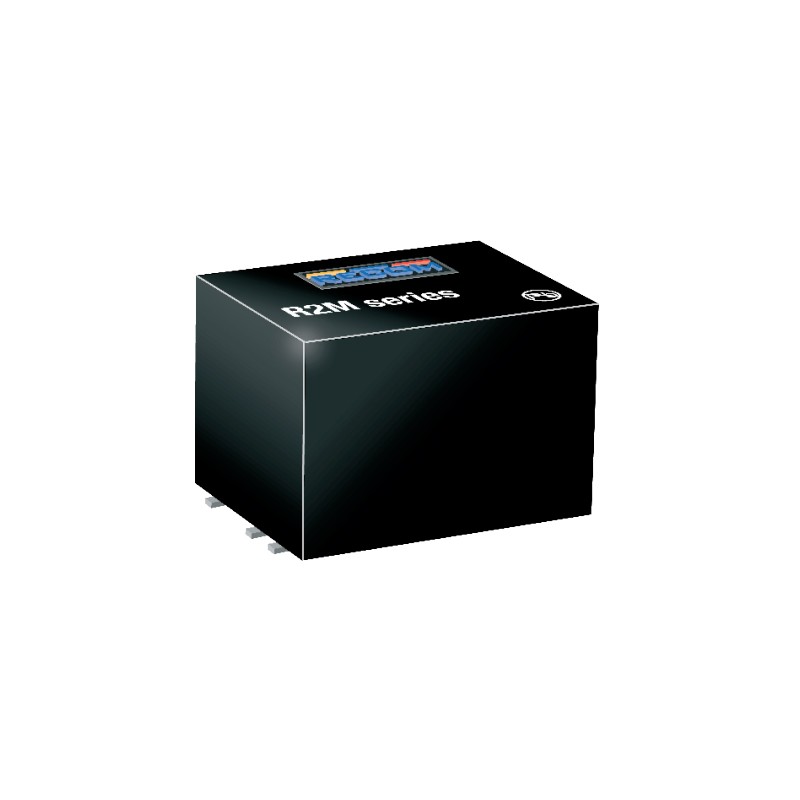

R2M-2412S/SMD

Recom DC/DC converter series R2M

DC/DC voltage converters in an SMD housing with 2W and a regulated output. These devices are suitable for direct PCB mounting (SMD) and are protected against short circuit (continuous). They have a single (R2M-_S/SMD) resp. dual output (R2M-_D/SMD) as well as an input voltage ratio of 4:1. We offer the following types of this Recom series: R2M-1205S/SMD, R2M-2405S/SMD, R2M-2412DD/SMD, R2M-2412S/SMD and R2M-2415D/SMD.

  • single (R2M-_S/SMD) and dual output (R2M-_D/SMD)
  • output: 2W
  • output tolerance: ±1%
  • withstand voltage I/P-O/P: 1600V DC
  • operating temperature: -40 to +85°C
  • dimensions: 14,2x9,1x10,2mm
  • weight: 2,7g

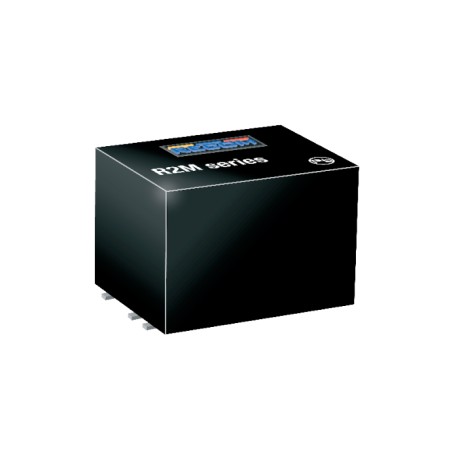

R2M-2412S/SMD, Recom DC/DC converters, 2W, SMD, R2M series

R2M-2412S/SMD

242817 R2M-2412S/SMD R2M-2412S/SMD Recom DC/DC converter series R2M. DC/DC voltage converters in an SMD housing with 2W and a regulated output. These devices are suitable for direct PCB mounting (SMD) and are protected against short circuit (continuous). They have a single (R2M-_S/SMD) resp. dual output (R2M-_D/SMD) as well as an input voltage ratio of 4:1. We offer the following types of this Recom series: R2M-1205S/SMD, R2M-2405S/SMD, R2M-2412DD/SMD, R2M-2412S/SMD and R2M-2415D/SMD. single (R2M-_S/SMD) and dual output (R2M-_D/SMD) output: 2W output tolerance: ±1% withstand voltage I/P-O/P: 1600V DC operating temperature: -40 to +85°C dimensions: 14,2x9,1x10,2mm weight: 2,7g

Specifications

manufacturer
Manufacturer's name R2M-2412S/SMD
Input voltage [V] 9...36
Output voltage [V] 12
Output current [mA] 167
Efficiency [%] 81
Ripple [mVp-p] 50
Data Sheet

Unit price

20,39 €

Stock: 20
Further delivery:
CW 11/2025
