R2M-2412S

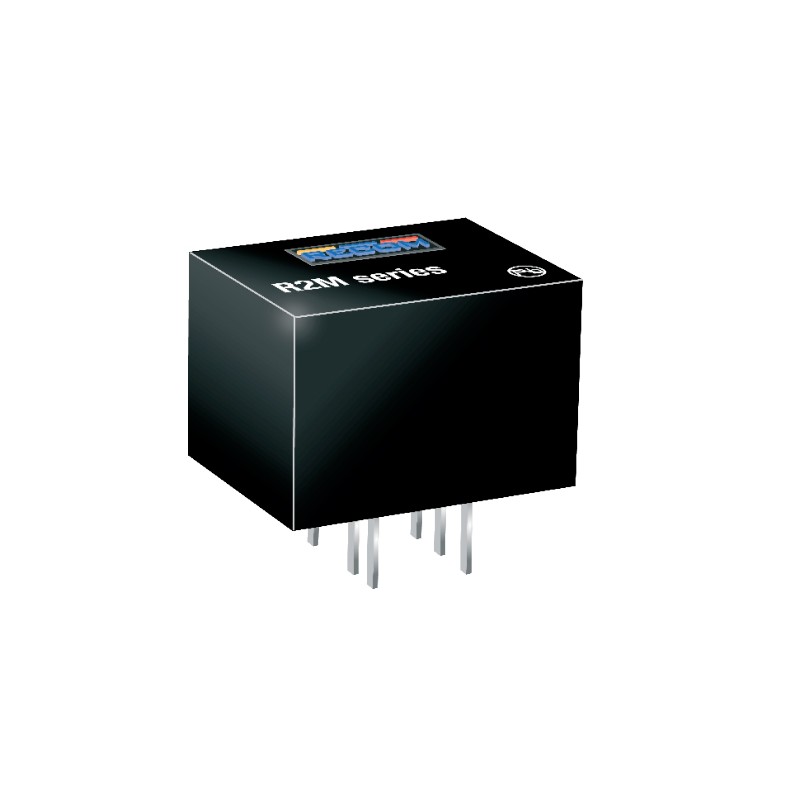

Recom DC/DC converter series R2M

DC/DC converter modules in a DIL8 housing with 2W and a regulated output. These devices have a single (R2M-_S) resp. dual output (R2M-_D) and are protected against short circuit (continuous). They are suitable for PCB mounting and have an input voltage ratio of 4:1. We offer the following types of this Recom series: R2M-1205S, R2M-2405S, R2M-2412D, R2M-2412S and R2M-2415D.

  • single (R2M-_S) and dual output (R2M-_D)
  • output: 2W
  • output tolerance: ±1%
  • withstand voltage I/P-O/P: 1600V DC
  • operating temperature: -40 to +85°C
  • dimensions: 14,2x9,1x10,2mm
  • weight: 2,7g
R2M-2412S, Recom DC/DC converters, 2W, DIL8 housing, R2M series

R2M-2412S

242816 R2M-2412S R2M-2412S Recom DC/DC converter series R2M. DC/DC converter modules in a DIL8 housing with 2W and a regulated output. These devices have a single (R2M-_S) resp. dual output (R2M-_D) and are protected against short circuit (continuous). They are suitable for PCB mounting and have an input voltage ratio of 4:1. We offer the following types of this Recom series: R2M-1205S, R2M-2405S, R2M-2412D, R2M-2412S and R2M-2415D. single (R2M-_S) and dual output (R2M-_D) output: 2W output tolerance: ±1% withstand voltage I/P-O/P: 1600V DC operating temperature: -40 to +85°C dimensions: 14,2x9,1x10,2mm weight: 2,7g

Specifications

manufacturer
Manufacturer's name R2M-2412S
Input voltage [V] 9...36
Output voltage [V] 12
Output current [mA] 167
Efficiency [%] 81
Ripple [mVp-p] 50
Data Sheet

Unit price

25,99 €

Stock: 20
Further delivery:
CW 06/2025
