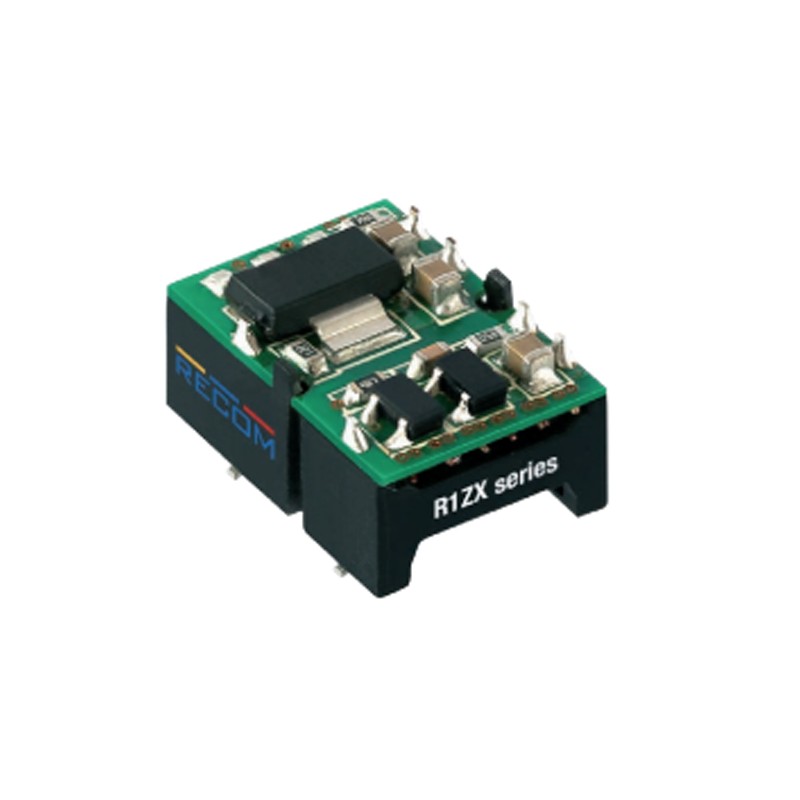

R1ZX-0505/HP-R

Recom DC/DC converter series R1ZX

These voltage converters in a SMD housing have a regulated single output with a current of 1W and they are suitable for direct PCB mounting. These devices are protected against short circuit (auto recovery) and they conforme with a bunch of safety classes (such as EN60950-1), as well as the EMV norms of EN55032 class A and B. e offer various types of this Recom series.

  • single output
  • output current: 2W
  • output voltage tolerance:±2%
  • maximal ripple quality: 100mVpp
  • isolation voltage (I/P-O/P): 1000V DC (R1ZX-__/P-_), 2000V DC (R1ZX-__/HP-_)
  • operating temperature: -40 to +65°C
  • dimensions: 15,24x11,10x8,5mm
  • weight: 1,6g

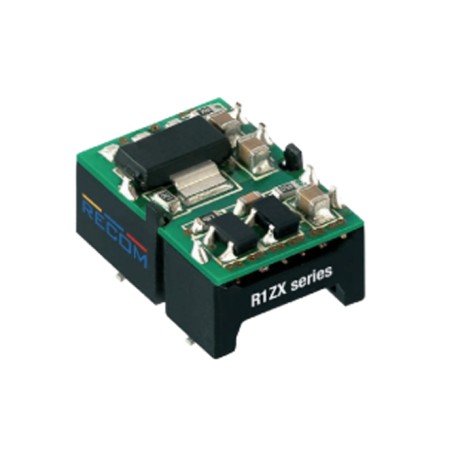

R1ZX-0505/HP-R, Recom DC/DC converters, 1W, SMD, R1ZX series

R1ZX-0505/HP-R

247061 R1ZX-0505/HP-R R1ZX-0505/HP-R Recom DC/DC converter series R1ZX. These voltage converters in a SMD housing have a regulated single output with a current of 1W and they are suitable for direct PCB mounting. These devices are protected against short circuit (auto recovery) and they conforme with a bunch of safety classes (such as EN60950-1), as well as the EMV norms of EN55032 class A and B. e offer various types of this Recom series. single output output current: 2W output voltage tolerance:±2% maximal ripple quality: 100mVpp isolation voltage (I/P-O/P): 1000V DC (R1ZX-__/P-_), 2000V DC (R1ZX-__/HP-_) operating temperature: -40 to +65°C dimensions: 15,24x11,10x8,5mm weight: 1,6g

Specifications

manufacturer
Manufacturer's name R1ZX-0505/HP-R
Output voltage [V] 5
Input voltage range [V] 5
Output current range [mA] 200
Efficiency [%] 68
Data Sheet

Unit price

8,89 €

Stock: 0
Further delivery:
CW 07/2025

Minimum order quantity 500 units or
multiples of 500.
